Method 4: preset mappings – Knox Video DIGI-88 User Manual
Page 16
~ 15 ~

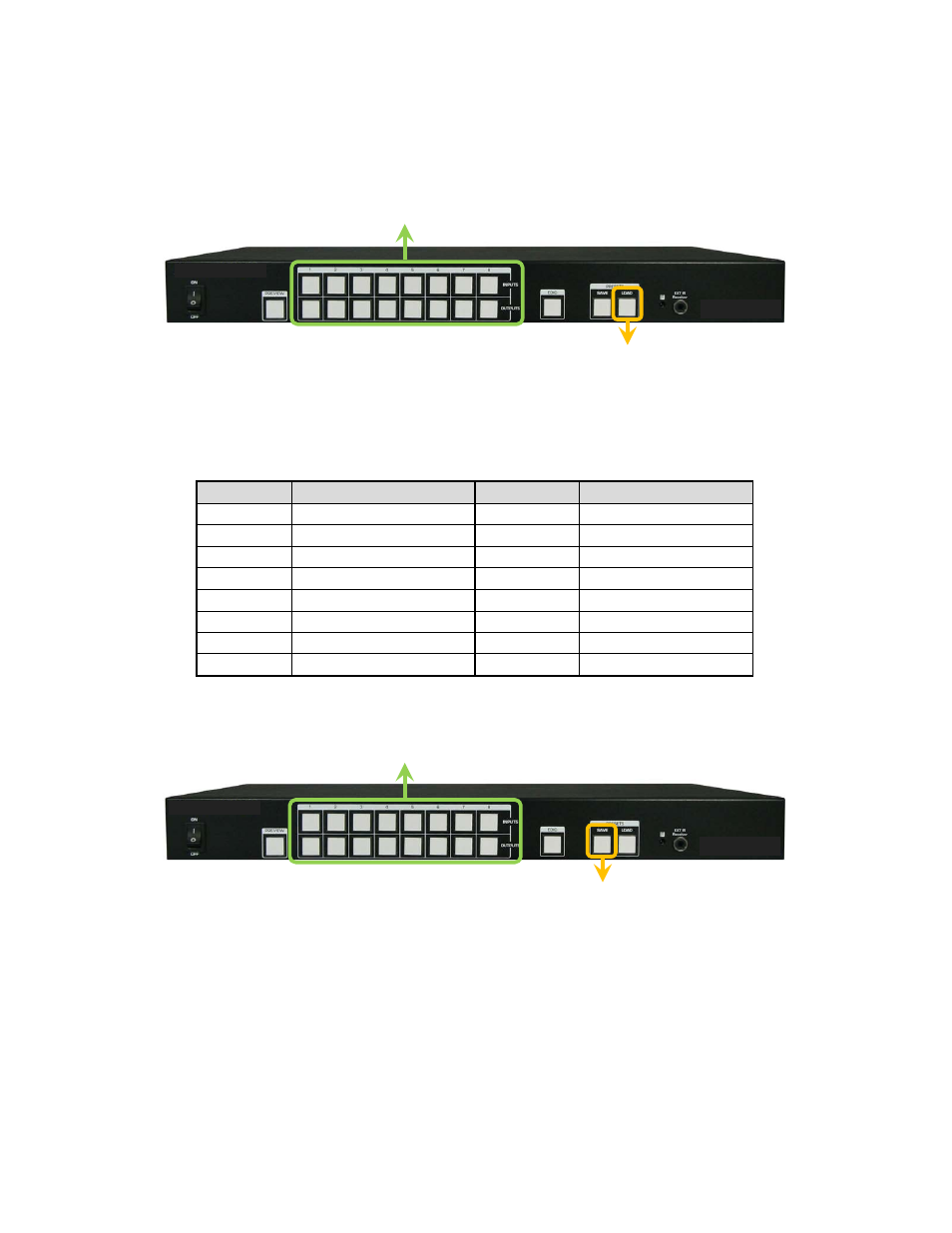

Method 4: Preset mappings
a. Load one of the presets
1. Press the LOAD button in the PRESETS menu on the front panel and the LED will turn on.
2. Select the preset profile number to load the corresponding mapping.
3. Press the LOAD button to execute the setting. After loading procedure, the LED will turn
off.
Input Port
Preset Profile Number
Output Port
Preset Profile Number
1
1
1
9
2
2
2
10
3
3
3
11
4
4
4
12
5
5
5
13
6
6
6
14
7
7
7
15
8
8
8
16
b. Save the current mapping configuration into presets
1. Press the SAVE button in the PRESETS menu on the front panel and the LED will turn on.
2. Select the preset profile number and save the current mapping profile to the memory.
3. Press the SAVE button to execute the setting. After loading procedure, the LED will turn
off.
Step 1 & 3
Step 2
Step 1 & 3
Step 2
