2 Installation
2.1 Package Contents
• One
FDVA4-DB1-M1T-WSC
Transmitter
• One FDVA4-DB1-M1R-WSC Receiver
• Two power supply adaptors
• Two
User
Manuals
Please contact dealer or distributor if part is missing or damaged.

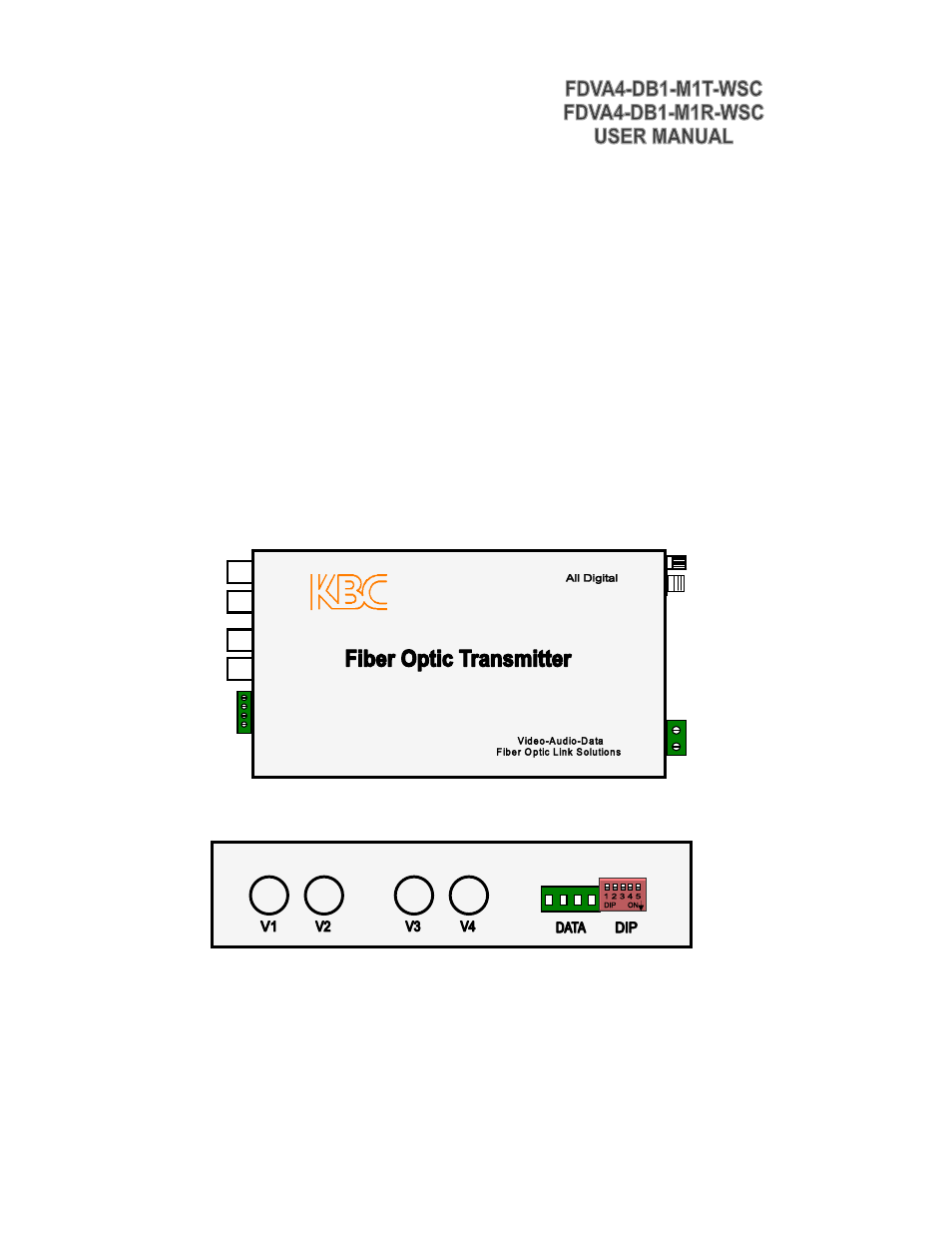

2.2 Transmitter Enclosure
Transmitter Top View
Transmitter Left View
Connectors:
V1: Channel 1 Video BNC, input
V2: Channel 2 Video BNC, input
V3: Channel 3 Video BNC, input
1 2 3 4
