The others are not used.

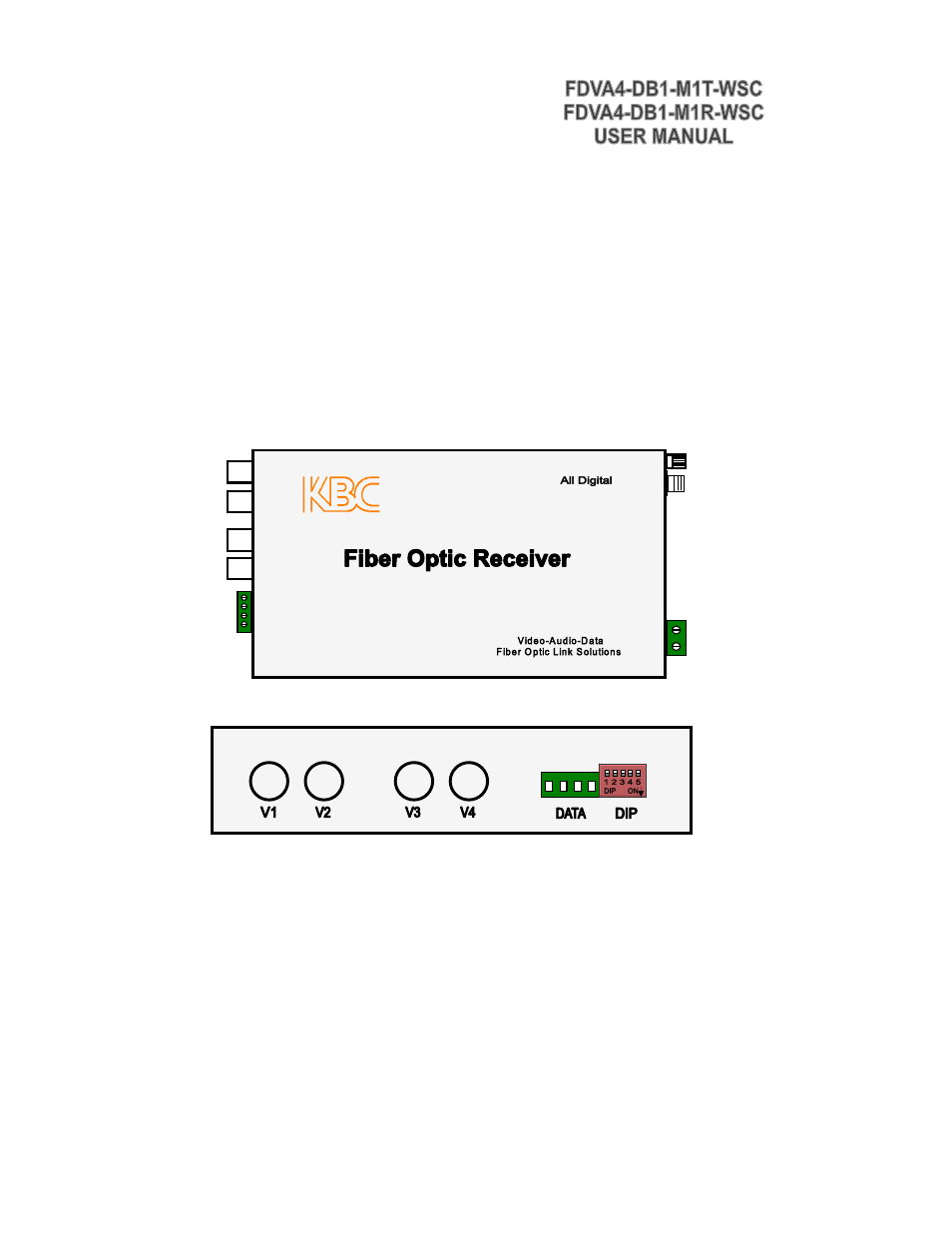

2.3 Receiver Enclosure
Receiver Top View
Receiver Left View
Connectors:
V1: Channel 1 Video BNC, output
V2: Channel 2 Video BNC, output
V3: Channel 3 Video BNC, output
V4: Channel 4 Video BNC, output
1 2 3 4
