Junger Audio D*AP LM2 / D*AP LM4 - Digital Audio Processor - Manual (Page 36)

32
D*AP LM 4

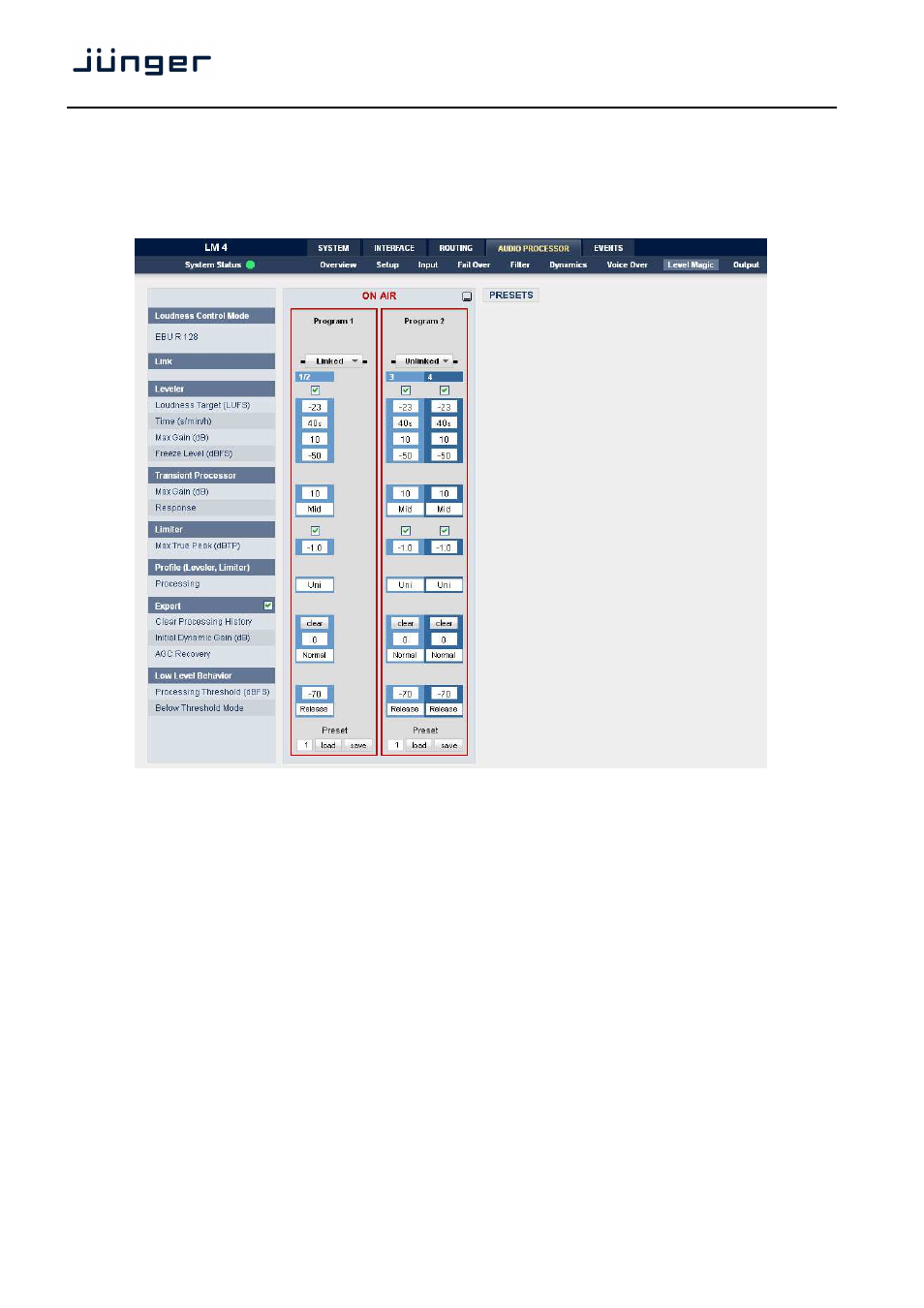

Web GUI – AUDIO PROCESSOR – Level Magic
Level Magic – Is the proprietary Jünger algorithm used to maintain a constant output loudness irrespective of
the incoming audio levels.
Loudness Control Mode [EBU R 128 / Level / ITU-BS.1770-1 (A/85 2011) / -2 / 3]
Display of the pre selected mode see :
AUDIO PROCESSOR > Setup
Link [Linked / Unlinked]
Note - the limiter an d the leveler link are coupled. From the front
panel you may set it in either function block!
Leveler [enable / disable]
turns off Transient Processor as well.
Loudness Target
Level mode [0 … -50dBFS]
ITU mode [0 … -50LKFS]
EBU mode [0 … -50LUFS]
Time (s/min/h) [10, 20, 40 / 1, 2, 5, 10, 20, 40 / 1, 2]
Max Gain (dB) [0 … 40]
Freeze Level (dBFS) [-20 … -60]
