INSTALLATION NOTE:
Refrigeration system is designed so that air will flow under the unit, through the compressor
area and out the front of the unit. Any restriction to this air flow path will void the warranties.
Specifications
Model
# of
Shelves
Shelf
Area
Volume H.P. V/Hz/Ph Amps
Nema
Plug
Ship Weight
Energy
(KWH/Day)
ST4560N 2 7.19ft 2 16.90ft 3 1/3 115/60/1 12.0 5-15P 411lbs/186kg 7.40

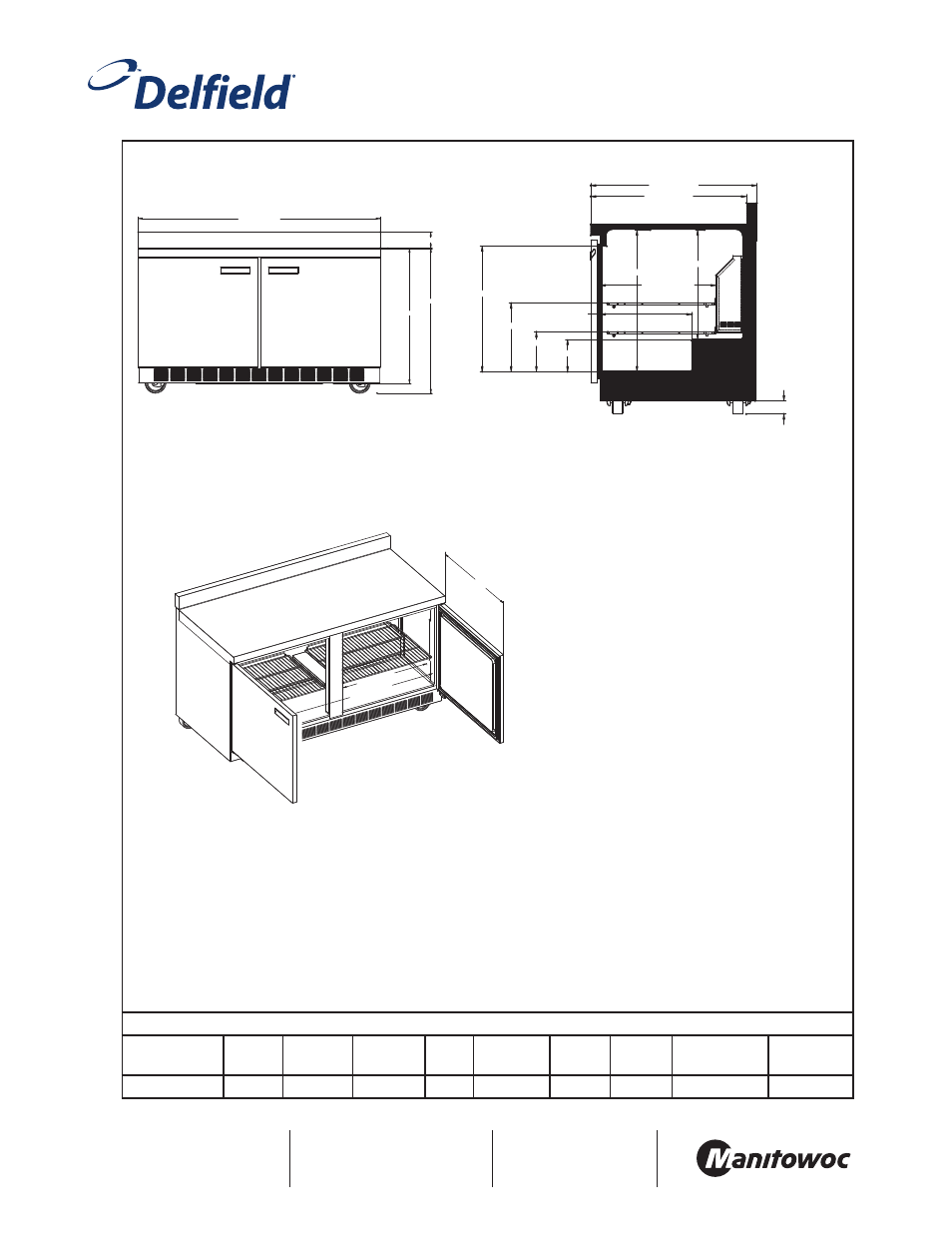

ST4560N ISO View
ST4560N Elevation View ST4560N Right Side View
ALT. SHELF
SHELF
31.50" [80.00]
29.55 [75.10]
2.50" [6.30]
30.66" [77.88]
TO EDGE OF DOOR
NOSE OF UNIT
33.59" [85.31]
36.00" [91.40]
4.00" [10.20]
INTERIOR DIMENSION
55.75" [141.61]
DOOR WIDTH DIMENSION
25.94" [65.89]
60.13" [152.72]
21.94" [55.73]
26.86" [68.22]
20.75" [52.70]
6.11" [15.52]
7.53" [19.10]
12.98" [33.00]
17.35" [44.08]
23.79" [60.43]
ALT. SHELF
SHELF
31.50" [80.00]
29.55 [75.10]
2.50" [6.30]
30.66" [77.88]
TO EDGE OF DOOR
NOSE OF UNIT
33.59" [85.31]
36.00" [91.40]
4.00" [10.20]
INTERIOR DIMENSION
55.75" [141.61]
DOOR
WIDTH DIMENSION
25.94" [65.89]
60.13" [152.72]
21.94" [55.73]
26.86" [68.22]
20.75" [52.70]
6.11" [15.52]
7.53" [19.10]
12.98" [33.00]
17.35" [44.08]
23.79" [60.43] ALT. SHELF
SHELF
31.50" [80.00]
29.55 [75.10]
2.50" [6.30]
30.66" [77.88]
TO EDGE OF DOOR
NOSE OF UNIT
33.59" [85.31]
36.00" [91.40]
4.00" [10.20]
INTERIOR DIMENSION
55.75" [141.61]
DOOR
WIDTH DIMENSION
25.94" [65.89]
60.13" [152.72]
21.94" [55.73]
26.86" [68.22]
20.75" [52.70]
6.11" [15.52]
7.53" [19.10]
12.98" [33.00]
17.35" [44.08]
23.79" [60.43]
