DES-2218 Ethernet Switch User’s Guide
Cables and Connectors
61
MII Connector Pin Assignment
Contact MII Signal Signal Name Contact MII Signal Signal Name
19 CRS Carry Sense 39 --- Ground
20 +5 V Voltage 40 +5 V Voltage

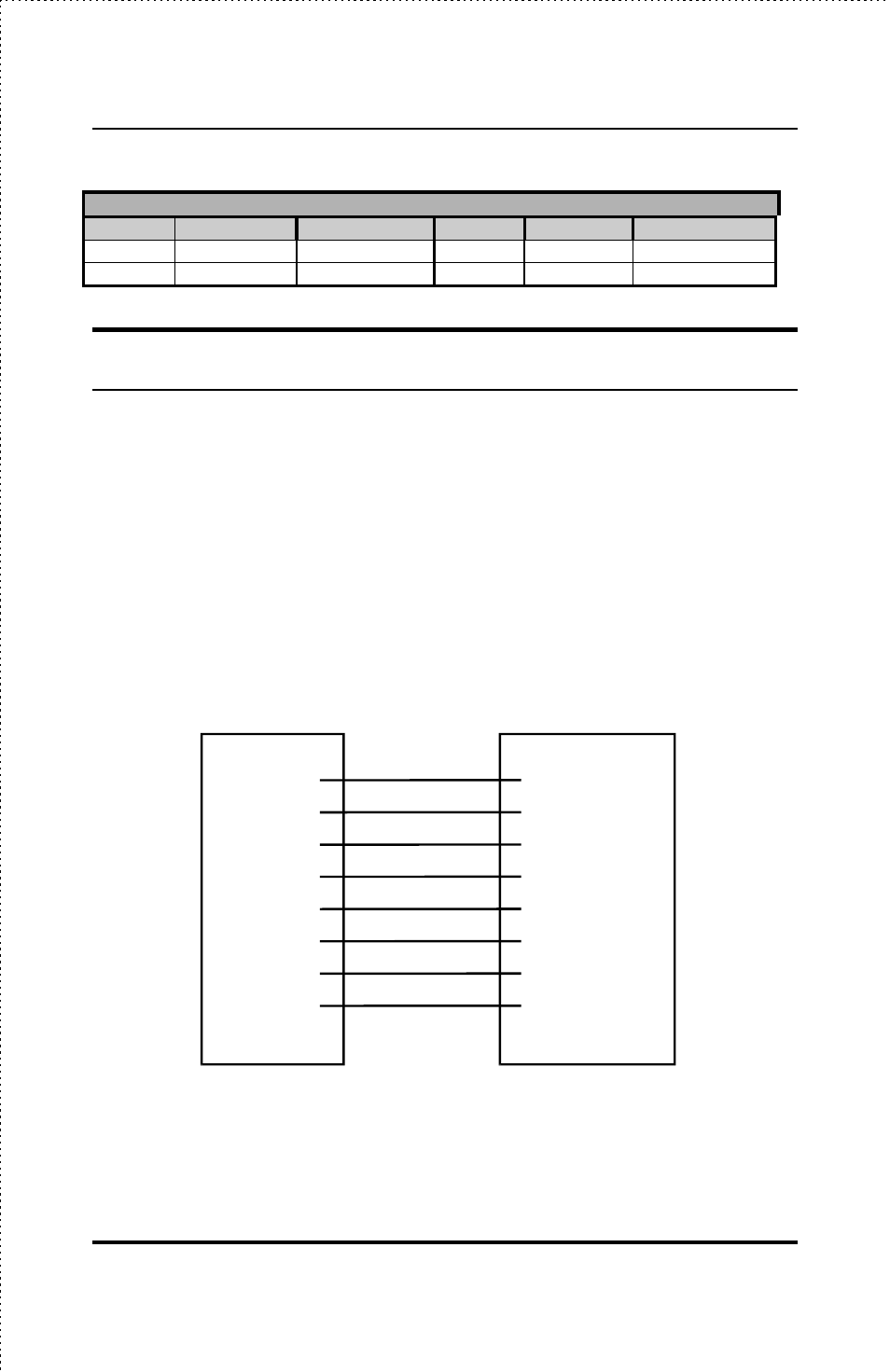

RS-232 (DB9) Pin Specification
The RS-232 serial port of the switch uses a 9-pin female connector. The port
can be connected to a VT-100 type terminal, a PC, or a workstation
emulating a VT-100 terminal. The connection can be either local, or remote
through a modem. For a remote connection, a modem cable with a 9-pin
male connector on the switch side is needed. The figures below show the
connections necessary for local and remote connection to 9-pin and 25-pin
RS-232 devices.
Te rm in a l/P C S e ria l P o rt
(D T E , D B -9 )
C o n s o le P o rt
(D C E , D B -9 )
- (9 )
R X D (2 )
T xD (3 )
D T R (4 )
S G (5 )
D S R (6 )
R T S (7 )
C T S (8 )
D C D (1 )
- (9 )
R X D (2 )
T xD (3 )
D T R (4 )
S G (5 )
D S R (6 )
R T S (7 )
C T S (8 )
D C D (1 )
Local Connection to 9-Pin Serial Port
