www.desatech.com 118994-01G 7

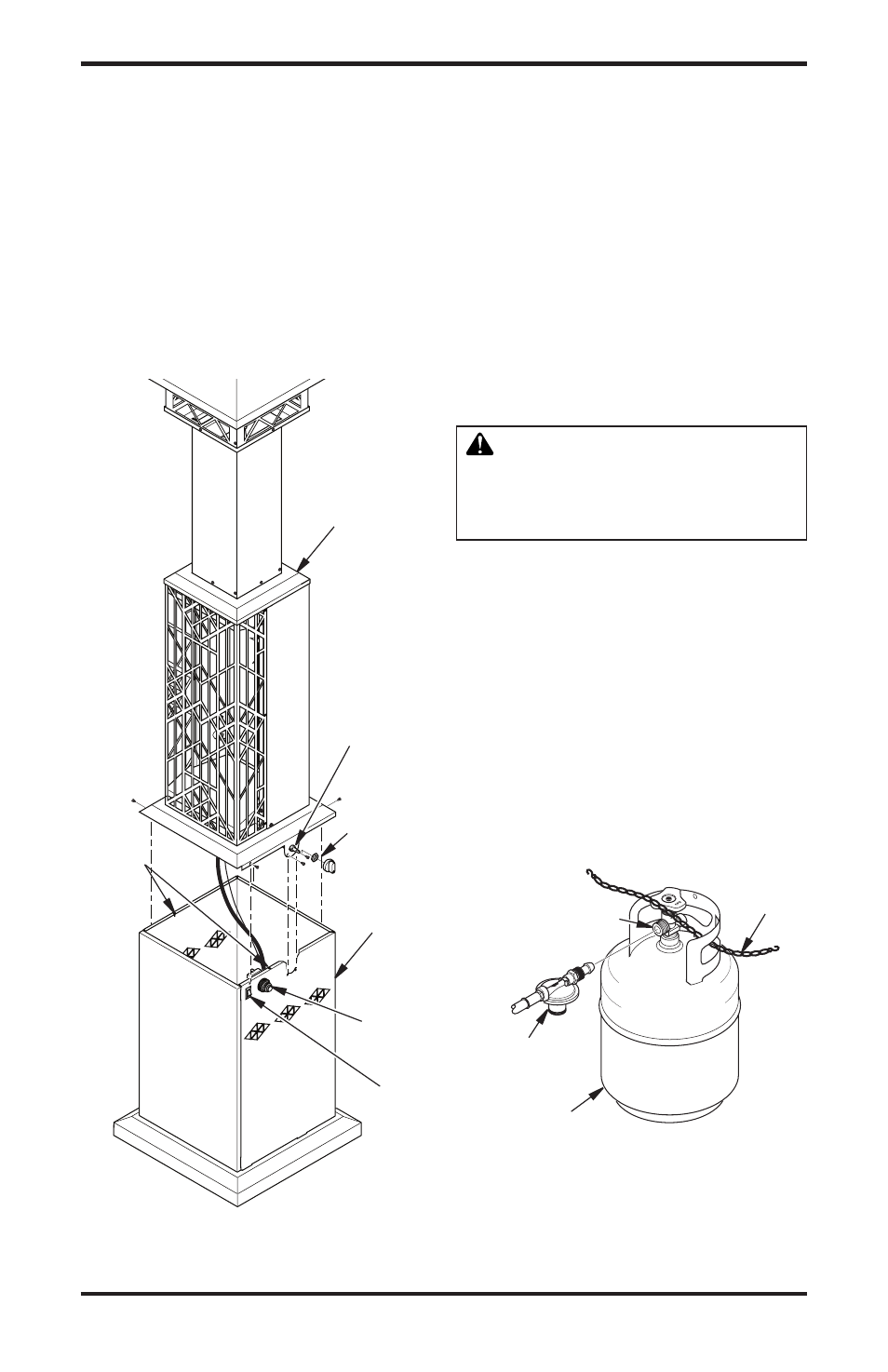

Figure 9 - Connecting Hose/Regulator
Assembly to Propane/LP Cylinder
0 lb.
Propane/LP
Cylinder
Hose/Regulator
Assembly
OPERATION
CAUTION: Do not stand in
front of heater while lighting.
Stand at the side when lighting
the heater.
Use only a 0 lb. propane/LP cylinder (not
included). See safety information for proper
cylinder selection. Connect the hose/regula-
tor assembly to the cylinder (see Figure 9).
The hose should already be connected to the
heater. Connect hose to the valve inlet (see
Figure 9). Tighten firmly using a wrench.
Route retention chain through at least one
of the handles of the propane/LP tank (see
Figure 9). Make sure to route chain through
handle on tank and NOT around tank valve.
Chain must not interfere with valve. Attach
hooks on both ends of chains to chain retain-
ers installed on cabinet base (see Figure 8).
Figure 8 - Attaching Lightpost/Burner
Assembly to Cabinet Assembly
Lightpost/
Burner
Assembly
Cabinet
Assembly
Control
Valve Nut
and Control
Knob
ON/OFF
Switch
Ignitor
3. Connect white ground wire attached to
cabinet to right post on electronic ignitor.
Remove wire tie. Connect black ignitor
wire to left post on electronic ignitor. Install
battery in ignitor as shown on page 1.
4. Install batteries in battery holder as shown
on page 1. Do not mix batteries.
5. Connect regulator to gas cylinder, see
Operation. Gas cylinder will sit inside of
cabinet assembly.
6. Check for leaks. See Checking for Leaks
page 8.
7. Attach fourth lightpost panel to assembly with
6 screws (H) as shown in Figure 7, page 6.
Retention
Chain
ASSEMbLy
Continued
HEATER ASSEMBLY
Note: If needed, acquire assistance lifting
assembly.
1. Place entire lightpost assembly on top
of cabinet base assembly. Attach with 4
screws (H) as shown in Figure 8. Install
screws (H) into holes on each side of
control valve. Attach control valve nut and
control knob to control valve.
. Connect brown wires to ON/OFF switch.
Chain
Retainer
Control
Valve
Valve Inlet
