smartCUE Interfaces | User Manual | Wired Models
© CUE, a.s. All Rights Reserved. | www.cuesystem.com | [email protected]
smartCUE-one
Overview
The wired interface equipped with 10/100 BaseT LAN communication and Power over Ethernet power supply.
It offers following control ports
▪ 1x Bi-directional serial port RS-232
▪ 8x Digital I/O

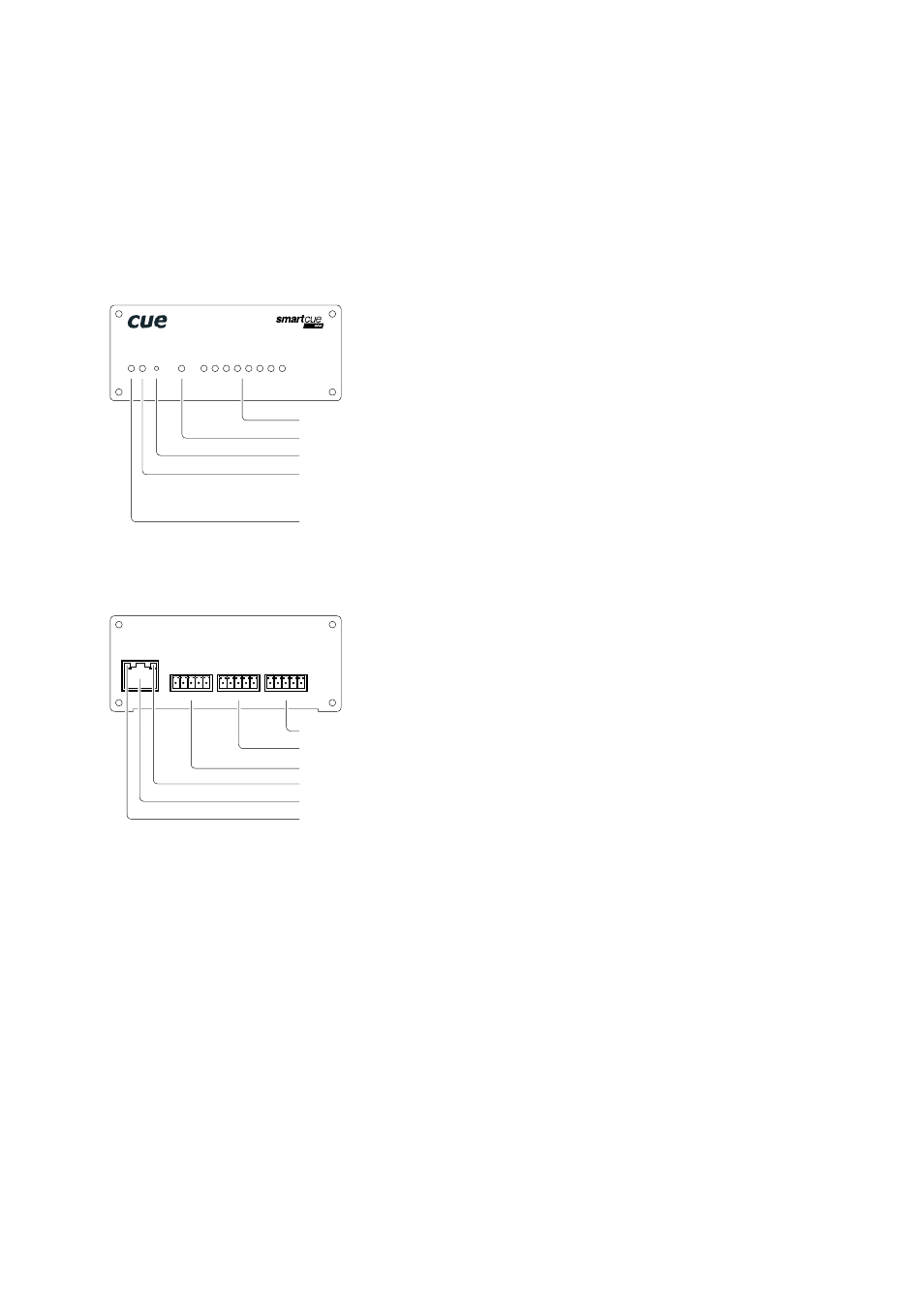

Front Panel
1
SERIAL
PWR LINK
F.
D.
1
2
3
4
DIGITAL I/O
6
7
8
5
Digital I/O 1 - 8 green indicators
Serial 1 green / red indicator
Button factory default
Ethernet green indicator
• Link
• Activity (active = no light)
Power blue indicator
Rear Panel
1 2 3 4 5
SERIAL
1
DIGITAL I/O
1 2 3 4 G
S S S S G
5 6 7 8 G
S S S S G
default IP address
192.168.1.254
LAN (PoE)
Ethernet activity yellow indicator
Ethernet link green indicator
Digital I/O 5 - 8, common gnd
Bi-directional serial port 1 RS-232
Ethernet with PoE
Digital I/O 1 - 4, common gnd
