FS-97A User’s Manual Hardware Setup

Watchdog Timer Setting

2.6

The watchdog timer makes the system auto-reset while it stops to work for a period. The

integrated watchdog timer can be setup as system reset mode by program.

Timeout Value Range
- 1 to 255
- Second or Minute

Program Sample
Watchdog timer setup as system reset with 5 second of timeout

2E, 87

2E, 07

2F, 08

Logical Device 8

2E, 30

Activate

2F, 01

2E, F5

Set as Second*

2F, 00

2E, F6

Set as 5

2F, 05

* Minute: bit 3 = 0; Second: bit 3 = 1

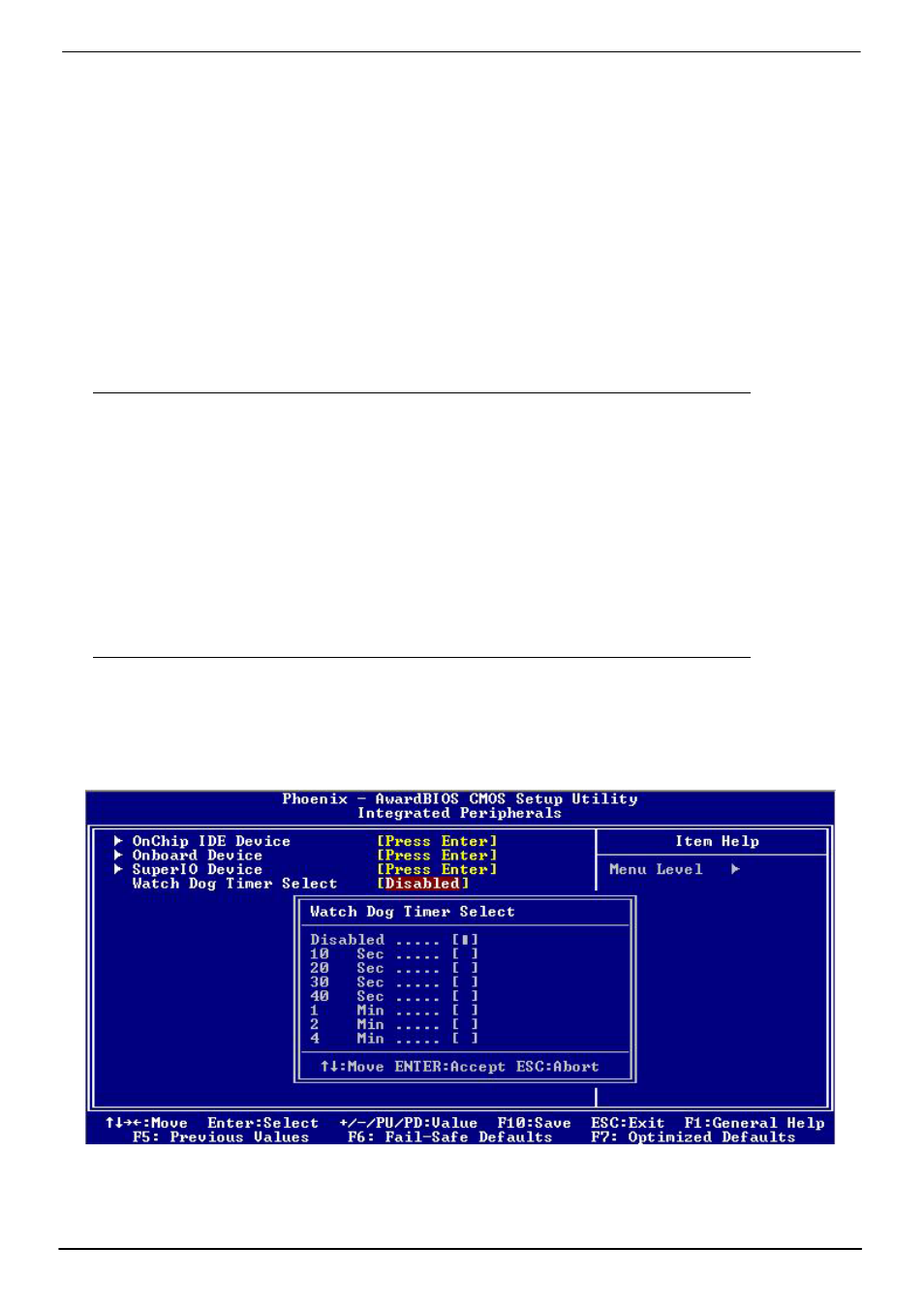

You can select Timer setting in the BIOS, after setting the time options, the system will reset

according to the period of your selection.

For more specification of watchdog timer program, please check appendix document.
