2.1.- REC 3C 2 poles
RCCB
CONTROL
MODULE
LED
MODE SELECTION
SWITCH
PROTECTION
COVER
POWER SUPPLY
COVER
MEASURING
COVER
-25
AUTO
POWER
230V 50Hz
5VA
~;
REC
EN 50557
REC 3C
ON OFF
230V 0,13A ~ ~
AUX TRIP
5 4 3 2 1
OUTPUT

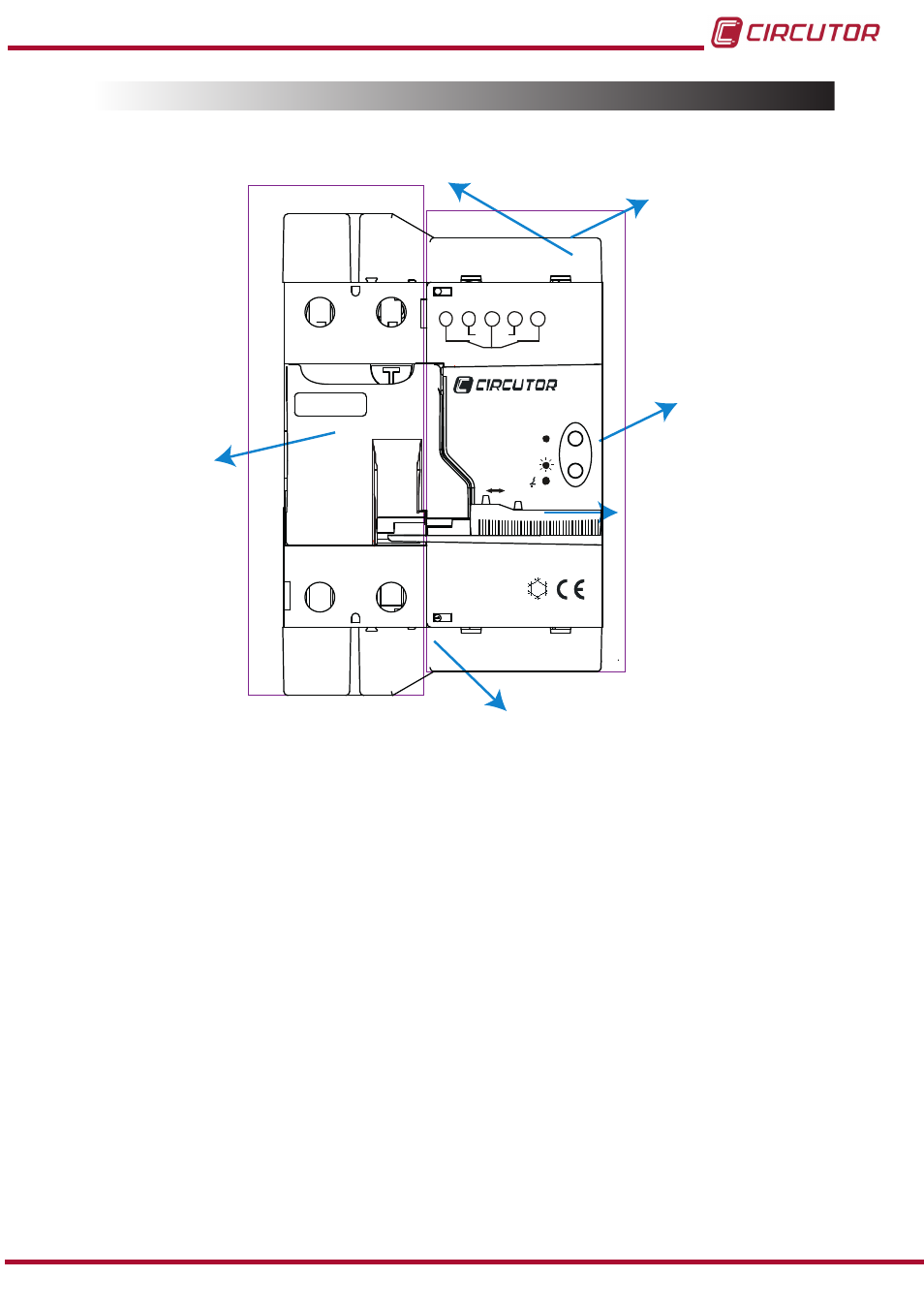

Figure 1: Description of the REC 3C 2 poles�
The unit features ( Figure 1):
- 2 LEDs that indicate the status of the REC 3C.
- Protection cover for the reclosing system.
- Mode selection switch to select between Manual and Automatic operating mode
and physically lock the reclosing device.
- 2 outputs to indicate the RCCB status and that reclosing sequence has finished.
The power supply and measuring connections between the control module and the RCCB are
cabled; the unit comes with 2 covers for these connections.
