1.7.- Data presentation

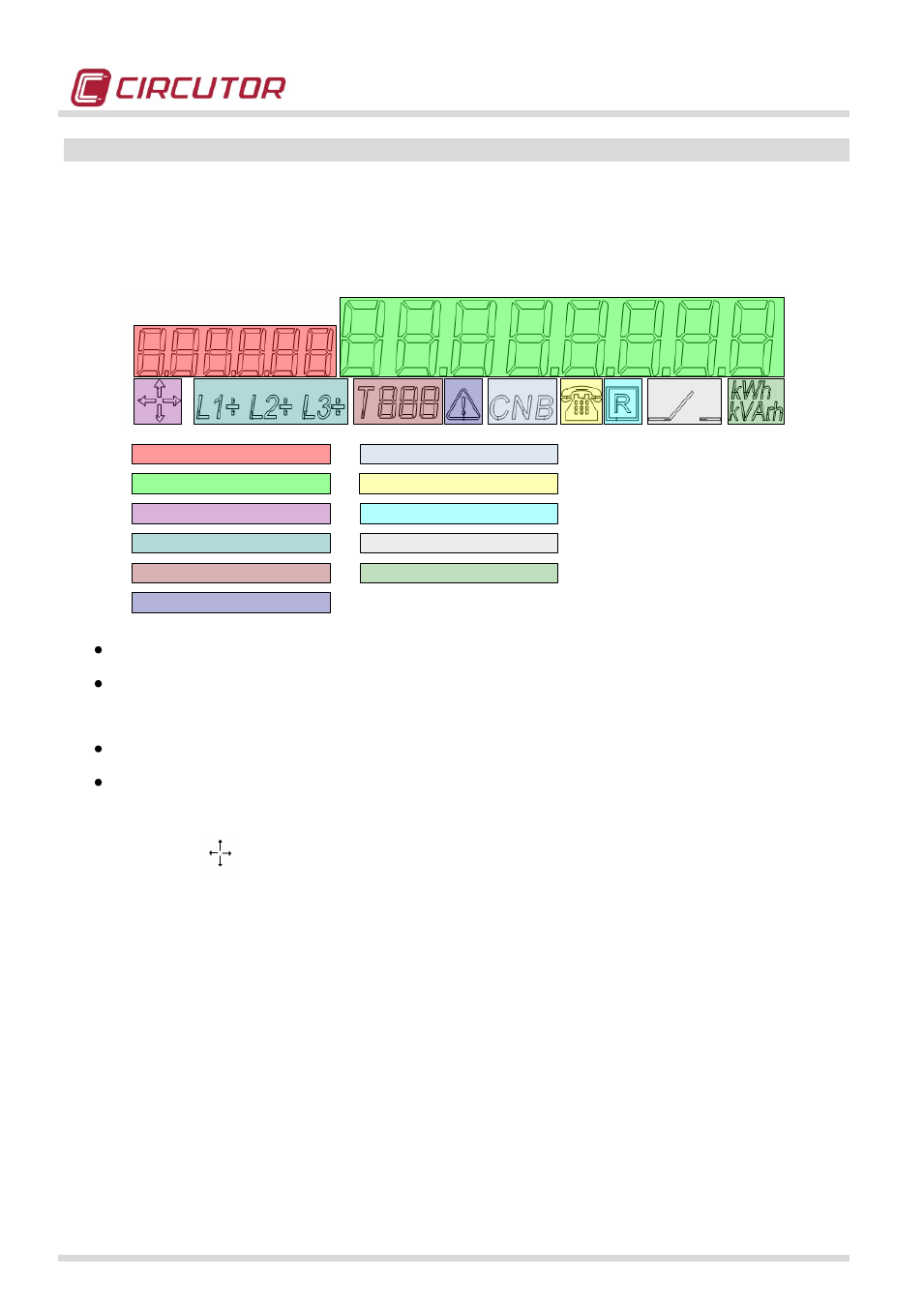

Data is presented using an LCD screen specially designed for this application, where all
information can be viewed, such as: energy measurements, electrical parameters, status
indicators, etc.
Code line
Value
Quadrant
Volatage presence/Current direction
Active tariff
Alarm
Alarm description
Communications
Reactive
Breaker element
Units
Code line. Shows the code for the variable being displayed on the data line.
Data line. Area where information about the electrical parameters, the meter, etc. is
displayed.
Units. Unit of the value that is being displayed.
Indicators. The meter uses the second line of each screen's display to show the
indicators. The display format is presented as follows:
 , the active quadrant (Q1,Q2,Q3,Q4)
 L1+L2+L3+, indicates the presence of electrical current in each phase, along
with the corresponding flow direction:
- “+”, is used to show the power absorbed from the network.
- “–“, is used to show the power yielded to the network.
-
“ “, the absence of any symbol is used to indicate that there is no load.
 PX , indicates the active period at any given moment.
