DVR User Manual
17

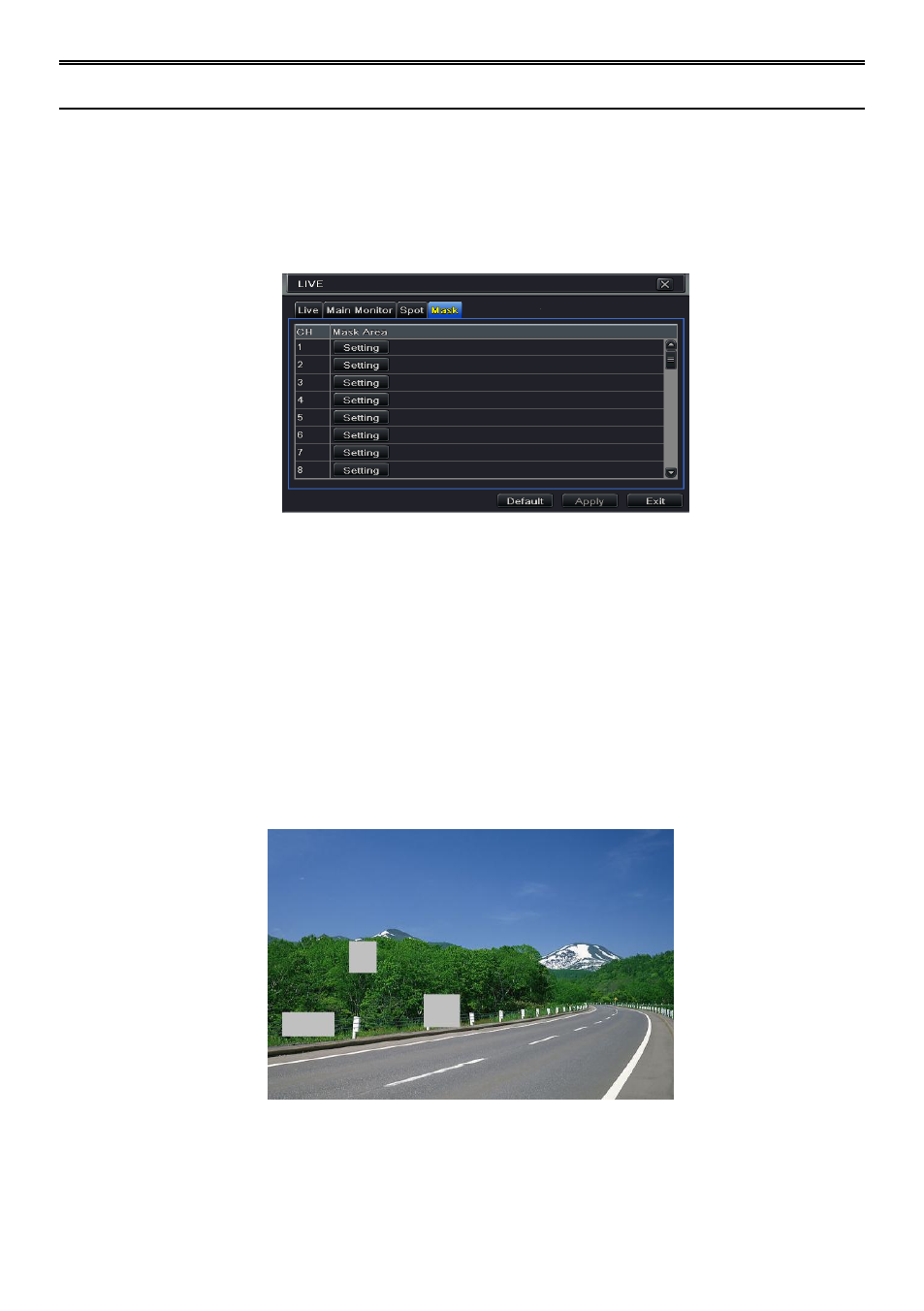

4.2.4 Mask
If there is something you don‟t want to display in the live image. You can set mask. For a
given channel a maximum of three areas can be masked.
To setup mask area:
Step 1: Enter into MenuSetupLive Mask interface.
Fig 4-10 Live Configuration-Mask
Step 2: Click Setting button to go into live image.
Step 3: Press and drag the left mouse button to set mask area as shown below.
Step 4: Right click to exit the mask setting interface.
Step 5: Click Apply button to save the setting.
To delete mask area
Step 1: Click Setting button in the mask interface.
Step 2: Select a certain masked area and double click to delete that masked area.
Step 3: Then click Apply button to save the setting.
Setup Mask Area
4.3 Record Configuration
Record configuration includes six sub menus: enable, record bit rate, time, recycle record,
