READING FEATURES
4
DS6XXX with GFX-60 - Resolution: 0.50 mm/20 mils

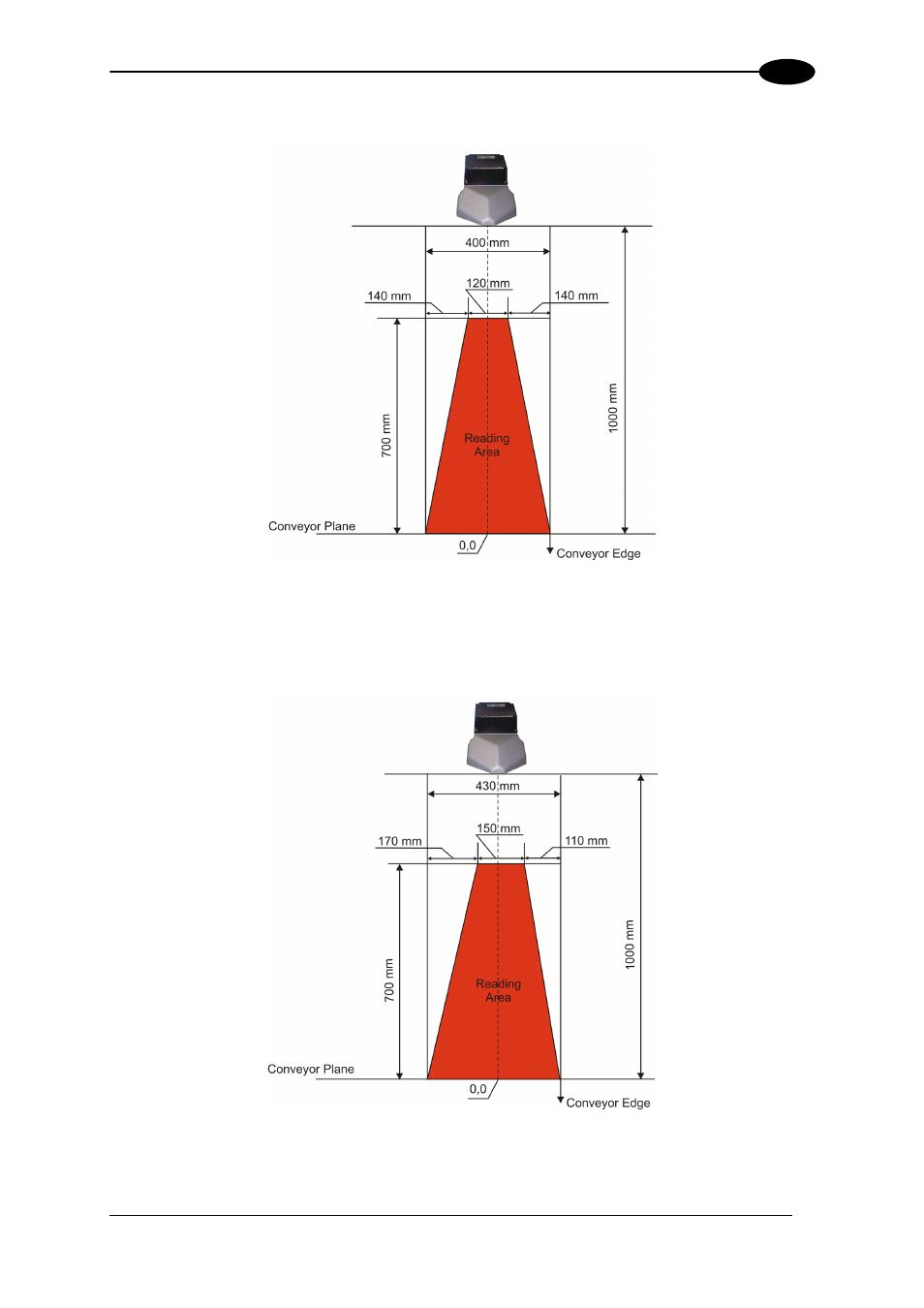

Figure 88 - GFX-60 0.50 mm / 20 mils Reading Diagram
Note: 0 value on the X axis is measured from the nose of the GFX-60
0 value on the Y axis is measured from the conveyor plane
focus position = 100
DS6XXX with GFX-60 - Resolution: 1.00 mm/40 mils
Figure 89 - GFX-60 1.00 mm / 40 mils Reading Diagram
Note: 0 value on the X axis is measured from the nose of the GFX-60
0 value on the Y axis is measured from the conveyor plane
focus position = 100
