1-63
Seat, seatbelt and SRS airbags
– CONTINUED –

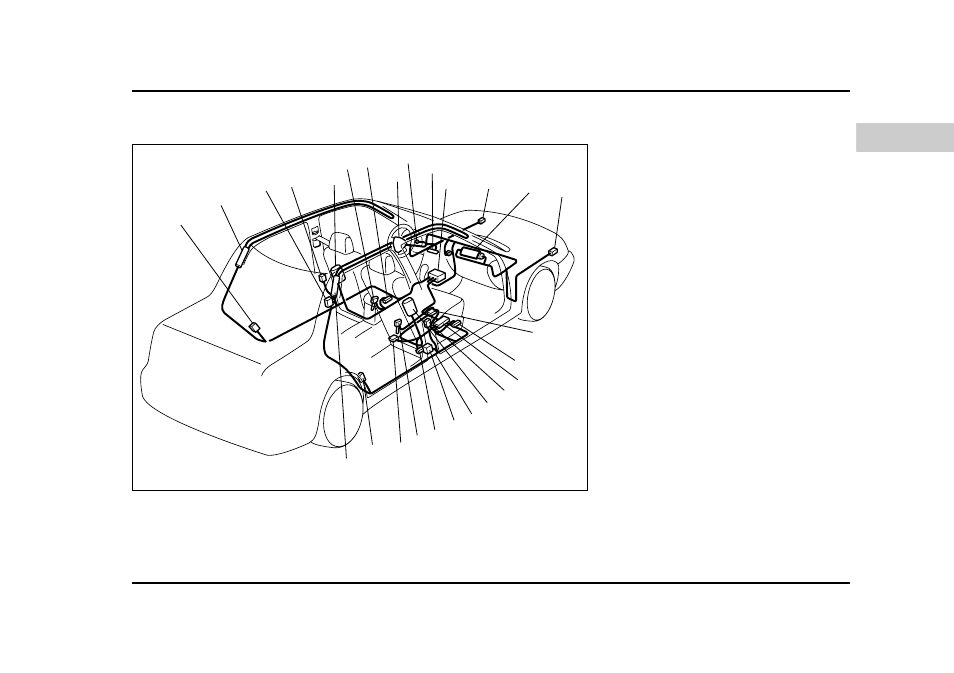

! Components
Sedan
1
2
3
4
5
6
18 19
23
22
8
11
13
20
17
20
12
10
7
9
21
20
20
14
16
15
UB1219BB
1) Airbag control module (including im-
pact sensors)
2) Frontal airbag module (driver’s side)
3) Frontal airbag module (front pas-
senger’s side)
4) Front sub sensor (left hand side)
5) Front sub sensor (right hand side)
6) Side airbag module (driver’s side)
7) Side airbag module (front passen-
ger’s side)
8) Side airbag sensor (center pillar left
hand side)
9) Side airbag sensor (center pillar
right hand side)
10) Airbag wiring (yellow)
11) Seatbelt pretensioner (driver’s side)
12) Seatbelt pretensioner (front passen-
ger’s side)
13) Side airbag sensor (rear wheel
house right hand side)
14) Side airbag sensor (rear wheel
house left hand side)
15) Curtain airbag module (right side)
16) Curtain airbag module (left side)
17) Seatbelt buckle switch (driver’s
side)
18) Seatbelt buckle switch (front pas-
senger’s side)
19) Driver’s seat position sensor
20) Front passenger’s occupant detec-
tion system weight sensor
21) Front passenger’s occupant detec-
tion control module
22) Front passenger’s frontal airbag ON
and OFF indicator
23) SRS airbag system warning light
