41
ENGLISH

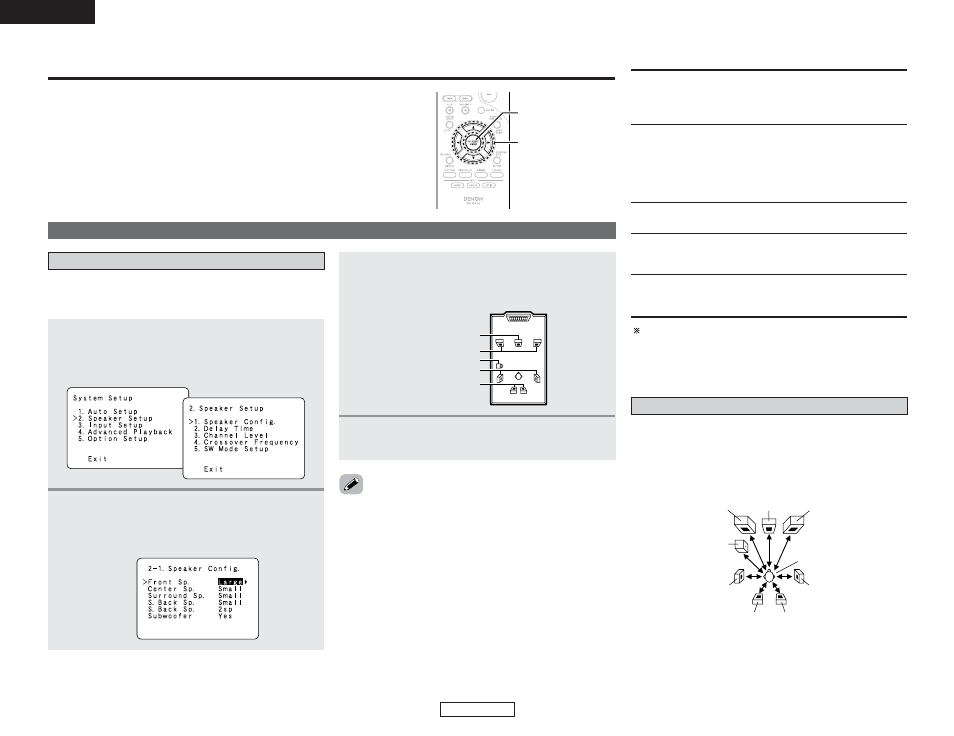

Advanced Setup – Part 2
ENGLISH
This Speaker Setup section describes the procedures to make
speaker settings manually (without using the Auto Setup
function), as well as to make manual changes to settings that
have already been made by the Auto Setup function.
CURSOR
ENTER
Advanced Setup – Part 2
1 Press the CURSOR D D or H H button to select
“Speaker Setup” at the “System Setup” menu,
then press the
ENTER button.
• The “Speaker Setup” screen appears.
Setting the Speaker Config.
Speaker Setup
The composition of the signals output to each channel and the
frequency response are adjusted automatically according to the
combination of speakers actually being used.
2 Press the CURSOR D D or H H button to select
“Speaker Config.”, then press the ENTER
button.
• The “Speaker Config.” screen appears.
3 Press the CURSOR D D or H H button to select a
speaker, then press the CURSOR F F or G G button
to select a parameter.
Center Sp.
Front Sp.
Subwoofer
Surround Sp.
Surround back Sp.
4
Press the ENTER button to enter the setting.
• The “Speaker Setup” menu appears.
• Select “Large” or “Small” not according to the actual size of
the speaker but according to the speaker’s capacity for playing
low frequency (bass sound below the frequency set for the
Crossover Frequency) signals. If you are unsure, try comparing
the sound at both settings (setting the volume to a level low
enough so as not to damage the speakers) to determine the
proper setting.
2 Parameters
Large:
Select this when using speakers that have sufficient ability to
reproduce bass sound below the frequency set for the
crossover frequency mode.
Yes / No:
Select “Yes” when a subwoofer is installed, “No” when a
subwoofer is not installed.
Small:
Select this when using speakers that do not have sufficient
ability to reproduce bass sound below the frequency set for the
crossover frequency mode. When this is set, bass sound with
a frequency below the frequency set for the crossover
frequency mode is sent to the subwoofer.
None:
Select this when no speakers are installed.
2sp / 1sp:
Set the number of speakers to be used for the surround back
channel.
If the subwoofer has sufficient low frequency playback
capacity, good sound can be achieved even when “Small” is
set for the front, center and surround speakers.
Setting the Delay Time
Input the distance between the listening position and each
speaker to set the delay time for the surround playback.
Center FR FL
Subwoofer
Listening position
SL SR
SBL SBR
Preparations:
Measure the distances between the listening position and the
speakers.
