ENGLISH
ENGLISH

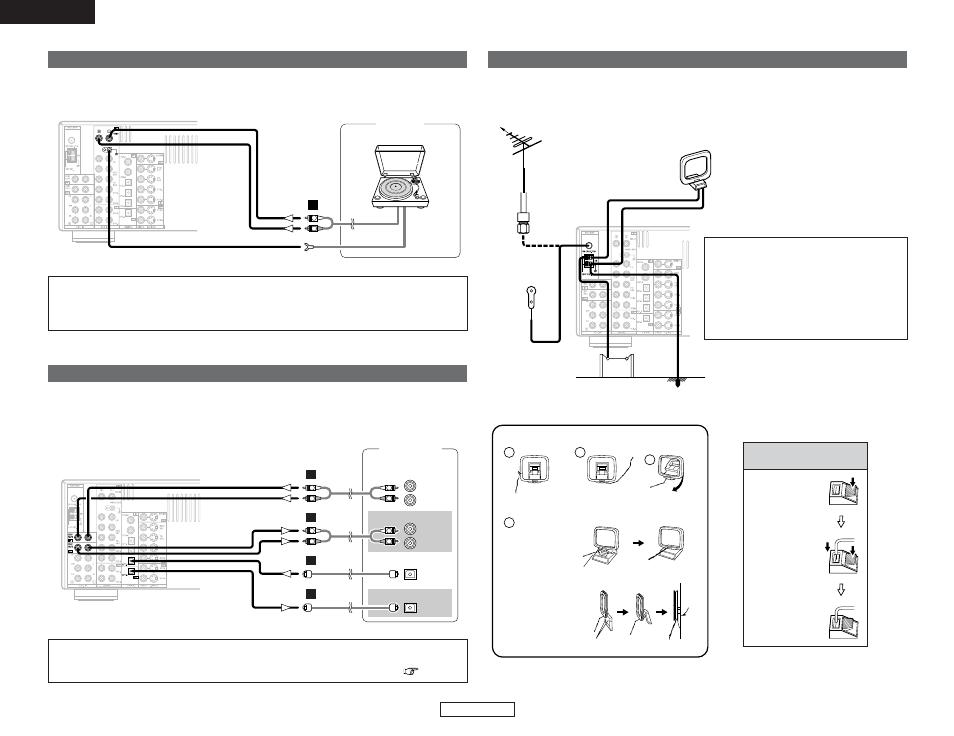

Connecting Other Sources Connecting Other Sources
15
Connecting a turntable
AUDIO OUT
GND
Turntable
(MM cartridge)
R
L
A
If humming or other noise is generated when the ground wire is connected, disconnect the ground
wire.
NOTE:
• The phono input can accept signals from moving magnet (MM) and high output moving coil
(MC) phono cartridges. If your turntable is equipped with a low output MC cartridge, you will
need to use a separate MC head amplifier or step-up MC transformer.
Connecting a CD recorder or MD recorder
R
L
AUDIO IN
R
L
AUDIO OUT
CD recorder /
MD recorder
OPTICAL
OUT
OPTICAL
IN
R
L
R
L
A
R
L
R
L
A
D
D
If you wish to perform analog dubbing from a digital source, such as a CD or MD recorder to an
analog recorder such as a tape deck, you will need to connect the analog inputs and outputs as
shown below, in addition to the digital audio connections.
Direction of broadcasting
station
75 Ω /ohm
COAXIAL
cable
FM antenna
FM indoor
antenna
(Supplied)
AM loop antenna
(Supplied)
AM outdoor antenna Ground
1
4
2
3
2 AM loop antenna assembly
Connect to the AM
antenna terminals.
Remove the vinyl tie
and take out the
connection line.
Bend in the reverse
direction.
a. Antenna placed on
a stable surface.
b. Hanging the
antenna on a wall.
Mount
Use the
installation hole to secure the antenna to a wall, etc.
Connection of
AM antennas
1. Push the lever.
2. Insert the
conductor.
3. Return the lever.
NOTE:
• Do not connect two FM antennas
simultaneously.
• Even if an external AM antenna is used, do
not disconnect the AM loop antenna.
• Make sure the AM loop antenna lead
terminals do not touch metal parts of the
panel.
An F-type FM antenna cable plug can be connected directly to the unit.
Connecting the antenna terminals
NOTE:
• Do not connect the output of the component connected to the OPTICAL 3 OUT terminal on
the AVR-2106’s rear panel to any terminal other than the OPTICAL 3 IN terminal ( page 36).
