ELECTRICAL CHARACTERISTICS CURVES

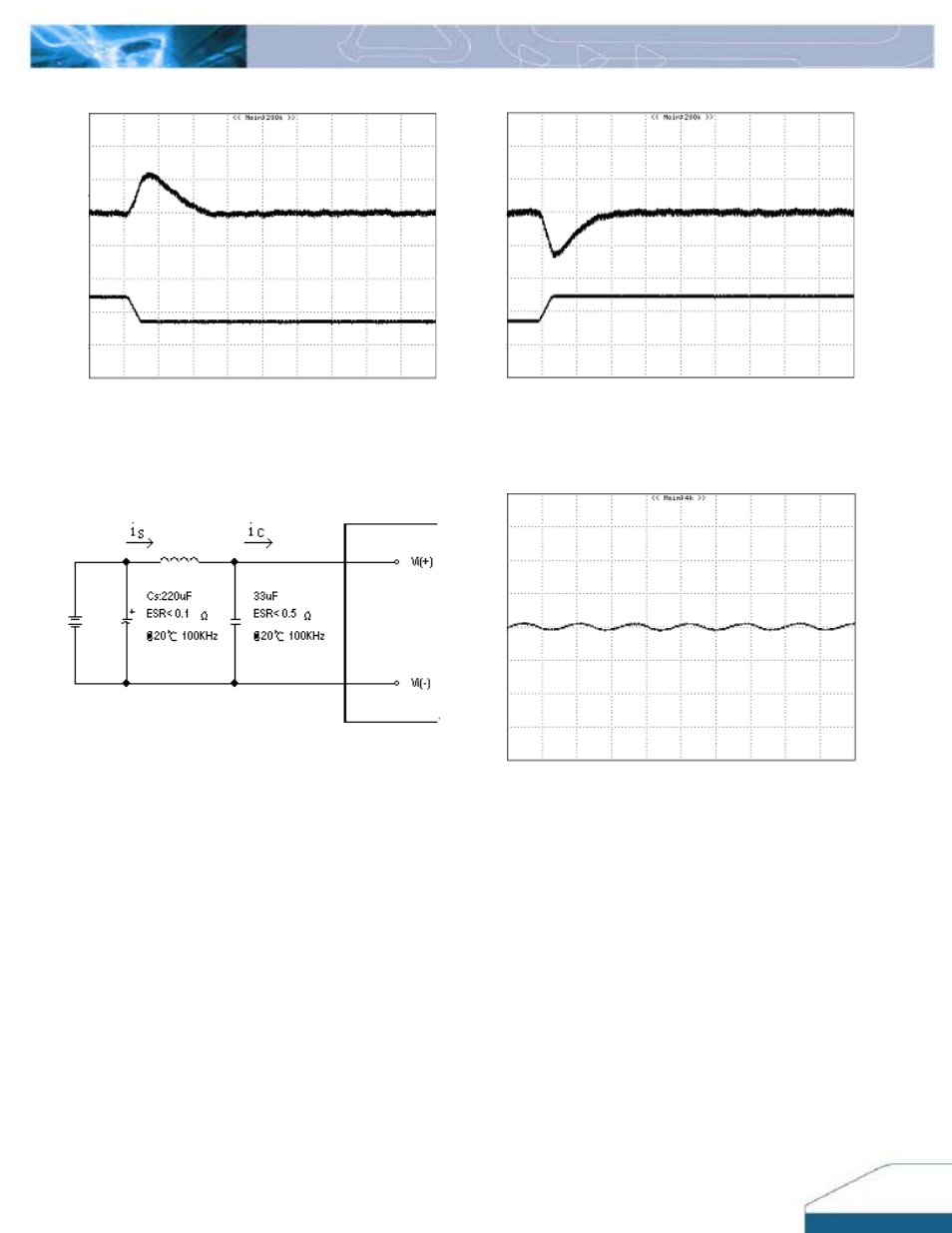

Figure 8: Output voltage response to step-change in load
current (50%-25% of Io, max; di/dt = 0.1A/µs). Load cap: 10µF,
tantalum capacitor and 1µF ceramic capacitor. Top Trace: Vout
(100mV/div, 200us/div), Bottom Trace: I out (5A/div).
DS_E36SR05015_01042008 5
Figure 9: Output voltage response to step-change in load
current (25%-50% of Io, max; di/dt = 0.1A/µs). Load cap: 10µF,
tantalum capacitor and 1µF ceramic capacitor. Top Trace: Vout
(100mV/div, 200us/div), Bottom Trace: I out (5A/div).
Figure 10: Test set-up diagram showing measurement points
for Input Terminal Ripple Current and Input Reflected Ripple
Current. Figure 11: Input Terminal Ripple Current, i
c
, at 48Vin and 15A
output current with 12µH source impedance and 33µF
electrolytic capacitor (500 mA/div, 2us/div).
