ELECTRICAL CHARACTERISTICS CURVES

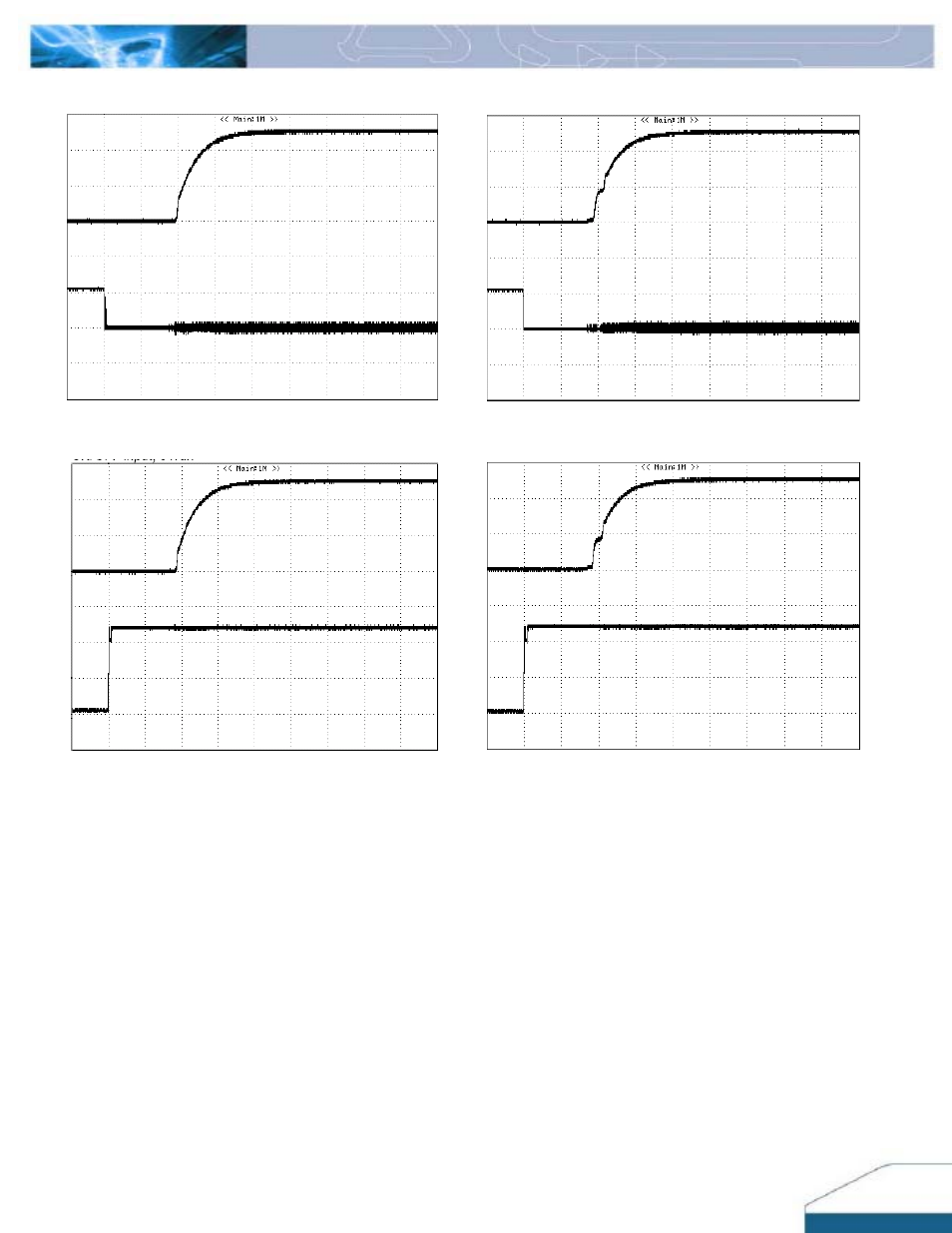

Figure 4: Turn-on transient at full rated load current (CC mode)
(5ms/div). Vin=48V.Top Trace: Vout, 2V/div; Bottom Trace:
ON/OFF input, 5V/div.
Figure
5:
Turn-on transient at zero load current (5ms/div).
Vin=48V.Top Trace: Vout, 2V/div; Bottom Trace: ON/OFF input,
5V/div.
Figure 6: Turn-on transient at full rated load current (CC mode)
(5ms/div). Vin=48V.Top Trace: Vout, 2V/div; Bottom Trace:
input voltage, 20V/div.
Figure
7:
Turn-on transient at zero load current (5ms/div).
Vin=48V.Top Trace: Vout, 2V/div; Bottom Trace: input voltage,
20V/div.
DS_E36SR05015_01042008
4
