Thermal considerations, Thermal curves, Thermal testing setup – Delta Electronics Series E36SR User Manual

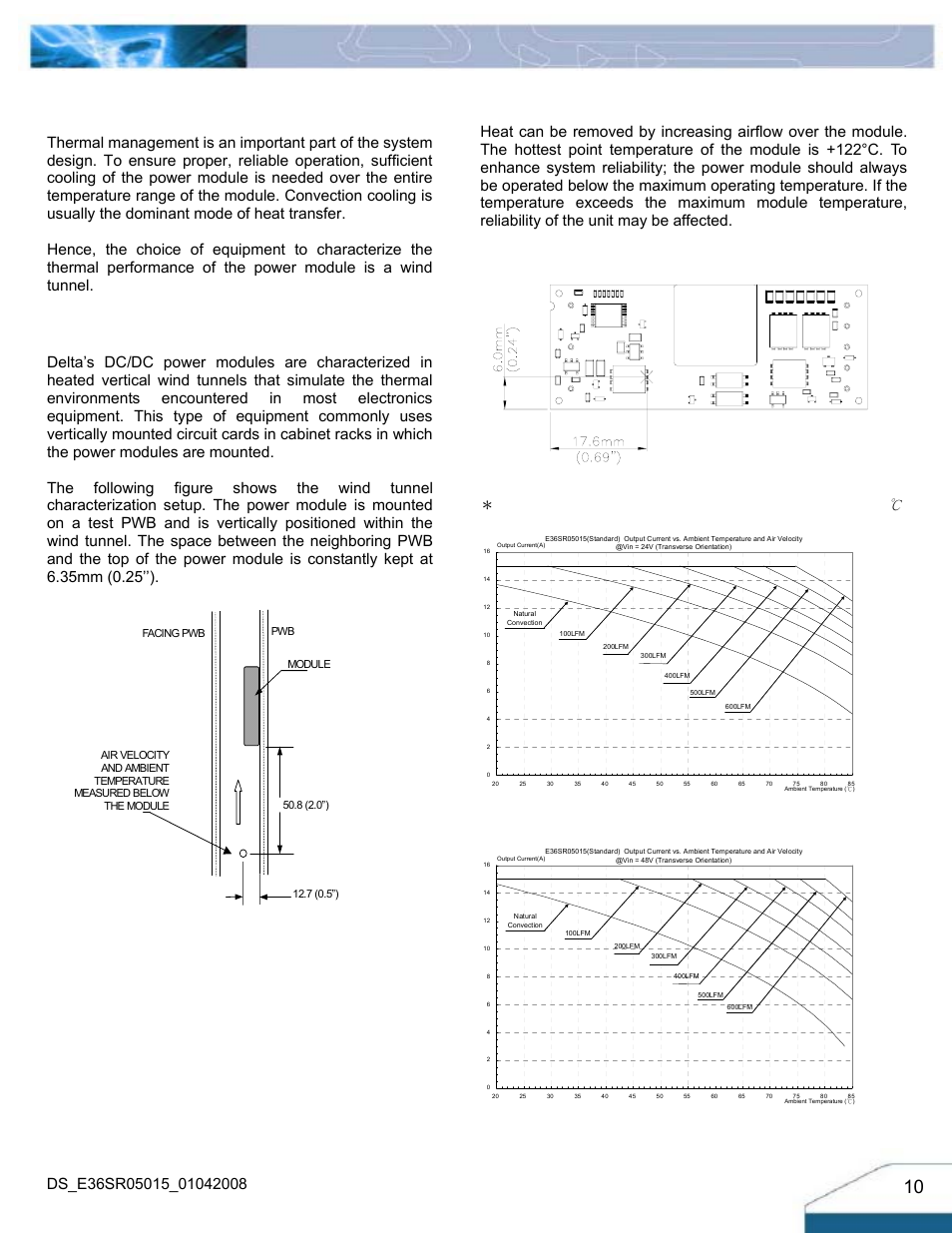

Page 10: Thermal derating, Figure 20: wind tunnel test setup, 24v(transverse orientation), 48v(transverse orientation)
