True-rms Digital Multimeters
Making Measurements
41
mAAC
8:10pm
06/13/07
Circuit Power:
OFF to connect meter.
ON for measurement.
OFF to disconnect meter.
Current through one component
Total current to circuit
est19.eps

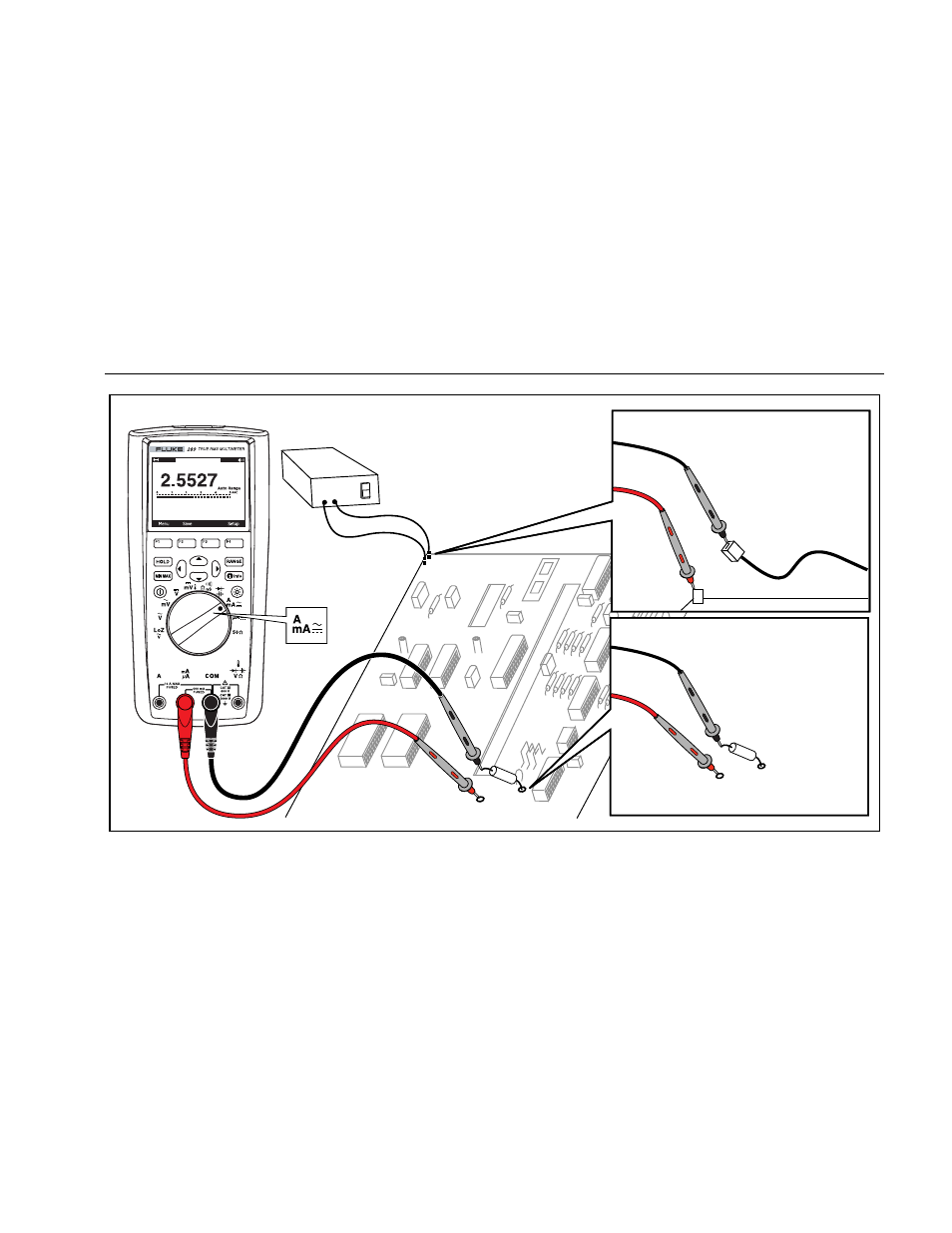

Figure 22. Current Measurement Circuit Connection
