7
ENVISION
2
NKW 50Hz REVERSIBLE CHILLER INSTALLATION MANUAL

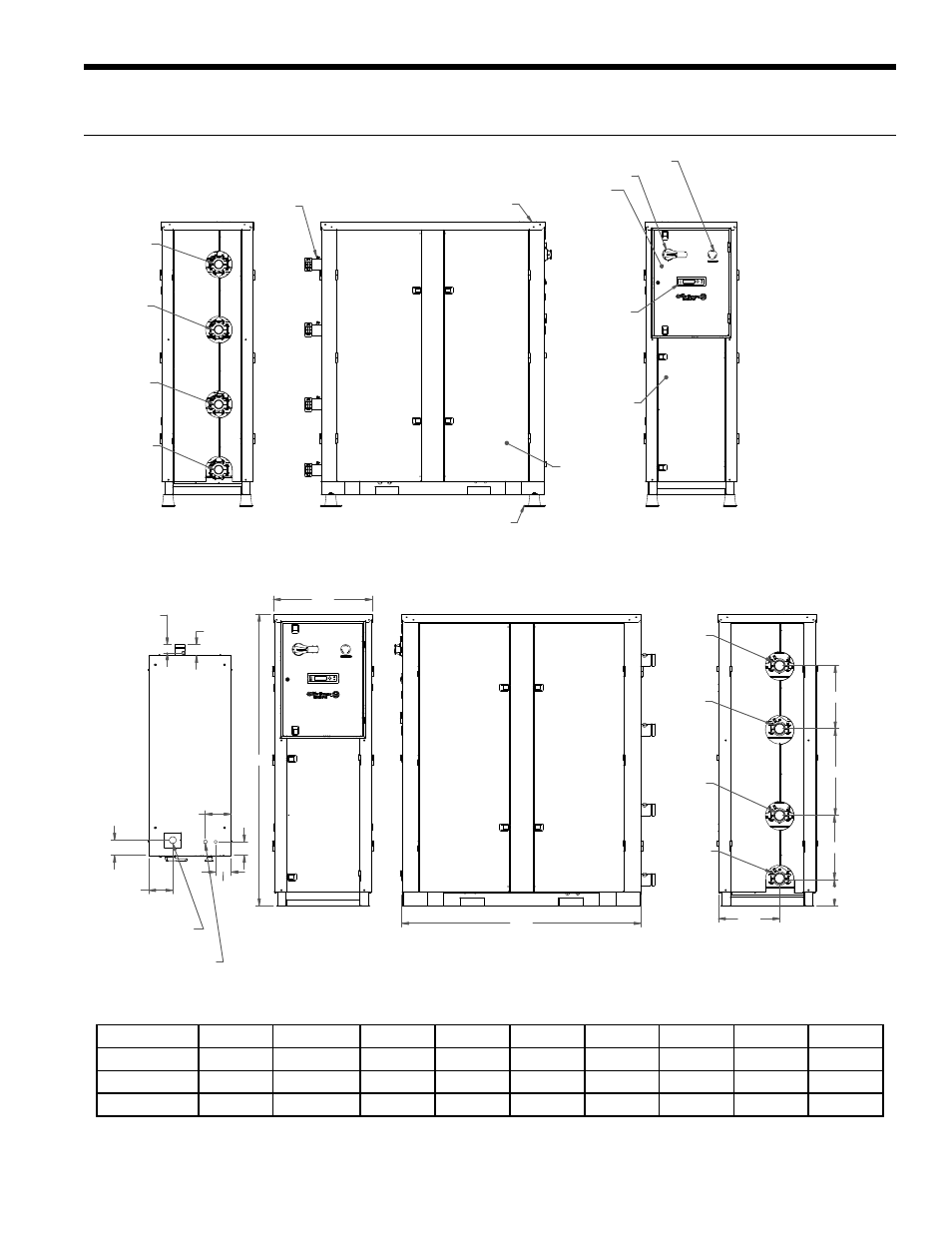

Physical Dimensions
SOURCE
WATER OUT
SOURCE
WATER IN
LOAD
WATER IN
LOAD
WATER OUT
CONTROL BOX COVER
MAIN POWER CONNECTION
VIBRATION PADS
OPTIONAL GAUGE
ACCESS DOOR
DISCONNECT SWITCH
EMERGENCY STOP SWITCH
FX-10
CONTROLLER
SIDE ACCESS
PANEL DOORS
SERVICE PORTS
"A"
"B"
"H"
"D"
"E"
"C"
177.8
114.3
101.6
114.6
190.8
ELECTRICAL
HIGH VOLTAGE
ELECTRICAL
LOW VOLTAGE
J
61.5
TO PORT
(SERVICE)
"F"
"G"
SOURCE
WATER OUT
SOURCE
WATER IN
LOAD
WATER IN
LOAD
WATER OUT
TOP
FRONT
SIDE
REAR
Dimensional Data for unit with enclosure
Model
A
B
C
D
E
F
G
H
J
030-045
1455.0
612.0
1080.0
127.0
432.0
224.0
432.0
302.0
117.0
060-090
1631.0
612.0
1283.0
175.0
432.0
353.0
432.0
307.0
91.0
150
1806.0
610.0
1486.0
165.0
432.0
495.0
432.0
381.0
81.0
All dimensions in mm.
10/7/14
