Fpvb wiring , cont’d – Vortech 2010+ Camaro Fuel Pump Voltage Booster User Manual

Page 16

DP/N: 007124v1.0

08FEB2010 FPVB UPGRADE

FPVB WIRING , CONT’D

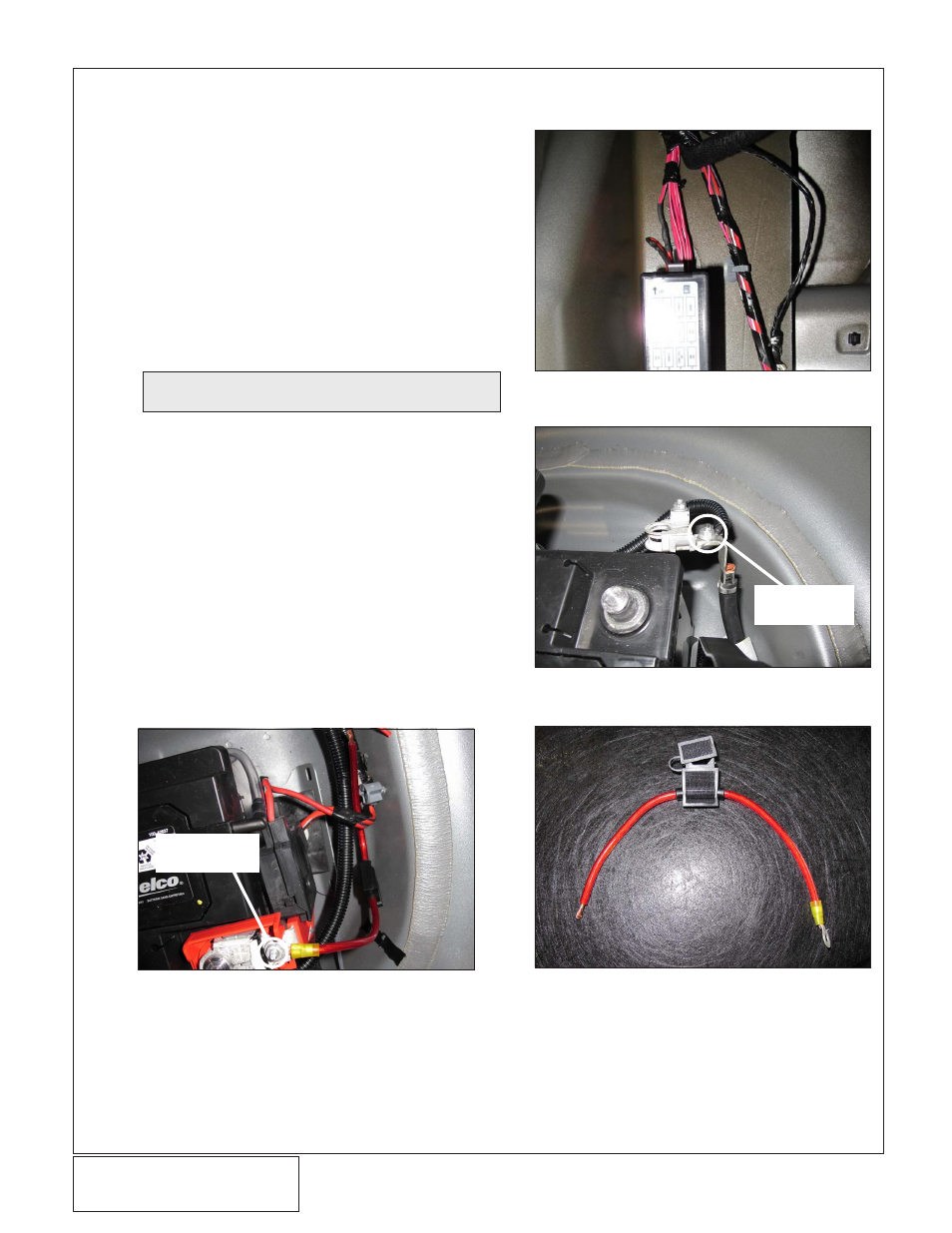

Remount the fuse block to the trunk wall and

snap in place.

Reinstall the cover onto the fuse block.

Using the remaining split loom and zip ties, route

the black "BATT-" and red “BATT+” wires from

the harness plug to each of the respective bat-

tery terminals. (Red to battery positive and Black

to battery negative/ground)

Trim and strip the black "BATT -" wire to length

and crimp on a blue supplied ring terminal.

Using a 10mm socket or wrench, attach the ring

terminal to the factory battery terminal as shown.

Locate the supplied fuse holder. Cut and strip

both ends of the wire at the middle.

On one end of the fuse holder, crimp on the sup-

plied yellow ring terminal.

With fuse NOT installed in fuse holder, attach the

yellow ring terminal to the positive factory battery

terminal, using a 10mm socket or wrench.

Fig. 3-h

Fig. 3-i

Fig. 3-j

Fig. 3-k

NOTE:

Do NOT reattach to battery at this time.

ATTACH BLUE

RING TERMINAL

HERE

ATTACH

YELLOW RING

TERMINAL HERE
