3. BELT INSTALLATION AND TENSIONING
A. Make sure the tensioner arbor is adjusted to the
highest position and install the supplied cog belt
around the crank first and then the supercharger
pulley.
B. With the belt routing underneath the tensioner
idler pulley, adjust the tensioner by turning the
tensioner screw counter-clockwise so that idler
pulley is lowered onto the belt applying tension.
C. Once adequate tension is applied, lock the ten-
sioner in place by finally tightening the jam nut on
the tensioner arbor previously left loose for adjust-
ment purposes.

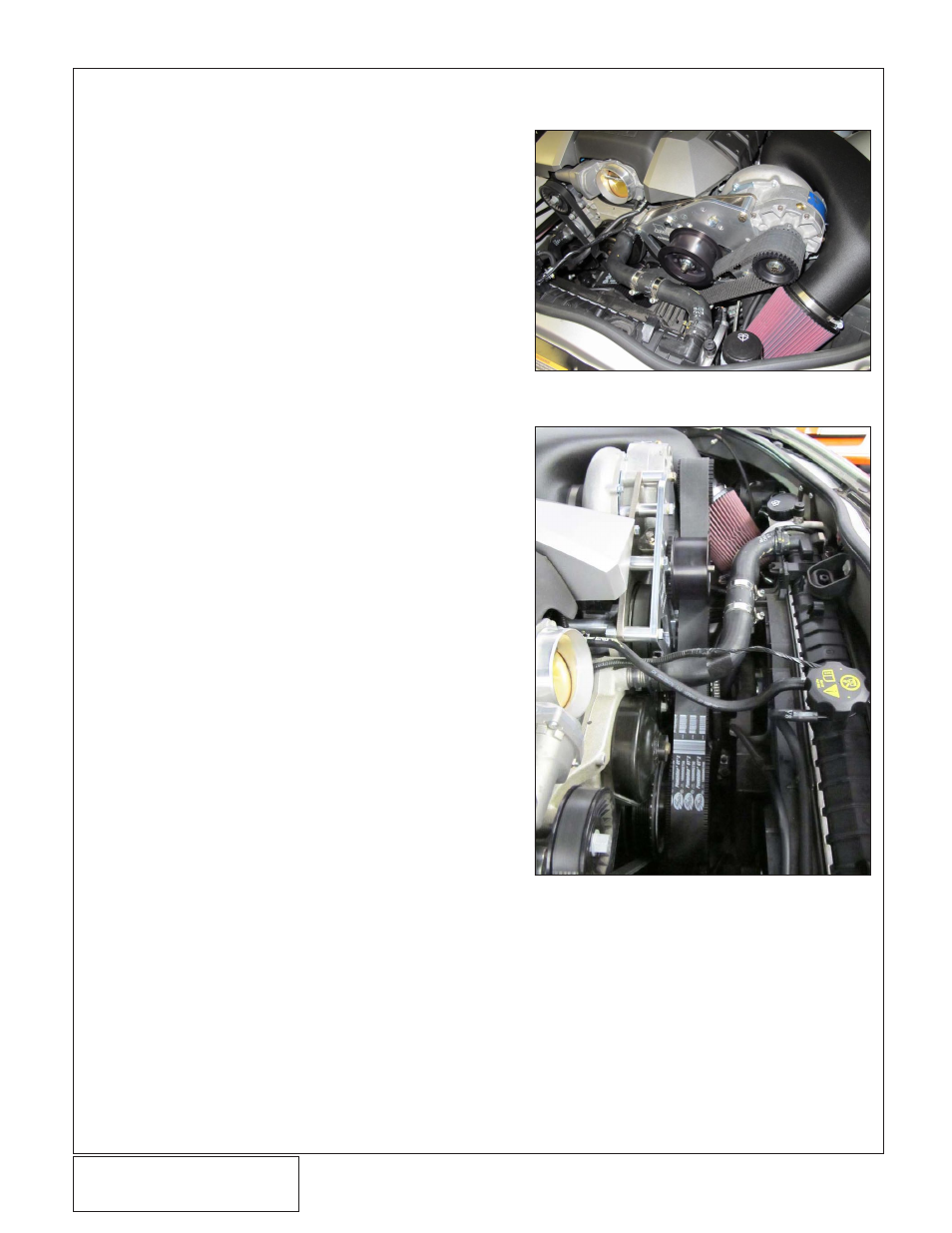

Fig. 3-a
Fig. 3-b
