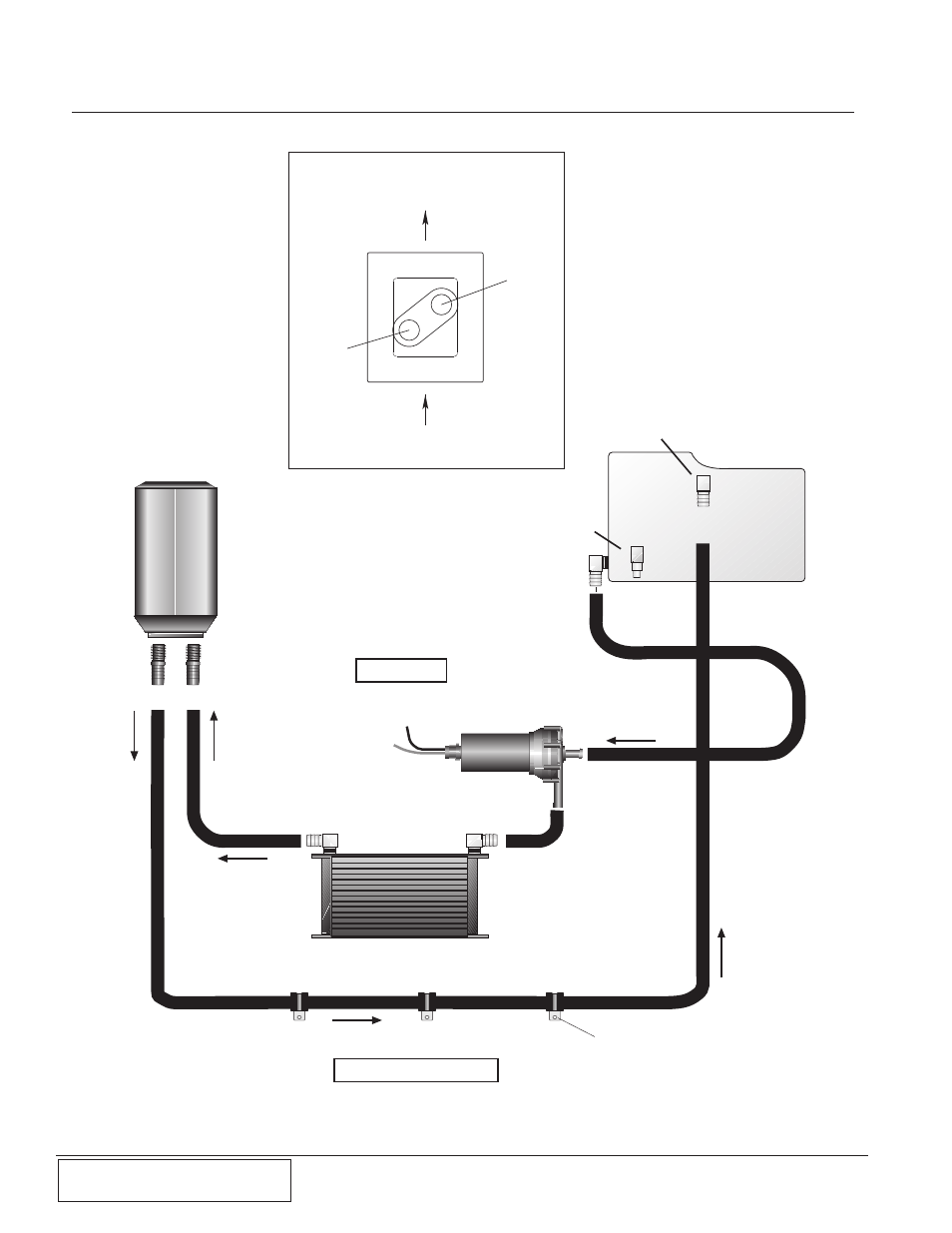

5. Water Tank Mounting,
cont’d (Plumbing Schematic)
FRONT OF VEHICLE
WATER
TANK
RETURN WATER FROM
AFTERCOOLER CORE
WATER
FLOW
DRAINCOCK
42"
Water In Water Out
TOP VIEW
98"
50"
Flow Flow
3/4” 90 °
HOSE BEND
WATER
COOLER
WATER
PUMP
FEEDHOSE FR
OM T
ANK
(+)
(-)
SECURE TO THE BOTTOM
OF THE RADIATOR CORE
SUPPORT
WATER
OUTLET
FROM
SUPERCHARGER
TO THROTTLE BODY
FRONT VIEW OF COOLER
WATER
INLET
Fig. 5-e
