A. Using the 3/4” 90° elbow slide the shortest end
onto the 3 1/2” x 45° inlet elbow and insert the 3/4”
hose union into the opposite end.
B. Cut a piece of 3/4” hose 34” in length and attach
to the 3/4” hose union and to the idle air control
motor.
C. Attach the short end of the 5/8” x 24” 90° hose to
the 3 1/2” x 45° inlet elbow and install the 5/8”
hose union into the free end (see Figure 4-a).
D. Connect the valve cover vent line to the 5/8” hose
union and trim the excess line as needed (see
Figure 4-b).
NOTE: Trimming the 90° elbow may also be
required to avoid any possible kinks in
the line.
4. Valve Cover Vent Line

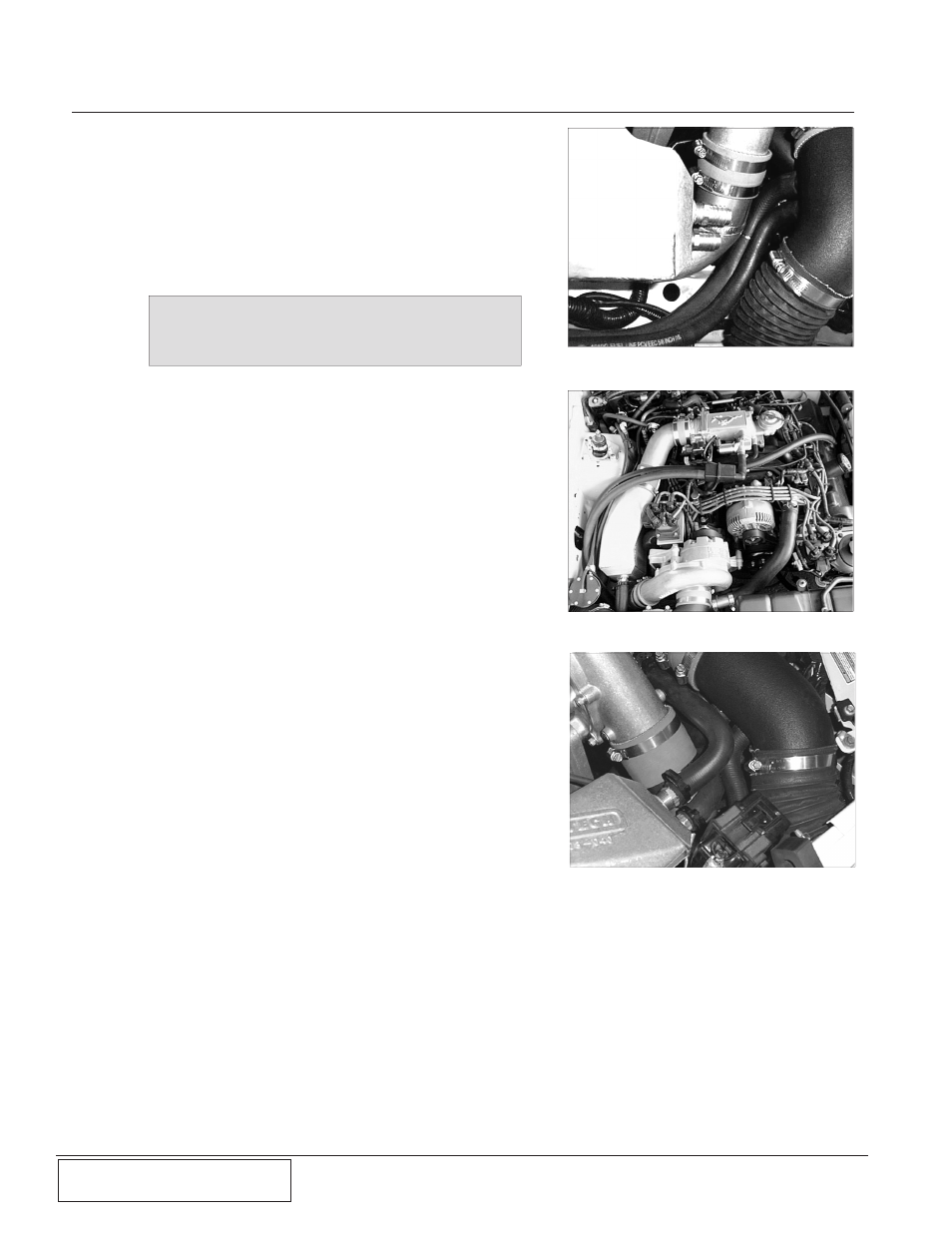

Fig. 4-a
1996-1998 Models
Fig. 4-b
Fig. 4-c
1999-2000 Models
