PONTIAC
SUPPLEMENTAL INSTRUCTIONS
1.
RELOCATE BATTERY
A. Remove the evaporative canister from the right
front inner fender. Set aside for now.
B. Remove the battery from its stock location at left
front inner fender. Relocate battery to the right
inner fender utilizing the existing factory hard-
ware to resecure it.
C. Coil and secure the excess length of positive
battery cable with wire ties provided.
D. Clip and extend the 8 gauge alternator wire
connector with wire provided.
2.
MOUNT THE VORTECH SUPPLIED
WASHER RESERVOIR
A. Locate the new washer fluid reservoir inward of
the battery on the right side of the engine bay.
3.
RELOCATE THE EVAPORATIVE CANISTER
A. The evaporative canister must be relocated to
the right front behind the splash panel in front of
the right wheel.
B. For specific details locate item in section 9.
(CANISTER RELOCATION) this instruction
manual and follow the operations listed apply-
ing them to the right side of the vehicle.

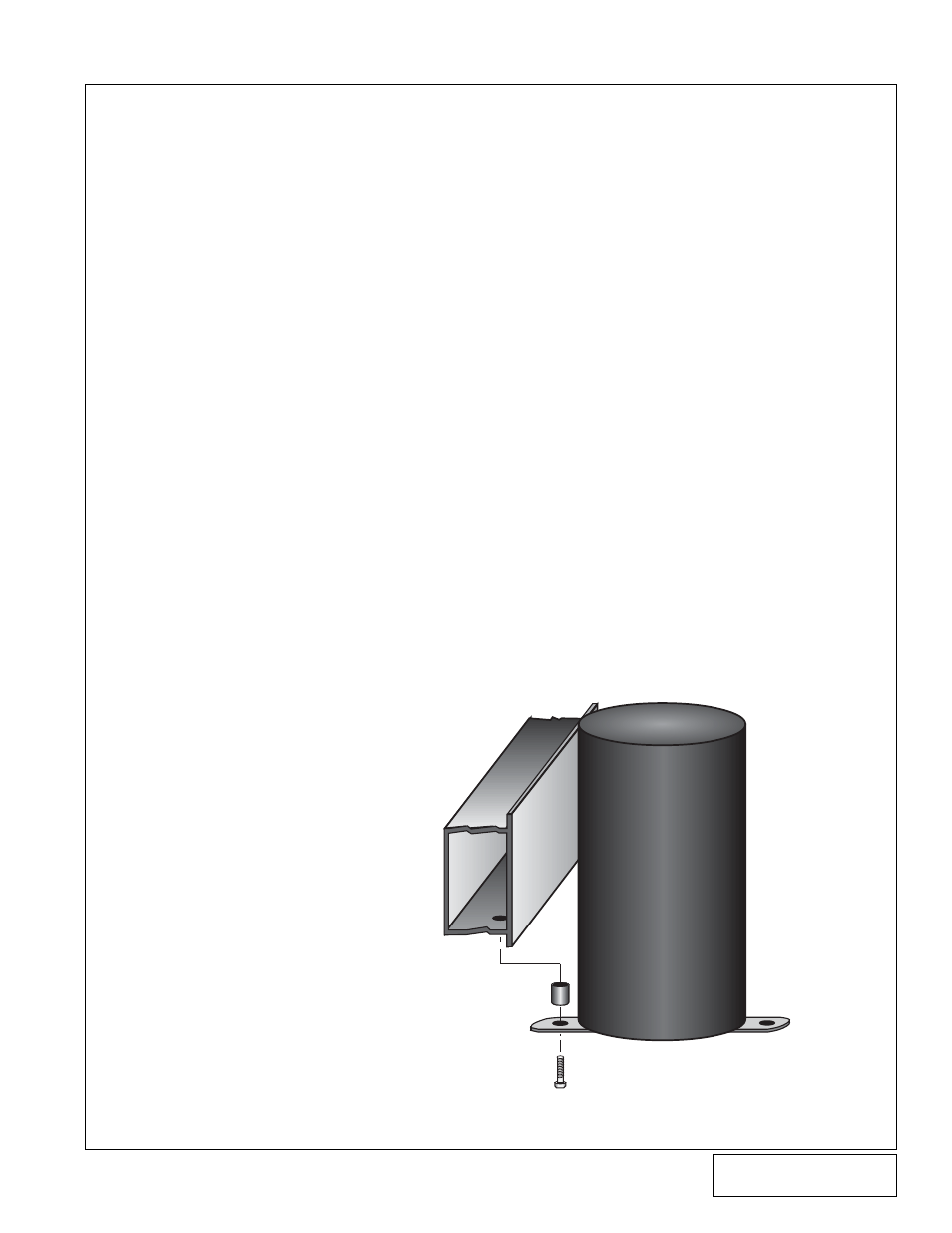

ix
SPACER
FRAME
EVAPORATIVE
CANISTER
EVAPORATIVE
CANISTER
FRAME
SPACER
