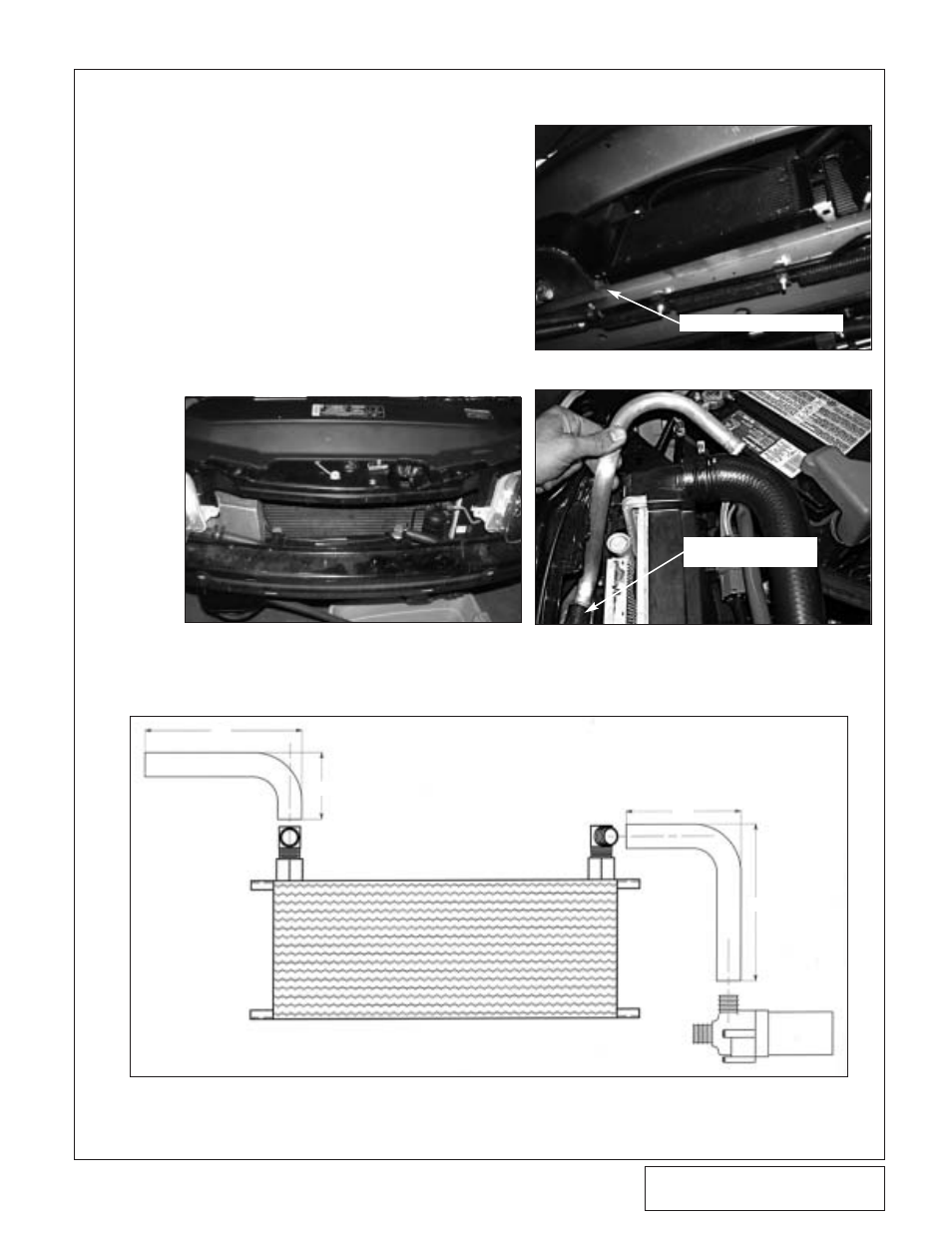

12. WATER RESERVOIR/SETRAB COOLER INSTALLATION, cont’d
Fig. 12-d
Fig. 12-e
Fig. 12-f
6.5
4.75
2.75
6.5
Fig. 12-g
J. Trim the supplied Ø3/4 x 90° molded hoses.
See Fig. 12-g for hose lengths.
K. Installed the 2-3/4 end of the trimmed 90°
molded elbow on the passenger side fitting in
the water cooler. Orient the hose as shown in
Fig. 12-d.
L. With the cooler and reservoir mounted, install
the aluminum section of water tube so that it
snakes around the upper passenger side of
the radiator down to the 2" piece of rubber
hose installed on the reservoir. Push the alu-
minum tube into the hose and secure with a
supplied nylon ratchet clamp. (See Fig. 12-f.)
SHARED MOUNTING LOCATION
2" PIECE OF Ø1.0" HOSE
ON WATER RESERVOIR
