17
11B. ESCALADE WATER COOLER INSTALLATION, CONT'D (ESCALADE
ONLY - ALL OTHERS SKIP TO SECTION 12)

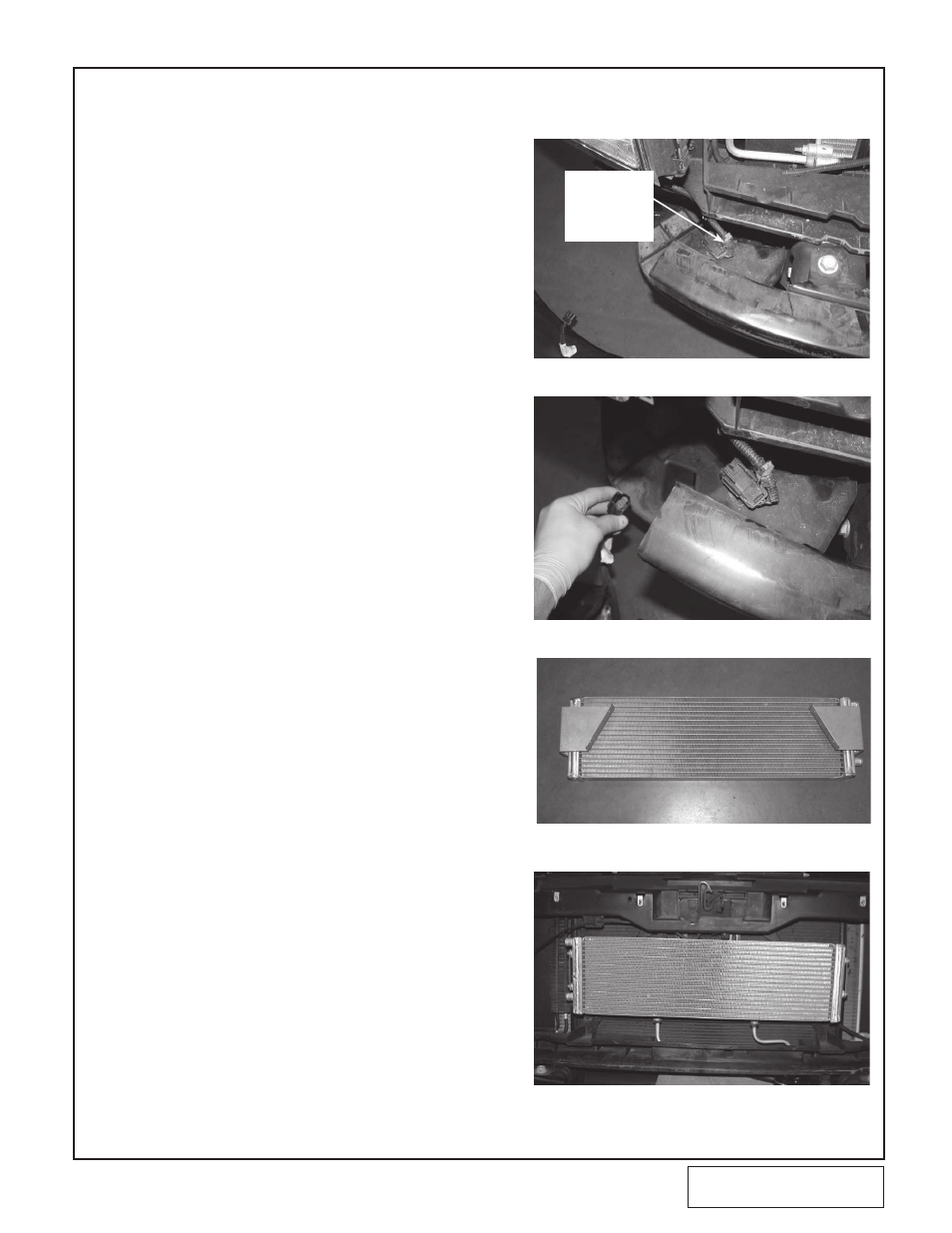

F. Remove the bumper cover with grill attached
slowly, being sure to unplug the wiring harness
on each side located just on top of the front
crash bar. (See Fig 11-i & 11-j)
G. Temporarily attach the two supplied brackets to
the water heat exchanger as shown. (See Fig
11-k)
H. Place the heat exchanger with bracket in place
and mark hole locations to drill on trapezoidal
radiator support crosslink member. (See Fig
11-m)
Fig. 11-i
Fig. 11-j
Fig. 11-k
Fig. 11-m
DISCONNECT
ELECTRICAL
CONNECTORS
ON EACH SIDE
