14

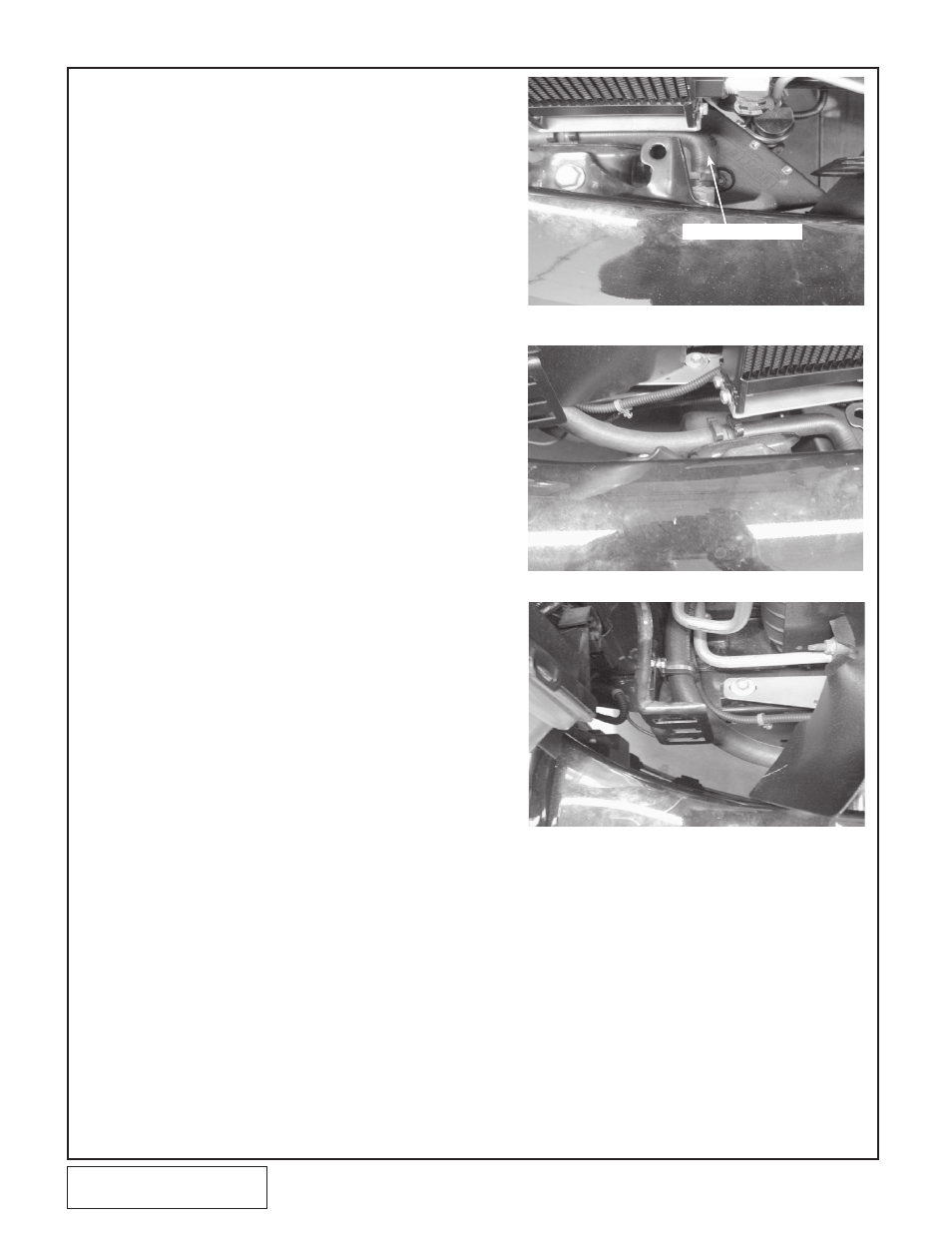

Fig. 10-e
Fig. 10-f
Fig. 10-g
10. SURGE TANK AND RESERVOIR
TANK INSTALLATION, cont’d
K. Install the supplied 3/4 X 90º formed hose to
the 1/2 x 3/4 barbed fitting on the top of the
reservoir. (See Fig 10-e)
L. Install a supplied 3/4 hose union into the
formed 90º hose and secure with a nylon
clamp. (See Fig 10-f)
M. Attach a length of 3/4 hose approximately 48”
in length to the opposite end of the hose union
and secure with a nylon clamp.
N. Route the length of hose through the radiator
core support. Secure the hose to one of the
factory holes in the grille support bracket, using
an Adel clamp and the fasteners. (See Fig 10-
g)
O. Route the hose free of kinks and away from
sharp or hot areas to the bottom of the fill reser-
voir installed in and earlier step (See Fig 12-a).
90º Hose
