A. Loosely install the supercharger onto the
Vortech bracket. Start all five 3/8-16 x
2-1/4" supercharger mounting screws with
washers.
B. Tighten the supercharger mounting
screws in a rotating pattern to 18 ft-lbs
(25 N-m).
C. Install the Vortech supplied M12 x 50mm
bolt, dust cover, idler pulley and spacer
onto the supercharger cover as shown in
Figs. 4-a, 4-b.
D. Install the supplied supercharger/acces-
sory drive belt per Fig. 4-b.
4. SUPERCHARGER INSTALLATION

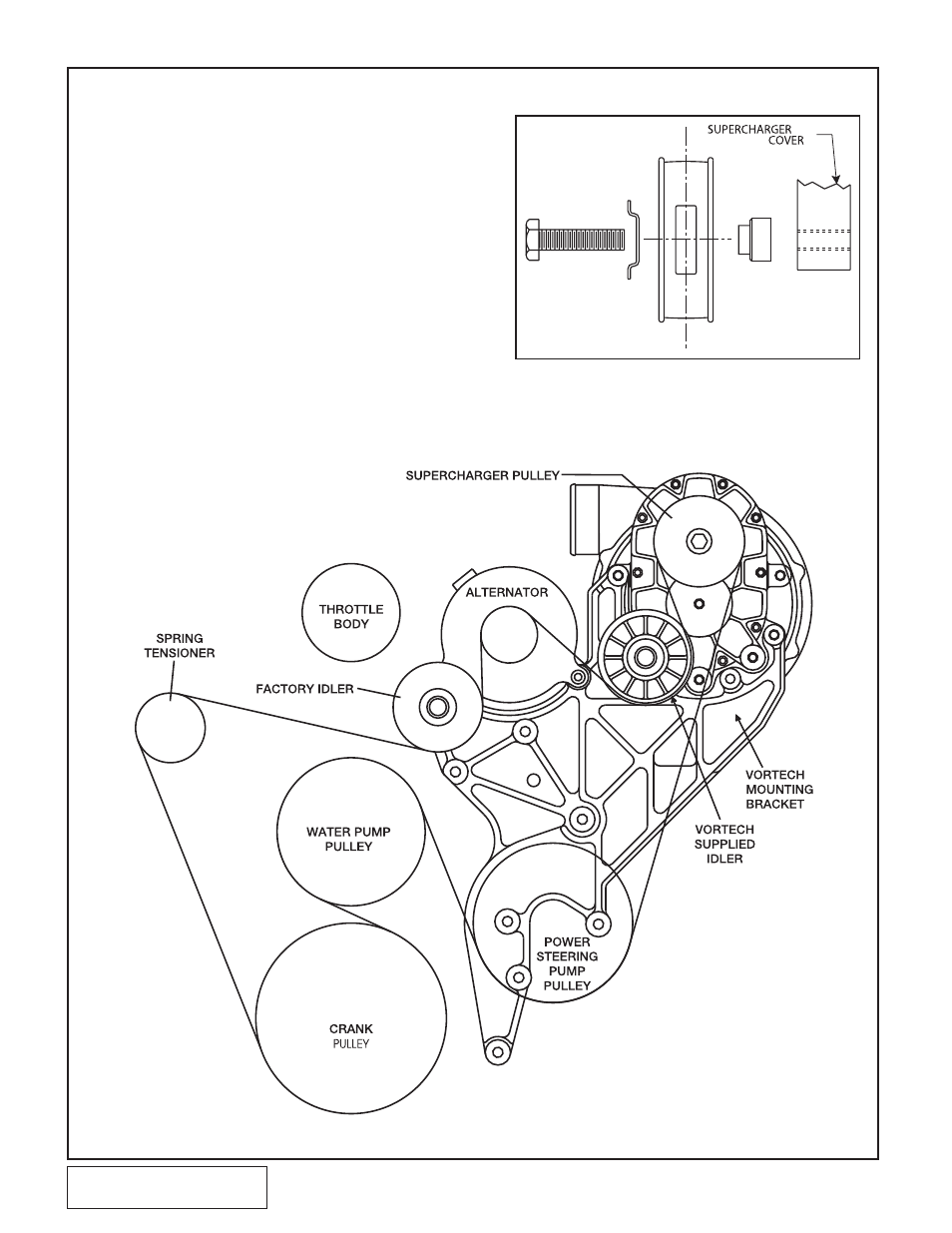

Fig. 4-a
Fig. 4-b
