© 2001 Directed Electronics, Inc. Vista, CA

9

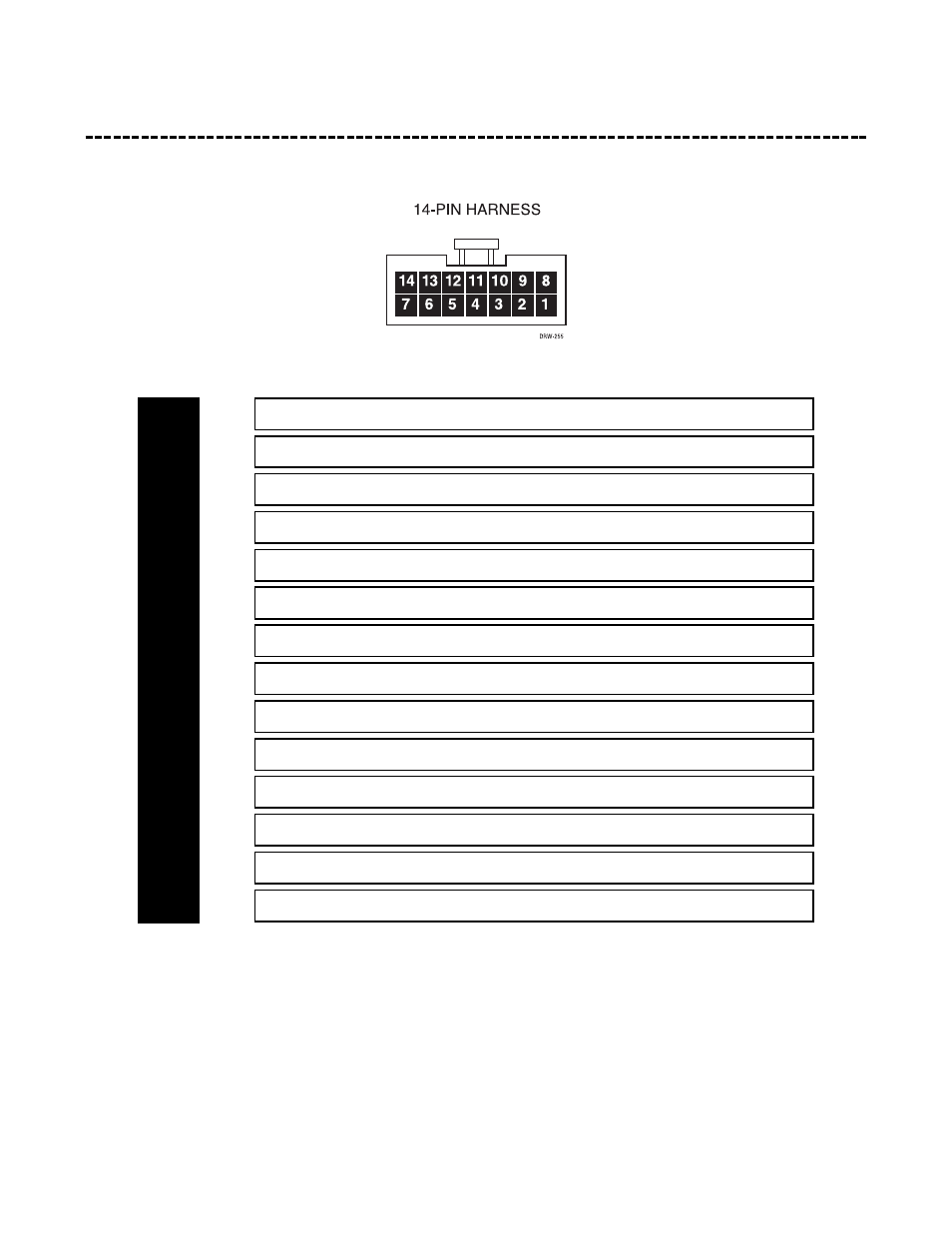

primary harness (H1), 14-pin connector

______

______

______

______

______

______

______

______

______

______

______

______

______

______

*NOTE: These wires are interchangeable.

WHITE

(+) LIGHT FLASH OUTPUT #2

BLACK/WHITE*

STARTER KILL OUTPUT

RED/WHITE

(-) CHANNEL 2 OUTPUT

WHITE/BLUE

(-) CHANNEL 3 OUTPUT

BLACK/WHITE*

STARTER KILL INPUT

BROWN

(-) SIREN OUTPUT

YELLOW

(+) IGNITION INPUT

RED

(+) 12V CONSTANT POWER

WHITE

(+) LIGHT FLASH OUTPUT #1

BLUE

(-) INSTANT TRIGGER/MERCURY TILT SWITCH INPUT

ORANGE

(-) GROUND-WHEN-ARMED 500 mA OUTPUT

LIGHT GREEN/BLACK

(-) OPTIONAL MULTIPLEXED SENSOR INPUT

BLACK

(-) BATTERY GROUND

GREEN

(-) CLOSED LOOP

H1/1

H1/2

H1/3

H1/4

H1/5

H1/6

H1/7

H1/8

H1/9

H1/10

H1/11

H1/12

H1/13

H1/14
