Thanks for joining the Riot: get ready to sequence in a whole new way. The
Trigger Riot is a deep machine that combines a great deal of functionality with an
intuitive interface. In this manual we begin with a few simple “quick start” patch
examples to get you used to working with the Riot, followed by a deeper function
by function explanation. We are doing our best to provide the Riot with as minimal
bugs as possible but if you do come across a strange behavior, please report this
to us ([email protected]) so we can keep updating the intelligence built into
the Riot.
Let the Riot begin!
In the following patch examples we will use the 808 Drum Modules and Z4000
Envelope Generators for clarity, obviously any other module with a gate/trigger
input should work. Lets get straight to the fun part:
MUTE/
SEL A
MUTE/SEL1
MUTE/SEL2
MUTE/SEL3
MUTE/SEL4
MUTE/
SEL B
MUTE/
SEL C
MUTE/
SEL D
HOLD ON POWER-UP
TO LOAD USB
+
+
+
+
T r i g g e r R i o t
A
1
2
3
B C D
4
3
2
1
4
A B C D
IN
CLOCK
OUT
INDEPENDENT
/MATRIX
IN RESET
OUT
TAP
TEMPO
P1 P2 P3 P4
B1
beat
sync
B2 B3 B4
BPM/
CYCLE RST/CLR
BOSS
reset F/L
clock source
DinSync
DIVIDE MODE STEPS PROBABILITY SPEED
TIME
SHIFT
CLOCK
SHIFT
PULSE
WIDTH
Tipt p
A u d i o
loop start end
MASTER KNOB USE
TO SET BPM, CYCLE
LENGTH AND OTHER
GLOBAL SETTINGS
LOAD AND SAVE
PRESET IN BANKS,
SET PRESET CHANGE
QUANTIZED TO THE
BEAT, LOOP PRESETS.
DISPLAY
MATRIX OF KNOBS
HORIZONTAL
TRIGGER OUTPUTS
VERTICAL
TRIGGER
OUTPUTS
CLOCK IN
AND OUT
RESET IN
AND OUT
TAP TEMPO, CYCLE LENGTH
SETTINGS, MATRIX ON OFF,
ASSIGN A BOSS FOR SYNC BUS,
MANUAL RESET AND CLEAR
ALL, START STOP WITH
GLOBAL SETTINGS
SELECT A MODE TO ASSIGN TO THE MATRIX OF KNOBS

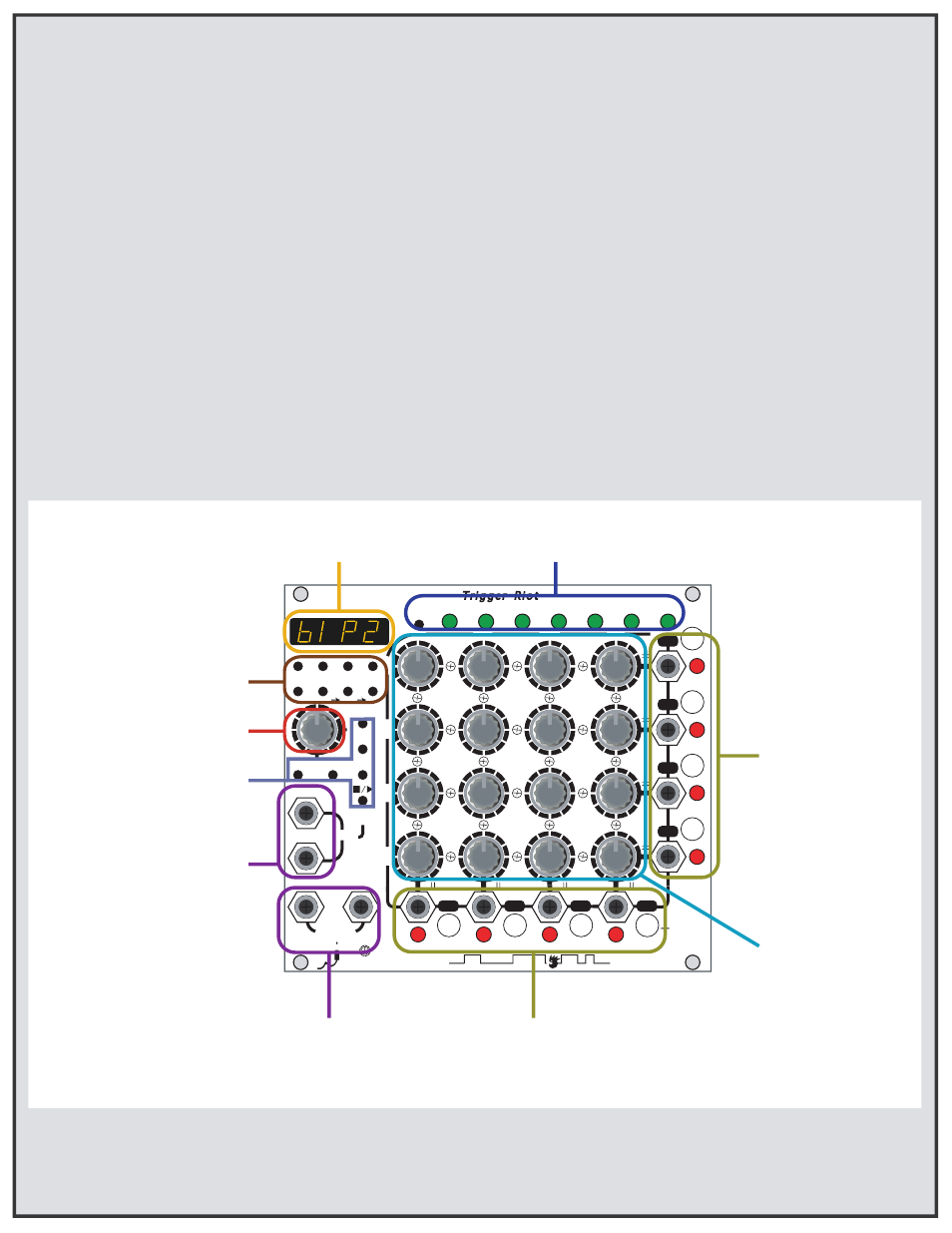

Get to know the Trigger Riot
