Taser X26 User Manual
Page 13
TASER® CDPM Operating Manual •
MMU0014 Rev: B
13
Verify that the DPM release button pops out from the recess position with an audible click.
The CID will display a “P” for about 6 seconds, indicating that the software version is being
programmed into the device. If a “P” is not displayed, contact TASER Customer Service
at 1-800-978-2737 or visit www.TASER.com.
Note: If for some reason you first insert a standard DPM instead of a CDPM into the
device at this point in the configuration process, make sure the DPM is of version
22 or greater. If a lower-version DPM is installed, the error “E1” will display on the
CID. If this happens, remove the older DPM and install a version 22 or greater DPM
or a CDPM. The CID will display a “P” for about 6 seconds, and the device will be
configured to use the CDPM.
12. Place the safety switch in the up (ARMED) position.

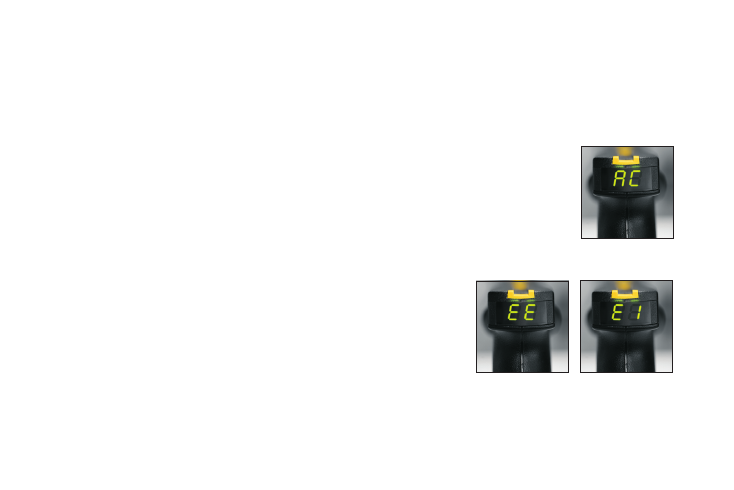

The CID will display a blinking “AC” (Figure 13).
• If the CID displays “EE” or “E1” (as shown in
Figures 14 and 15) contact TASER Customer Service
at 1-800-978-2737 or visit www.TASER.com.
Figure 14
Figure 15
Figure 13
