4. After charging is complete, connect the loads to the UPS while monitoring the load levels via
the UPS LCD or via the software.
• Do not connect any devices that have the possibility of overloading the UPS.
Refer to the Troubleshooting section and/or Technical Support with any problems during setup.
10. User’s Operations
The only operations that users are permitted to do are:
• Turning the UPS unit ON or OFF
• Operating the user interfaces
• Connecting data interface cables
• Changing the batteries
All such operations are to be performed exactly as instructed in this manual. The greatest care possible must be
taken for any of these operations, and any change thereof may prove very hazardous to the operator.

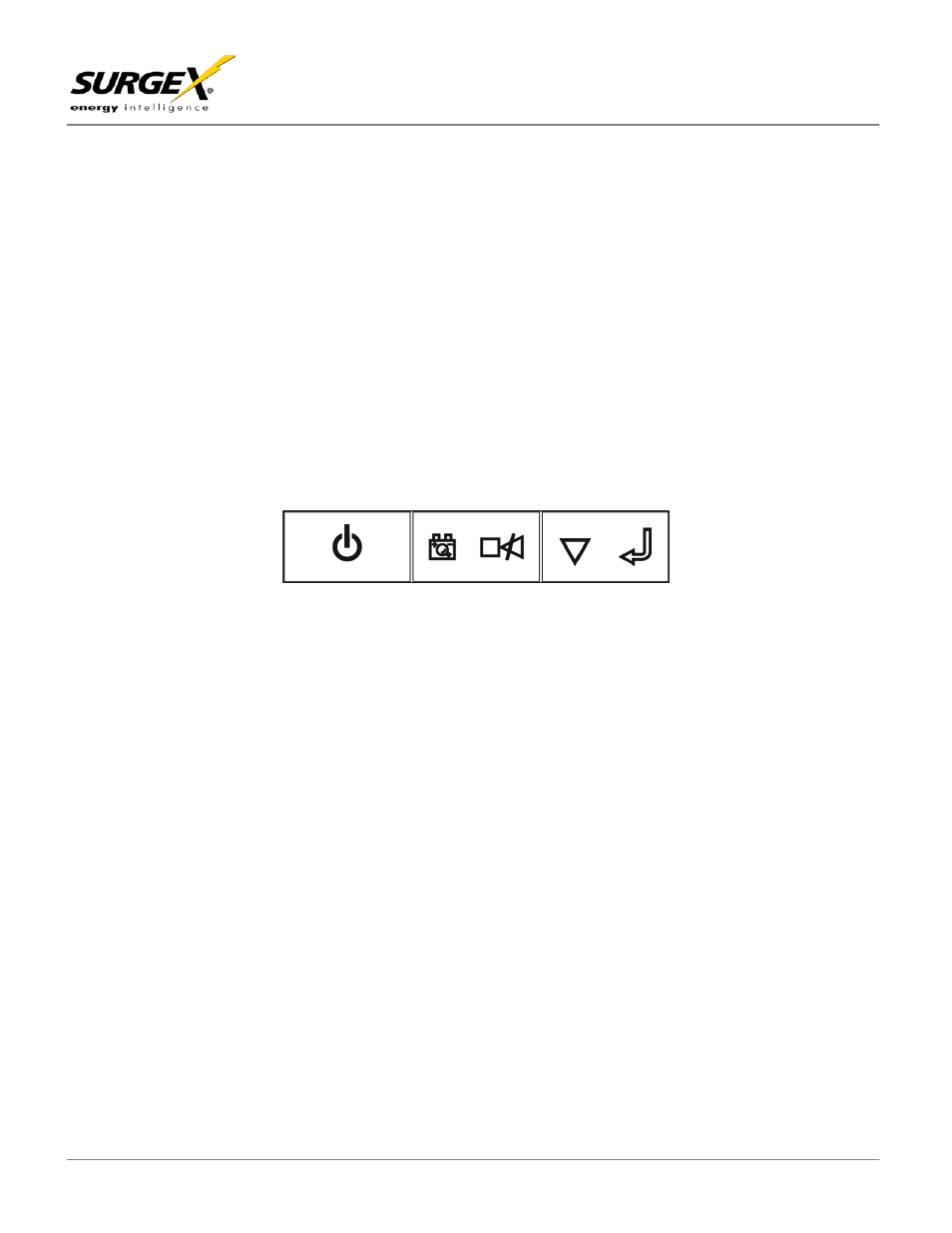

On/Off Button Function Button Inquiry Button
Turning Off the UPS when connected to an AC source
• Press and hold the ON/OFF button for more than 3 seconds to turn off the UPS. This means the internal
inverter has been deactivated.
• The unit will run a self test prior to the deactivation of the inverter.
• The green LED will be off and the yellow LED will be on. The LCD display will indicate “On BPS”, which
means the UPS in providing no output.
Starting the UPS from a DC source (cold start)
• Assure that the UPS has fully charged batteries and the internal battery pack is connected.
• Assure that there is no AC input power source and/or the unit is not plugged into an outlet.
• Press and hold the ON/OFF button for three seconds.
• Once turned on, the UPS will perform a self-test function, when the yellow LED turns to green, LCD
displays “On Batt” – the UPS is now functioning in DC mode.
Turning Off the UPS when in DC Mode
• Press and hold the ON/OFF button for more than 3 seconds to turn off the UPS. This means the internal
inverter has been deactivated.
• During the shutdown period, the UPS will run a self test. Once the self-test has been completed,
assuming there is still no AC input, the LCD will no longer display information. This indicates the UPS
has no output.
