InfoStation 12-Bay Installation Guide - Rev. A02 StorCase Technology, Inc.
Installation 5

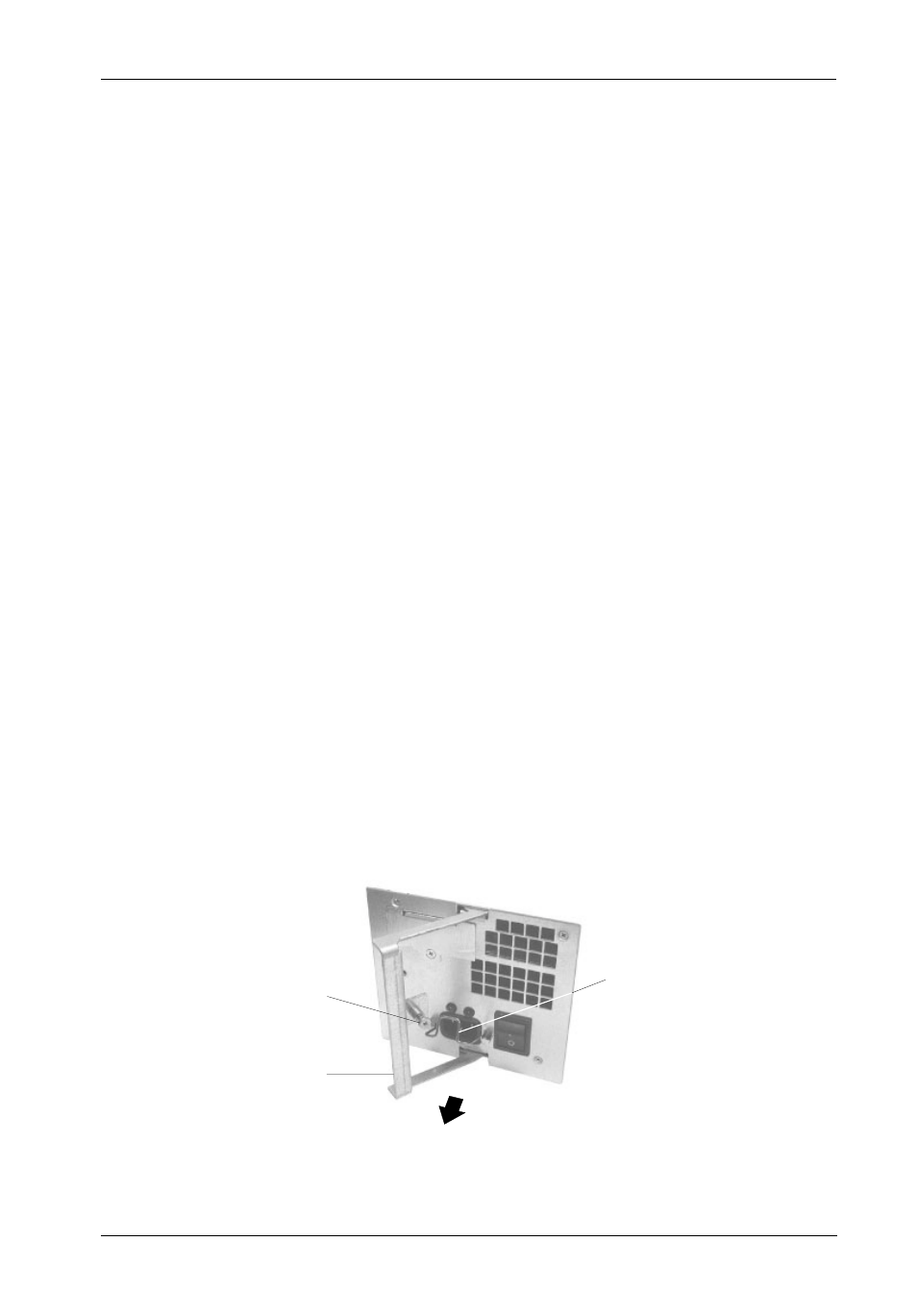

Figure 4: Removing the Power Supply/Blower Module
Removing the Power Supply/Blower Module
CAUTION: The power supply/blower module contains NO USER SERVICEABLE PARTS
inside the unit. Warranty is VOID if module is opened. Refer ALL servicing
to qualified service personnel!
This unit has more than one power supply cord. Disconnect two power supply
cords before servicing to avoid electric shock.
NOTES: The power supply/blower module is hot-swappable. The chassis may remain
on when removing and installing the module.
Blank plate (provided) must be installed if module slot is left empty. Installation
of the blank plate is necessary for proper cooling inside chassis.
A #2 Phillips screwdriver will be required for this procedure.
1. Turn OFF power to the power supply/blower module via the power switch located
on the module itself.
2. Loosen the captive screw securing the power supply/blower module to the Info-
Station chassis (Figure 4).
3. Remove the power supply/blower module by grasping handle outwards and pulling
out from chassis.
NOTE:
Make sure the retainer clip (if installed) is not blocking the power
supply/blower module handle (handle pivots outward). Damage to
the retainer clip may occur otherwise.
4. To reinstall power supply/blower module, simply reverse above mentioned steps.
IFS12_25
Module
Handle
Captive
Screw
Retainer
Clip
