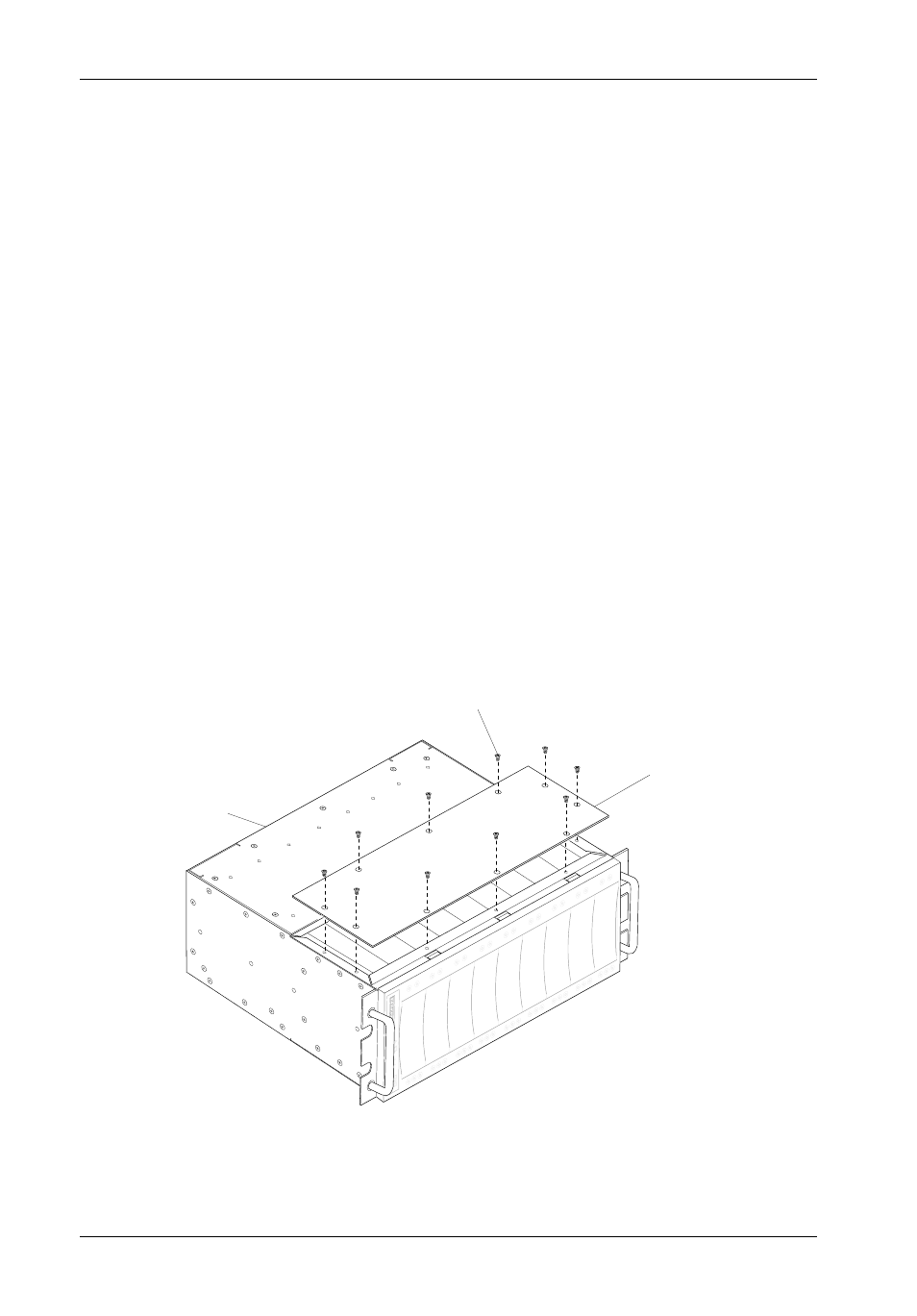

Figure 9: Removing the Access Panel
Removing the InfoStation Access Panel
CAUTION: Remove ALL power from the InfoStation before removing the access
panel(s). The InfoStation contains NO USER SERVICEABLE PARTS
inside the unit. Warranty is VOID if any of the modules inside the
InfoStation are opened. Refer ALL servicing to qualified service
personnel!
1. Unplug the InfoStation and verify that ALL cables have been disconnected.
2. Place the InfoStation on a soft clean surface to protect finish of the chassis.
3. Remove the ten (10) #6-32 Phillips F. H. screws securing the access panel to the
InfoStation chassis (Figure 9).
NOTE: Remove the access panel located on the RIGHT SIDE (Top) of the chassis
only.
4. Remove the access panel by carefully lifting the panel(s) off the chassis (Figure 9).
5. To reinstall panel, simply reverse the above mentioned steps.
Access Panel
(Right Side)
#6-32 Phillips
Flat Hd. Screw
(10 total)
InfoStation
Chassis
IFS9_10
