Installation 9

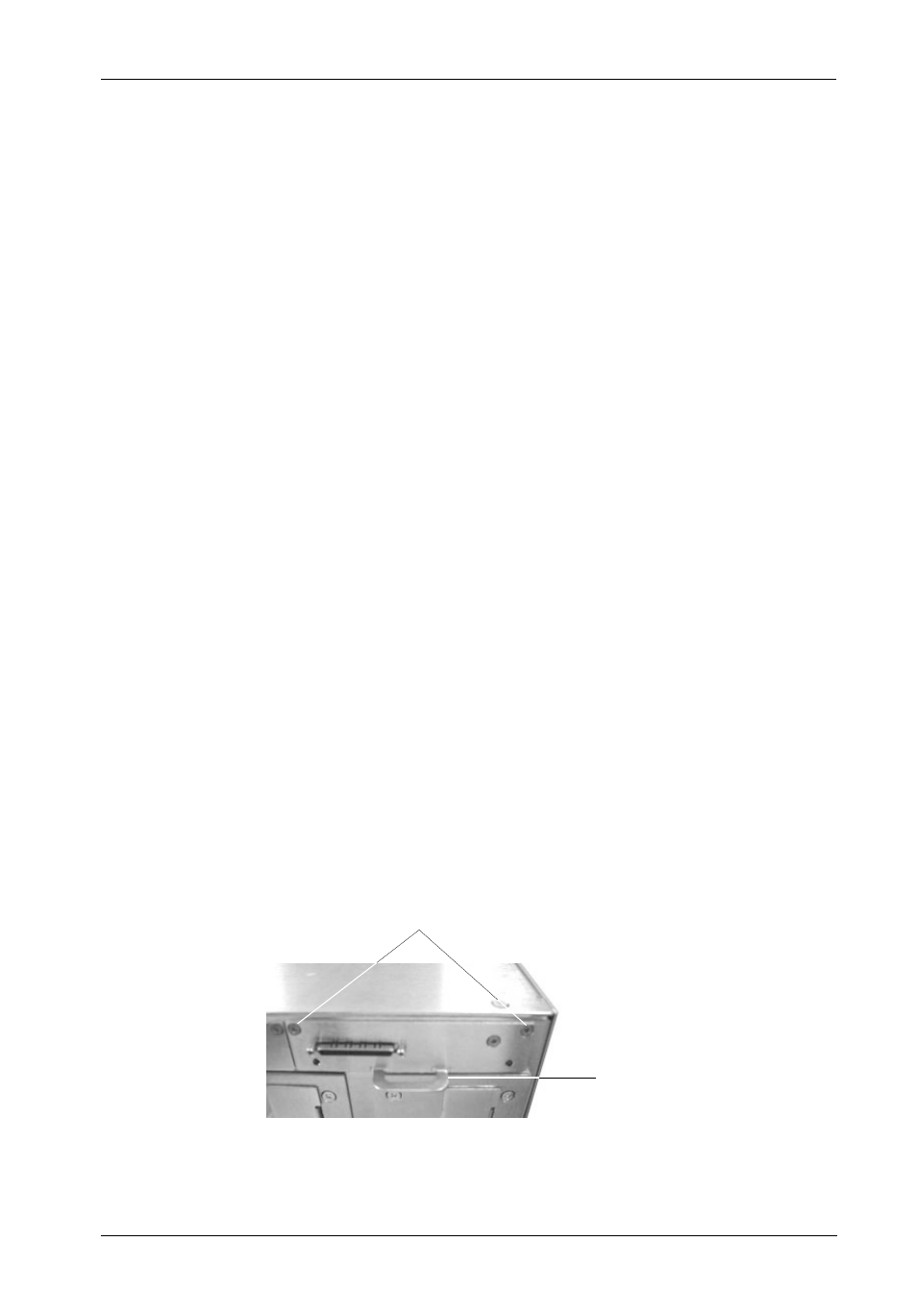

Figure 8: Removing and Installing the I/O Module
Removing and Installing the I/O Module
(Procedure and information below applies to both the I/O Module and I/O Repeater Module)
CAUTION: Remove ALL power from the InfoStation before removing the I/O module.
The I/O module contains NO USER SERVICEABLE PARTS inside the unit.
Refer ALL servicing to qualified service personnel!
VHDCI connectors are easily damaged by improper handling. Visually
inspect each connector for bent contacts and carefully align prior to
insertion.
NOTES: The InfoStation 9-bay supports daisy-chaining for Ultra160 applications
only.
The I/O module is NOT hot-swappable! Remove ALL power to chassis
before removing and installing the I/O module.
Optional I/O interfaces are available as an upgrade. Contact StorCase for
further ordering information.
1. Unplug the InfoStation and verify that ALL cables have been disconnected.
2. Place the InfoStation on a soft clean surface to protect finish of the chassis.
3. Loosen and remove the two (2) #6-32 Phillips F. H. screws securing the I/O module
to the InfoStation chassis (Figure 8).
4. Remove the I/O module by grasping handle and pulling out from chassis.
5. To reinstall I/O module, simply reverse above mentioned steps.
NOTE: Blank plate (provided) must be installed if module slot is left empty. Instal-
lation of the blank plate is necessary for proper cooling inside chassis.
#6-32 Phillips
Flat Hd. Screw
(2 Total)
Module
Handle
IFS14_10
