22 Appendix B - Factory-Installed Options
StorCase Technology, Inc. DE300i-SW User's Guide - Rev. A01
0518
Receiving Frame
Motherboard
Hot Swap
Board
(Installed) Carriers
(Installed)
Disable On Board
Termination Jumpers
(Installed at Factory)
I/O Connector
Pin 1
DRIVE A
DRIVE B
DRIVE C
JP1
JP2
JP3
DTA
DTB
DTC

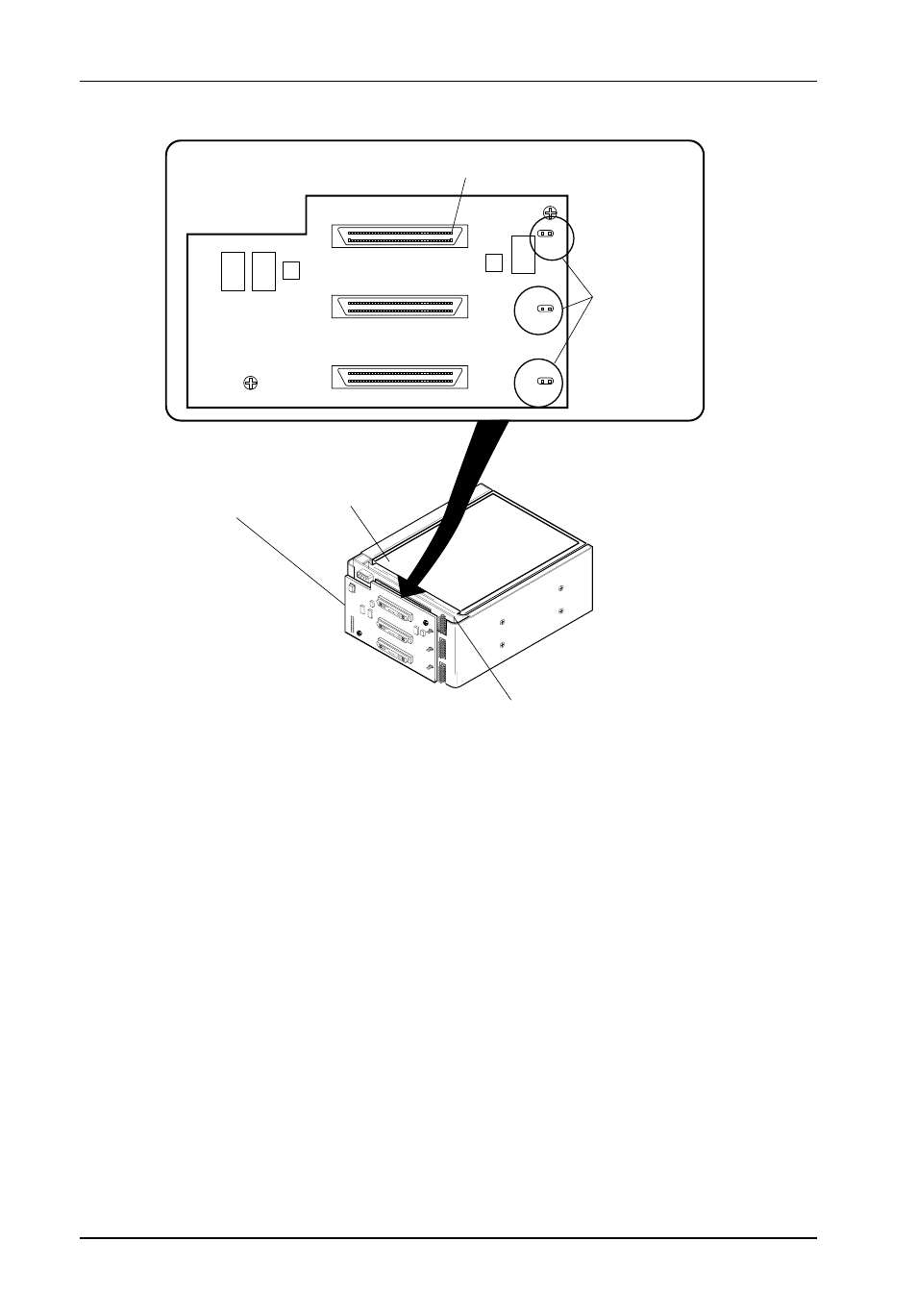

Figure B-2: Hot Swap Board Termination Jumpers
3. As the unit ID number flashes, the Hot Swap Board monitors the activity of the SCSI
bus. When activity is no longer present, the Hot Swap Board will remove power from
the drive and then remove the device from the SCSI Bus. The unit number will continue
to flash during this period.
4. After a short length of time the unit ID display will turn from a flashing unit ID number
to a steady “u”, indicating that the device is powered down, unlocked and ready to be
removed from the receiving frame.
