10 Installation
Installing the Receiving Frame
The drive should be installed into the carrier before installing the receiving frame into the
mounting bay of a computer or expansion chassis.
NOTE: Use a #2 Phillips screwdriver during this procedure.
1. Turn OFF power to the computer.
2. Open the computer system according to the manufacturer’s instructions. If
necessary, temporarily remove any expansion boards that may make installation
difficult.
3. To select the DE300i-SW unit ID remotely through the computer system or external
expansion chassis, the appropriate cable from the system must be connected to
option pins (1-8 on connectors J3A, J3B, J3C) on the rear of the receiving frame
(Figure 8). Set the unit ID to "0" for remote ID selection (Figure 10).

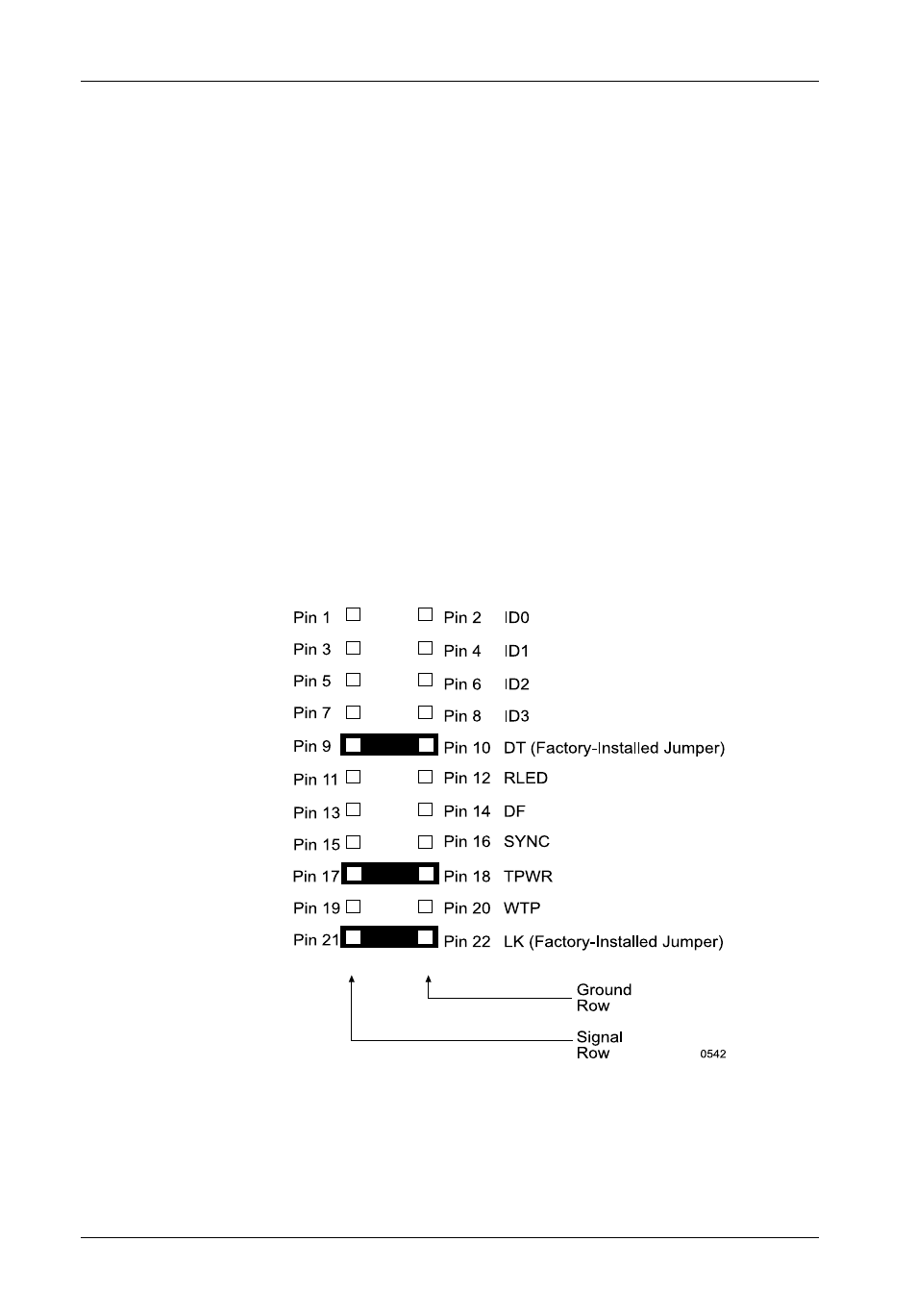

Figure 8: Receiving Frame Motherboard J3A, J3B, J3C Option Pins
