PATA DE110 User's Guide - Rev. C03 StorCase Technology, Inc.
Installation 9

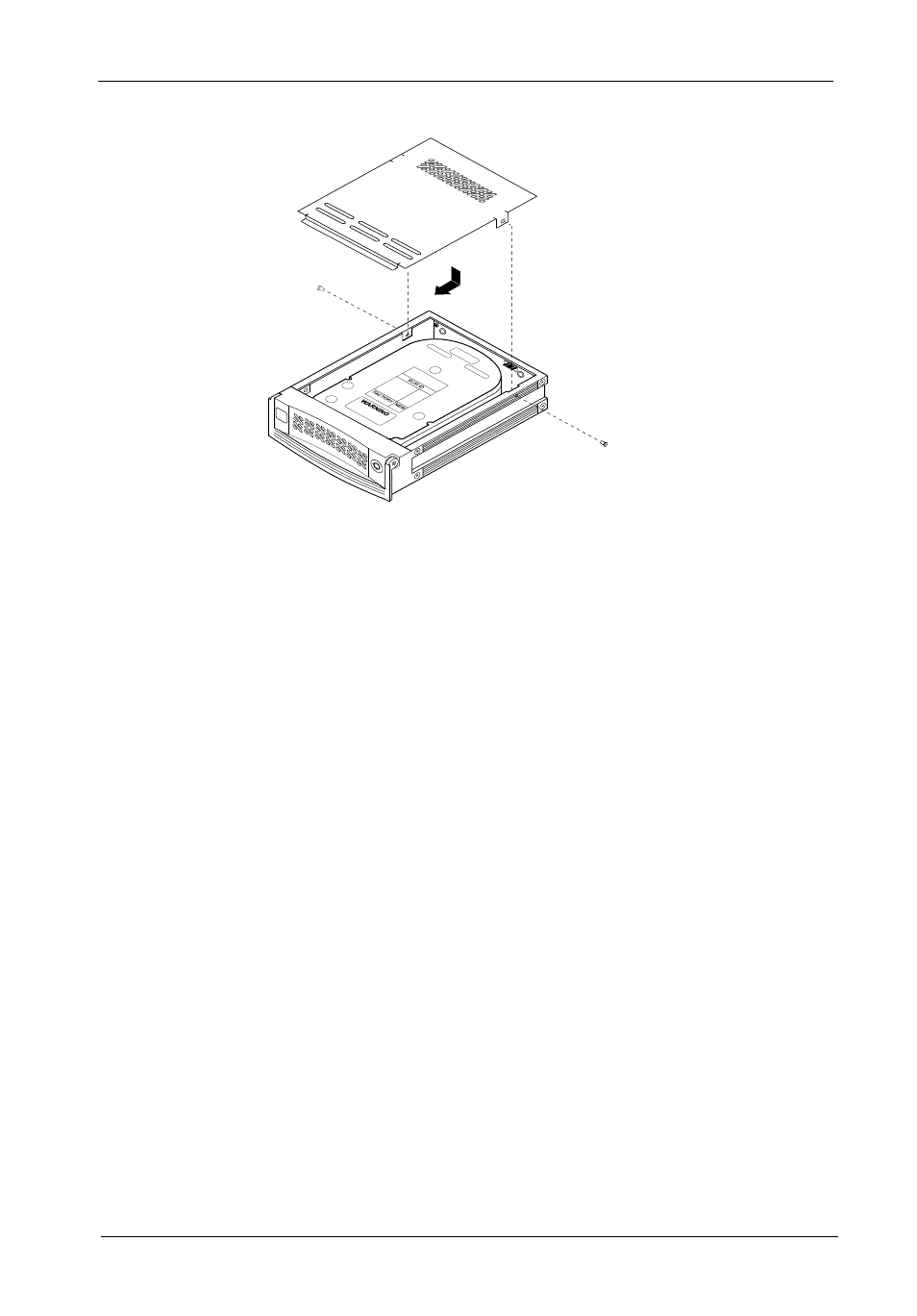

Figure 7: Drive Cover Installation
0836
2 Slide the cover
towards the back
of the carrier
1 Insert this end
into the carrier
first
3 Secure with #6-32
Phillips Flat Hd.
screws (2 Total)
Installing the Receiving Frame
NOTE: Use a #2 Phillips screwdriver for this procedure.
The drive should be installed into the carrier before installing the receiving frame into the
mounting bay of a computer or expansion chassis.
1. Turn OFF power to the computer.
2. Open the computer system according to the manufacturer’s instructions. If neces-
sary, temporarily remove any expansion boards that may make installation difficult.
3. With the drive carrier locked in place inside the receiving frame, install the DE110
into the 5.25” drive opening in the computer or expansion chassis. Use the appro-
priate guides to position the Data Express, and fasten it into place with the four (4)
#6-32 Phillips screws provided. Figure 8A illustrates the location of the mounting
holes. Mounting holes are provided on each side and the bottom of the receiving
frame to accommodate a variety of mounting configurations. Use the mounting holes
which best suit the computer or expansion chassis configuration. Note that bottom
mounting holes require self-tapping screws (not provided).
