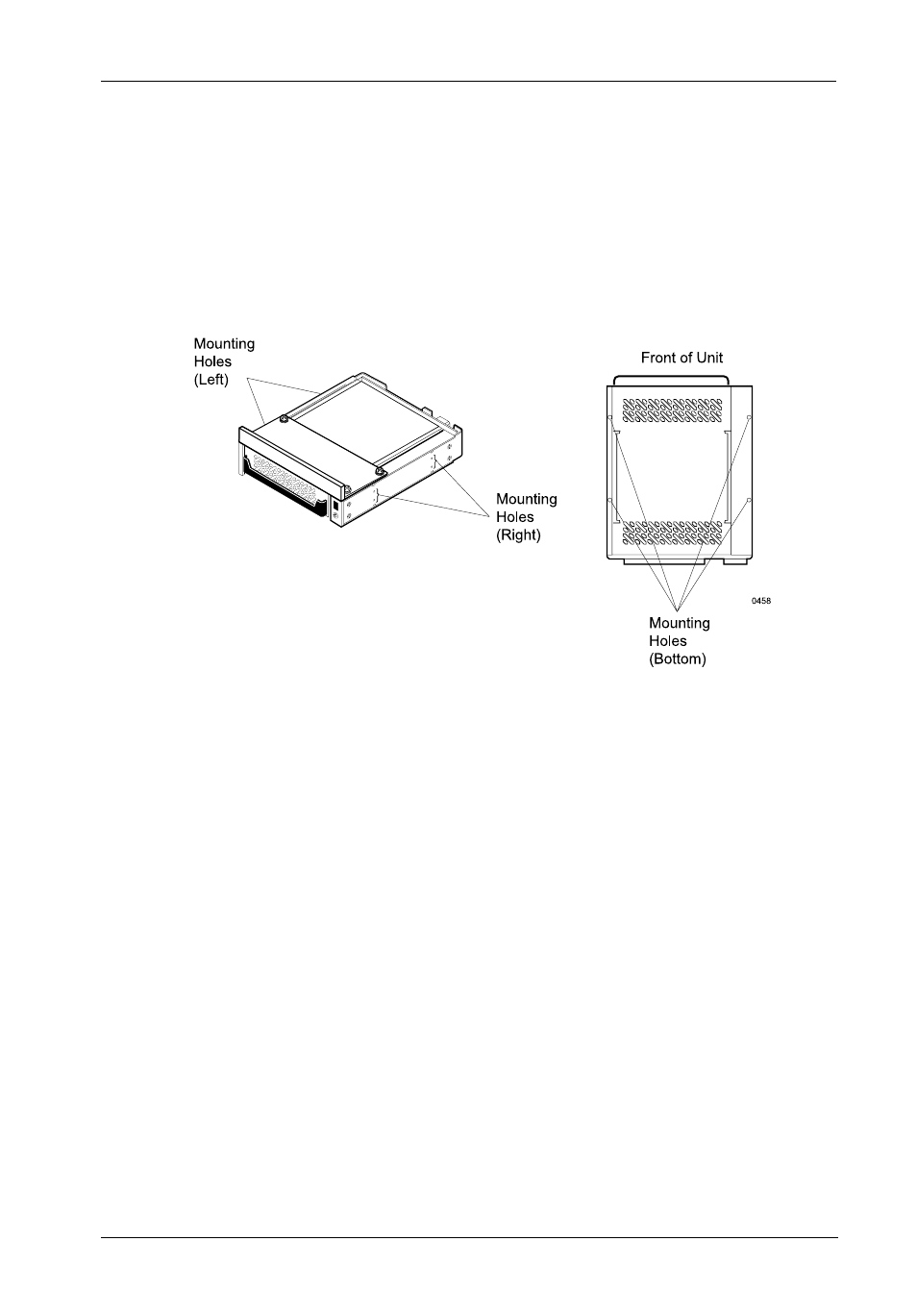

Figure 8: Receiving Frame Mounting Holes
5. Adjust the front of the receiving frame so the carrier slides freely in and out
on the receiving frame guides. The position of adjoining peripheral units may
require adjustment.
6. To connect a drive to a Remote Activity LED in the computer system or
expansion chassis, connect the appropriate cable(s) to the receiving frame
motherboard as shown in Figure 5. Connect Option Jumper Block Pins 11
and 12 to a remote activity LED.
7. Connect the I/O cable from the host adapter to the receiving frame. The Pin
1 indicator on the cable must be properly aligned. Refer to Figure 5 for the
correct Pin 1 location.
Make sure that only the last SCSI device is terminated. If the DE75i-SWC is
at the end of a daisy chain, the terminators on the receiving frame must be
enabled by removing the jumper at Option Pins 9 and 10. If the DE75i-SWC is
in the middle of a daisy chain, termination should be disabled (factory
setting, Figure 5).
4. With the drive carrier locked into place inside the receiving frame, install the
DE75i-SWC receiving frame into the drive opening in the computer or
expansion chassis. Use the appropriate guides to position the DE75i-SWC,
and fasten it into place with the four (4) #6-32 x 1/4” screws provided.
Figure 8 illustrates the location of the mounting holes. Mounting holes are
provided on each side and the bottom of the receiving frame to
accommodate a variety of mounting configurations. Use the mounting holes
which best suit the computer or expansion chassis configuration.
