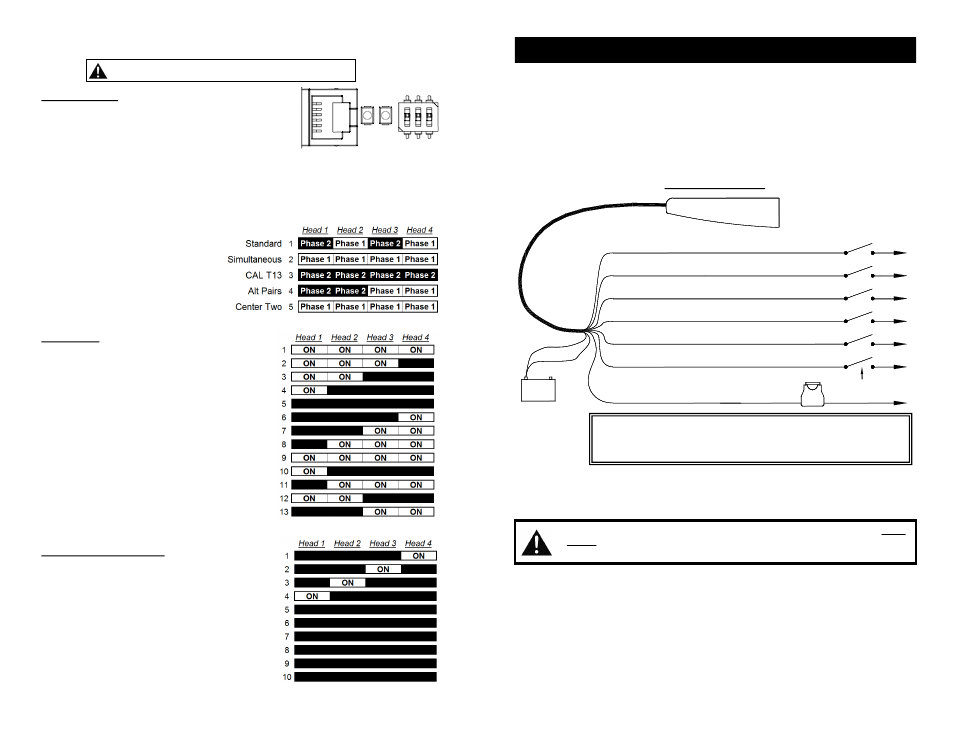

Phase Selection
(Programmable for Patterns 1-16 only)
Each flashing head has two Phases, an “On” phase and an
“Off” phase. You can program each head for either Phase,
allowing you to customize which heads flash On together
and which are Off together. This can be done for your
Level 1, Level 2, and Pursuit functions.
1. Connect the Red wire to power and the Black wire to
Ground.
2. Activate the function you wish to program by connecting
the corresponding wire to +12VDC.
3. Press and release the Phase
Programming button to scroll through
the five optional Phase variations.
4. Repeat for each function you wish to
program.
Programming (CONT'D)
Head Enable
This light also has the ability for the installer to select
which heads are active for any given function. You
may wish to de-activate several heads in your Level
1 Pattern to indicate less urgency. This option can
be programmed for any of the functions.
1. Connect the Red wire to power and the Black wire
to Ground.
2. Activate the function you wish to program by
connecting the corresponding wire to +12VDC.
3. Press and release the Head Enable Programming
button to scroll through the 13 optional variations.
4. Repeat for each function you wish to program.
Steady Head Programming
If your application requires one steady burn head,
proceed as follows:
1. Connect the Red wire to power and the Black wire
to Ground.
2. Connect the Yellow wire to power and press and
release the Phase button to scroll through the
various positions for the steady burn head. (Note:
patterns 5-10 have no steady burn head).
ON
CTS
1
2
3
Ph
as
e
Pr
o
g
ra
m
m
in
g
H
ea
d
En
ab
le
Pr
o
g
ra
m
m
in
g
Communication
Port
Pr
o
g
ra
m
M
o
d
e
H
ig
h
-L
o
w
/Pa
tte
rn
T
ra
ff
ic
D
ir
ec
to
r/
T
ak
ed
o
w
n
Please note: Because this is a 4-head unit, some options listed below will
appear identical to others and some options will disable ALL of the heads.
-4-
Wiring
For proper installation and full operability, this light requires a 20A ignition switched power
source, connections to the negative terminal of the battery, and 4-6 external switches rated
for a minimum 1A (user supplied).
These lights come with a pre-installed 8-conductor harness. In addition, the cable also
contains a bare drain wire and foil shielding.
Quick Wiring Guide
All wires connected to the positive terminal of the battery should be fused at the
battery for their rated load. Testing the light before this fuse is properly
installed will void the warranty on the light.
Please Note: When the red wire is connected to +12VDC the light will draw a
small current (2 mA). Occasionally vehicles may sit for extended
periods of time (i.e. more than a few days), thus we recommend that
the red wire be routed through an ignition switched power source.
+
-
BLACK
BARE
White w/Brown - Pursuit (Flashing White Lights)
Green w/Yellow - Takedowns (Steady Burn White)
Green w/Red - Pattern Select or Dim
Red - Ignition Switched +12VDC
User Supplied Switches
20 AMP
FUSE
Orange w/Red - Level 2 Flashing Warning Lights
Orange w/Green - Level 1 Flashing Warning Lights
+12VDC
+12VDC
+12VDC
+12VDC
+12VDC
+12VDC
Yellow - Steady Burn Head (Optional)
