-9-
Operating Instructions
Main control of this light is done though the wires in the harness. They should be connected
to +12VDC through several switches (user supplied) as described in the Wiring section.
Level 1 Flashing Mode (Orange w/Green)
This is usually intended as a slower, less urgent mode typically used when parked. The
colored lights will flash in the pattern you have them programmed for. If Pursuit Mode is
activated, those lights will continue to flash.
Level 2 Flashing Mode (Orange w/Red)
This mode is intended for high-urgency situations, such as a high speed chase, requiring
significant warning power. It is usually a faster pattern than Level 1. The colored lights
will flash in the pattern you have them programmed for. Level 2 will override Level 1
lights. If Pursuit Mode is activated, those lights will continue to flash.
Dim Option
DIM (Green w/Red)
If the High-Low/Pattern Option is set for High-Low (see page 5), then applying +12VDC
will dim the light (typically used in nighttime applications).
Pursuit Mode (White w/Brown)
Usually activated when in pursuit of another vehicle. The white lights will flash in the
pattern you have them programmed for.
Takedowns (Green w/Yellow)
These are steady burn white lights typically used to illuminate the scene once a vehicle
has been pulled over. This mode will override all others, stopping all flashing for heads
that have Takedown mode enabled.
California Title 13 (Yellow)
When activated, the preprogrammed Red light will be activated in a steady burn mode.
Burst Mode (Green w/Yellow and Green w/Red)
Please Note: This mode is only available in Takedown Mode AND if you have the High-
Low Option disabled (see High-Low page 5 and the Dim Option section below).
This mode will temporarily “burst” the steady burn lights (typically white) into an “extra
bright” mode for 30 seconds. A 30 second cool down period is then required before the
Burst Mode can be activated again.
-2-
Please Note: Every Half Phantom™ comes with a standard baffle included.
The 274-ULB10-CH and 274-ULB10-CH11 kits also include a
separate baffle that is specifically designed to fit the indicated
vehicles. It should be used in place of the standard baffle included.
There are several optional mounting brackets that can be used to mount your Half
Phantom ™. Your light comes with the one that was selected at the time the light was
ordered. Please review the separate mounting instructions that are included, based upon
the mounting option that was selected.
274-ULB10-U1 Universal Mounting Kit
274-ULB10-CH 2006-2010 Dodge Charger
2007-2008 Dodge Magnum
2009 Dodge Ram
274-ULB10-CH11 2011-2014 Dodge Charger
274-ULB10-CP 2011-2013 Chevrolet Caprice
274-ULB10-CV 2006-2011 Ford Crown Victoria
2009 Ford F150 and F250
274-ULB10-EX 2006-2013 Ford Explorer
2007-2013 Ford Expedition
274-ULB10-IM 2008-2013 Chevrolet Impala
274-ULB10-INT 2012-2013 Ford Interceptor (Taurus)
274-ULB10-RM 2012-2013 Dodge Ram 1500
274-ULB10-TA 2007-2013 Chevy Tahoe
2007-2013 Chevy Yukon
2007-2011 Chevy Suburban
Mounting
G A SKET C URV ED UP

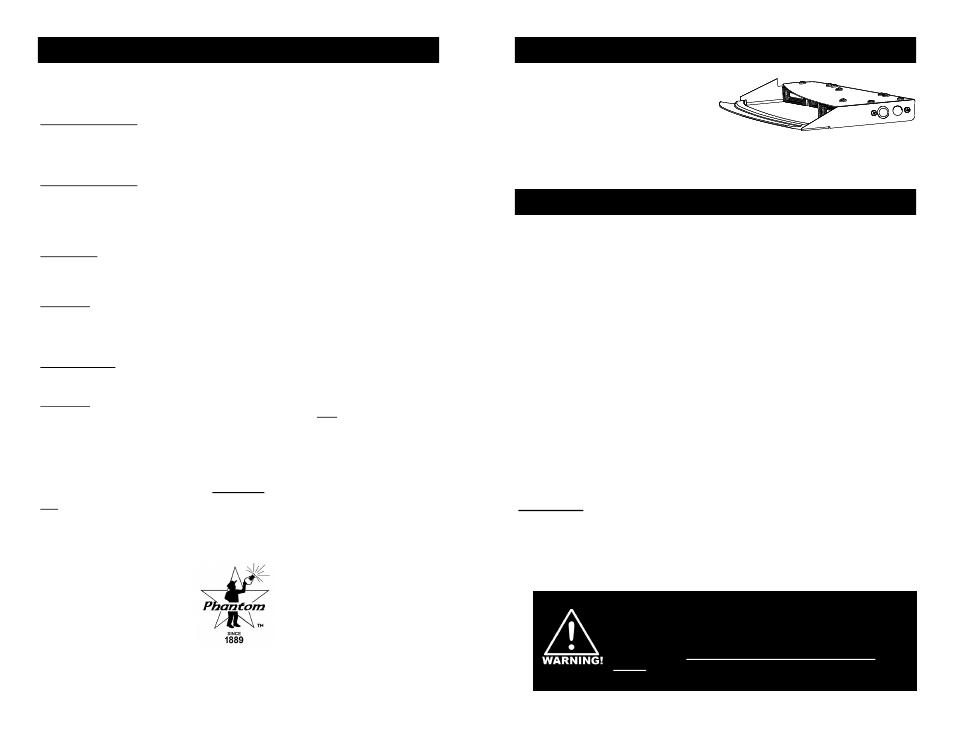

Gasket Installation
1. Before installing any of the brackets, slide
the enclosed rubber channel over the
front edge of the baffle.
2. Install the gasket such that it curves
upward as pictured to the right.
The Half Phantom ™ is designed to be mounted on the
inside of your vehicle. It is not intended for exterior
applications and is not warranted against water damage.
It is the sole responsibility of the owner to ensure the warning
light is secure. Check your light every time you enter the
vehicle to ensure that it is mounted securely. The manufacturer
assumes no responsibility for the secure mounting of this light.
