(Pictured above is one example of a bar with four linear strobe heads)
Activating the Front and Rear Strobes Separately
If you would like the ability to switch the Front Strobes On and Off separate from the Rear
Strobes, connect the White w/Green Stripe wire to the switch that will activate your Front
Strobes, and connect the Black w/Green Stripe wire to the switch that will activate your Rear
Strobes.
The Red wire must be connected to constant +12VDC.
Please Note:
When the red wire is connected to +12VDC the pack will draw a small
current (50 mA). If your vehicle will be sitting for extended periods of time
(i.e. more than a few days), it is recommended this wire be routed through a
switch.
Note: If you have power to both White w/Green and Black w/Green, #1 & #4 will flash together
alternating with #2 & #3. For two outlet packs, the two heads will alternate.
Proceed to the Pattern Selection section on page 10 to program the flash pattern of your strobe
pack.
Lightbars with Two or Four Linear Strobe Heads (cont'd)
4
3 1
2

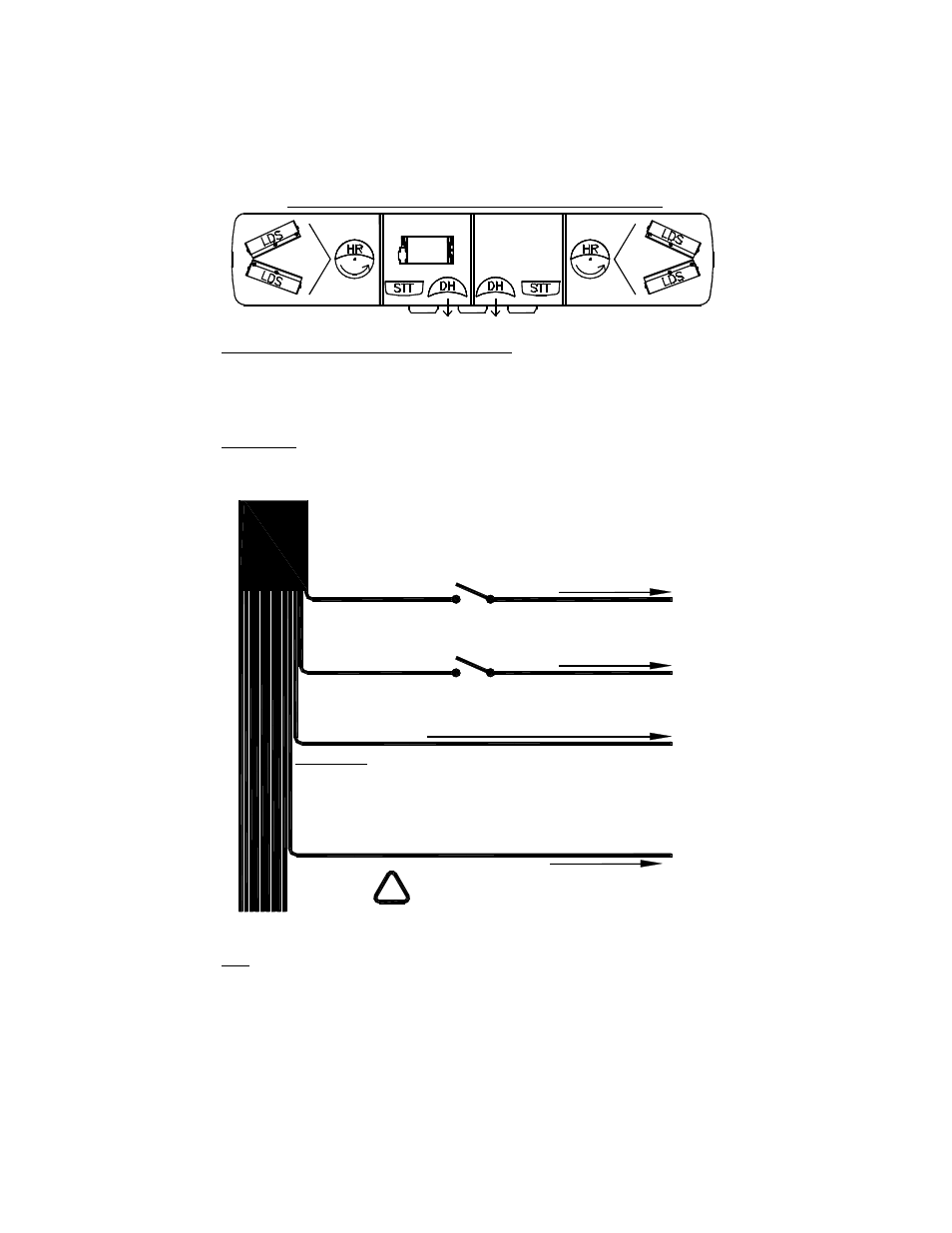

RP249-L
Front Strobes
On/Off Switch
Rear Strobes
On/Off Switch
CONNECT TO CONSTANT +12 VDC
DO NOT PERMANENTLY CONNECT Red
w/Green Stripe TO +12VDC!!!
Please Note: When the Red wire is connected to +12VDC the pack will
draw a small current (50 mA). If your vehicle will be sitting for extended
periods of time (i.e. more than a few days), it is recommended the Red wire
be routed through a switch.
Red w/Green
!
Red
H
a
rn
e
s
s
fr
o
m
L
ig
h
tb
a
r
Black w/Green
White w/Green
Touch and Release To
+12VDC to Change Pattern
CONNECT
TO +12 VDC
CONNECT
TO +12 VDC
