-5-

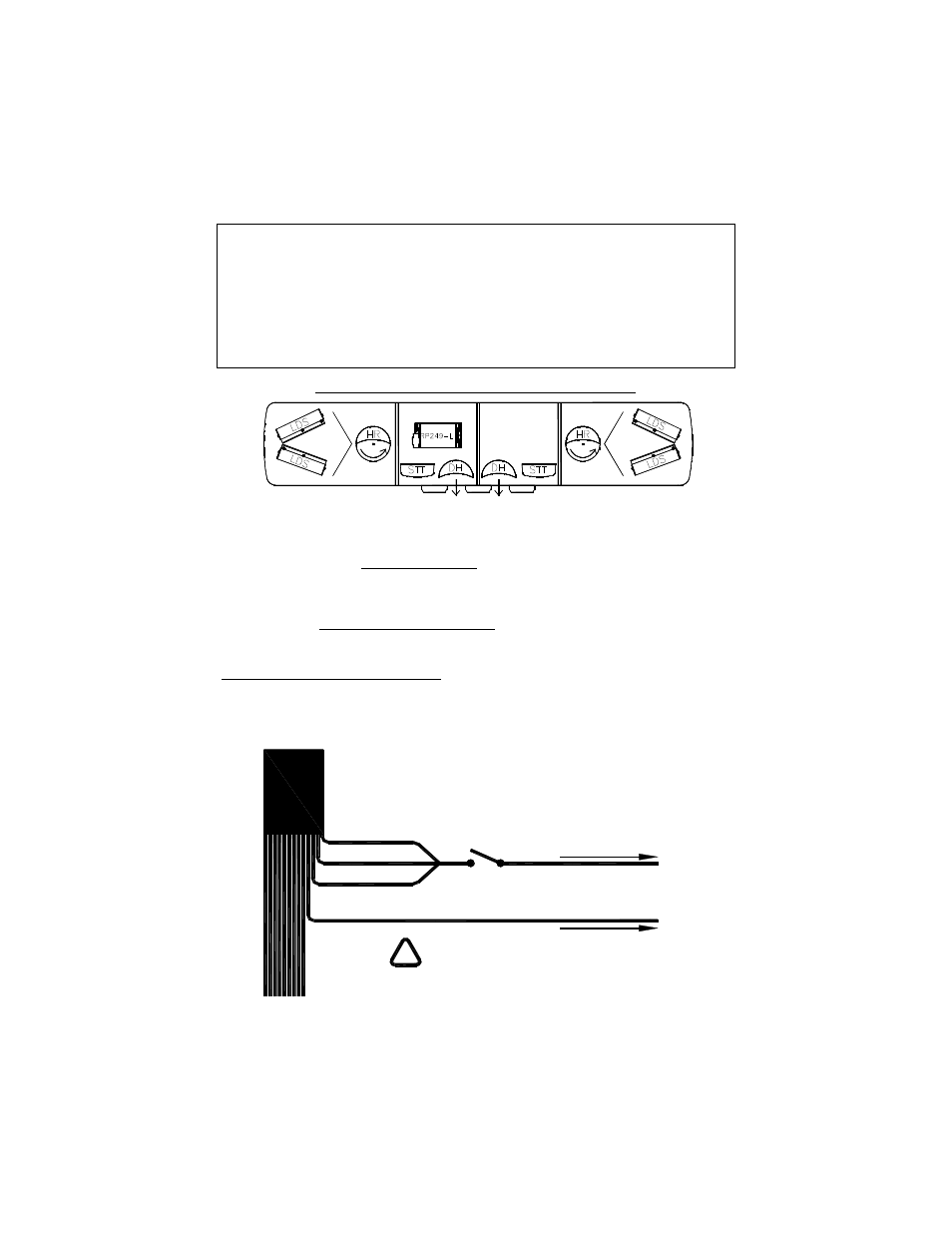

Remote Strobe Power Supply Connections For Linear Strobe Heads
Lightbars with Two or Four Linear Strobe Heads
(Pictured above is one example of a bar with four linear strobe heads)
Four wires in your cable harness control the strobe power supply and the strobe heads connected
to it. The functions of those wires are as follows:
Connect to +12VDC
Red - Power to the strobe power supply
White w/Green Stripe - On/Off control for Front Linear Strobe Heads
Black w/Green Stripe - On/Off control for Rear Linear Strobe Heads
Touch and release to +12VDC
Red w/Green Stripe - Pattern Select
Activating All Strobe Heads Together
(MOST APPLICATIONS)
To turn on all four heads connected to the power supply together, connect the Red, White w/
Green Stripe, and Black w/Green Stripe wires together through your switch. When the
switch is thrown, all of your strobes will flash. (#1 & #4 will alternate with #2 & #3)
If your lightbar DOES NOT contain linear strobe heads, you can skip to page 10.
If your lightbar contains linear strobe heads, follow the instructions on pages 5-9 for proper
wiring of the strobe power supply. Please note that any additional lights in your lightbar
must also be connected to +12VDC through a switch. This section only discusses the
proper wiring of the strobe power supplies. For each strobe head configuration, you will be
shown two ways to wire the lightbar:
1. All strobe heads turn On and Off together
2. Separate activation of Front and Rear facing strobe heads
Proceed to the Pattern Selection section on page 10 to program the flash pattern of your strobe
pack.
1
2
4
3
On/Off
SWITCH
DO NOT PERMANENTLY
CONNECT Red w/Green
Stripe TO +12VDC!!!
!
Red w/Green
H
a
rn
e
s
s
fr
o
m
L
ig
h
tb
a
r
White w/Green
Black w/Green
Red
Touch and Release To
+12VDC to Change Pattern
CONNECT
TO +12 VDC
