Setting up your TV combo 9
Connecting a Dolby Digital decoder
You can connect your TV combo to an amplifier equipped with a Dolby
®
Digital decoder or processor to listen to DVD audio in surround sound.

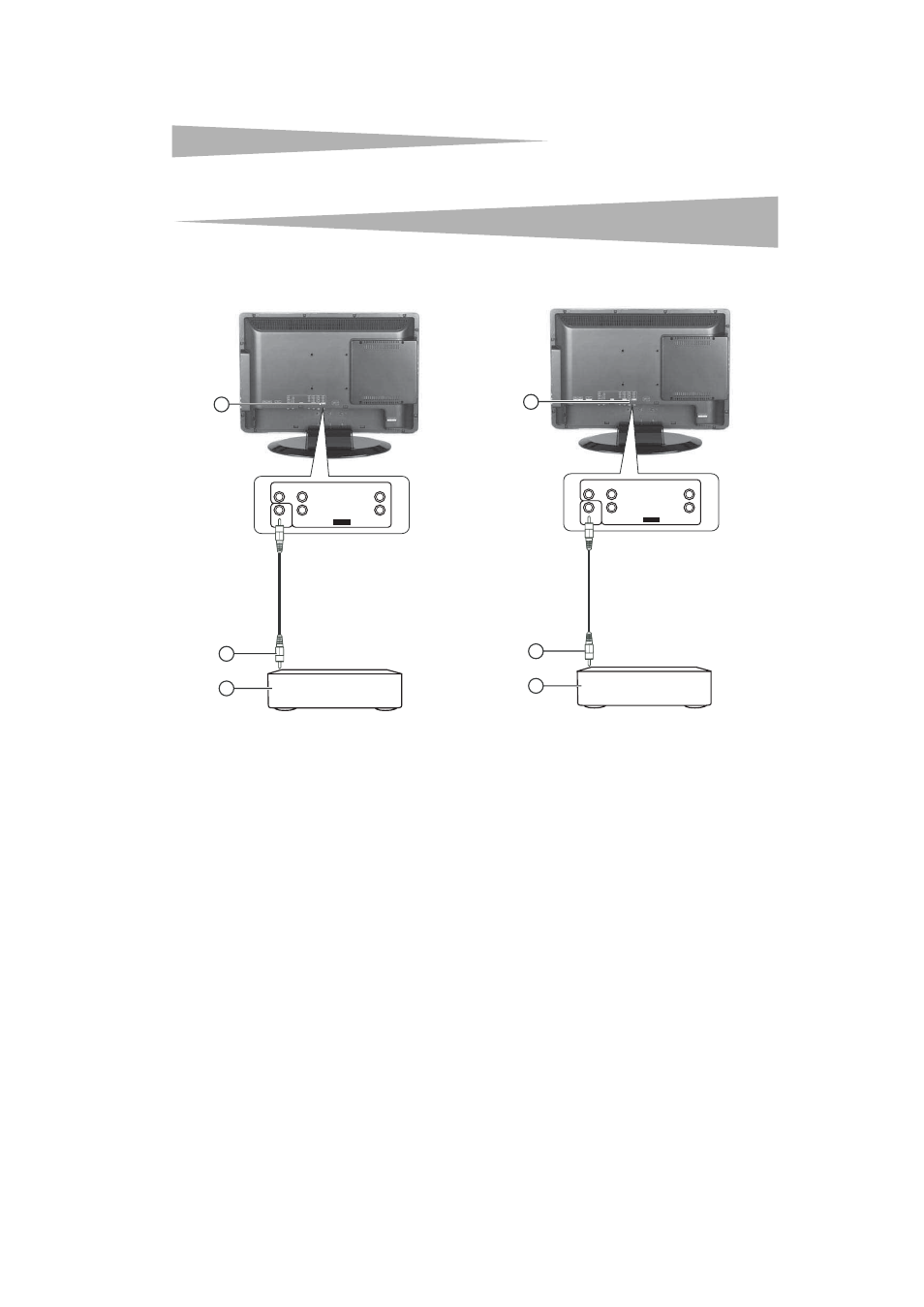

To connect to an amplifier equipped with a Dolby Digital decoder:
1 Remove the port cover on the back of your TV combo.
2 Plug a coaxial cable (2) into the Dolby Digital jack on the amplifier
(1) and into the COAXIAL OUTPUT jack (3) on the back of your
TV combo.
Connecting a DTS decoder
You can connect your TV combo to an amplifier equipped with a DTS
decoder or processor to listen to DVD audio or audio CDs in DTS sound.
To connect to an amplifier equipped with a DTS decoder:
1 Remove the port cover on the back of your TV combo.
2 Plug a coaxial cable (2) into the DTS jack on the amplifier (1) and
into the COAXIAL OUTPUT jack (3) on the back of your TV combo.
3
C B / P B
Y C R / P R
L
R
INPUT
AUDIO
COAXIAL
2
1 Amplifier with Dolby Digial decorder
3
2
1
C B / P B
Y C R / P R
L
R
INPUT
AUDIO
COAXIAL
Amplifier with DTS decoder
