Setting up your TV combo
Connecting an MPEG audio decoder
You can connect your TV combo to an amplifier equipped with a MPEG
decoder or processor to listen to DVDs in MPEG2 sound.
To connect to an amplifier equipped with an MPEG audio decoder:
1 Remove the port cover on the back of your TV combo.

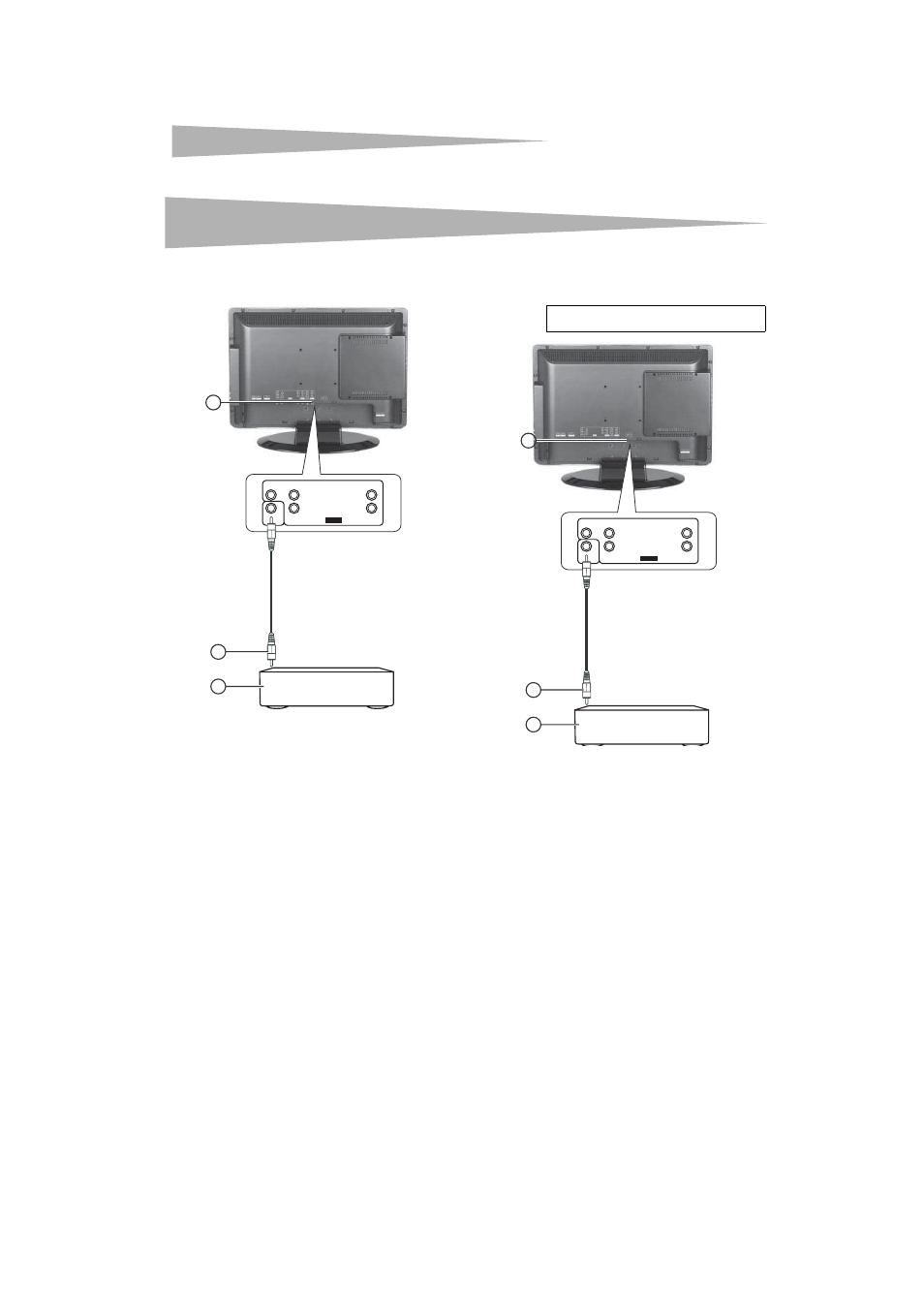

2 Plug a coaxial cable (2) into the amplifer (1) and into the COAXIAL
OUTPUT jack (3) on the back of your TV combo.
Connecting a digital audio input
You can connect your TV combo to a 2-channel digital amplifier to listen
to 2-channel sound.
To connect to an amplifier equipped with a digital audio input:
1 Remove the port cover on the back of your TV combo.
2 Plug a coaxial cable (2) into the amplifier (1) and into COAXIAL
OUTPUT jack (3) on the back of your TV combo.
C
B /
P
B
Y
C
R /
P
R
L
R
INPUT
AUDIO
COAXIAL
3
2
1
Amplifier with MPEG2 audio decoder
Note
PCM audio is limited to DVD or CD playback.
