Sioux Tools SDR6P - Manual (Page 30)

Form ZCE772B 30 Date 2013November5/B
1. 21019B 1/4" Chuck
2. 44122 Chuck Spacer
3. SDR-74 Motor Retainer
4. 10257 Ball Bearing
5. 74038 Front End Plate
6. 74031 Cylinder (18,000 RPM)
74030 Cylinder (21,000 RPM)
7. 74026 Rotor
8. SP74048 Vane Set
9. 74023 Rear End Plate
10. 41338 Wave Washer
11. 10253 Ball Bearing
12. 74054 Washer
13. 74055 Screw
14. SDR-1 Pistol Non-Reversing Housing
15. SPSDR-28 Grip (Includes Grip Tape)
16. 30610 Roll Pin 5/64 x 3/4 in
17. 21542 Retaining Ring
18. 14311 O-Ring
19. SDR-23 Trigger Sleeve
20. SDR-200 Trigger
21. 04046 Silencer Pad (2)*
22. IM3100-22 Tipper Valve Seat
23. SDR-20 Tipper
24. SDR-13 Trigger Spring
25. 69007 O-Ring
26. SDR-35 Exhaust Cap
27. 66244R Inlet Adapter
Not Shown:
SPSDR-1A 1HP Non-Reversing Housing Assembly
(Includes Figures 14-27)
30000 Chuck Key

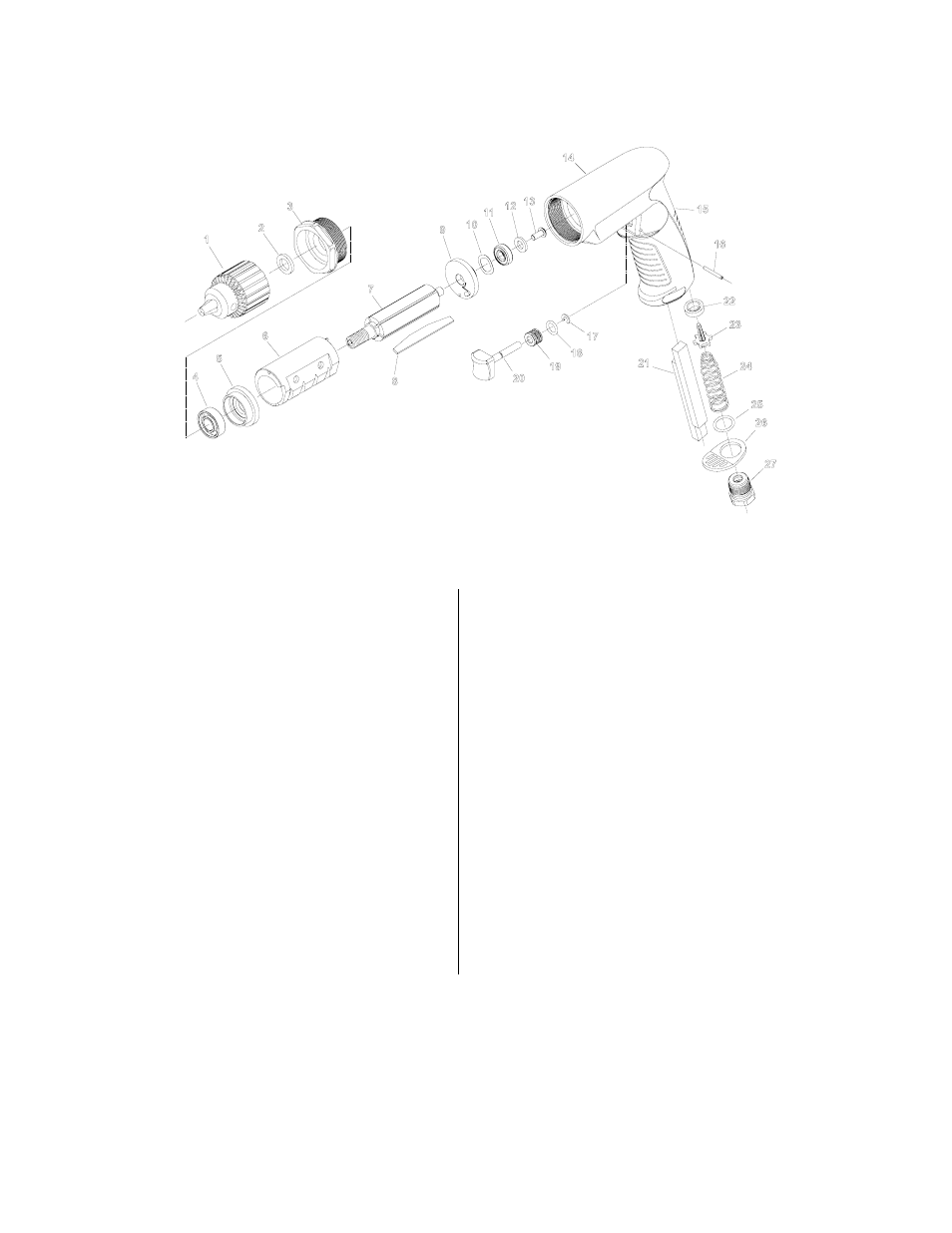

PARTS LIST FOR SDR10P SERIES DRILLS
NON-REVERSING HIGH SPEED
SERIAL “C”
*Order Quantity As Required
FURNISH CATALOG, SERIAL, AND MODEL NUMBER
WHEN ORDERING PARTS
Fig. Part
No. No. Description Fig. Part
No. No. Description
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
1
4
2
3
24
26
25
27
