Form ZCE772B 24 Date 2013November5/B
8
9
10
1
6 7
4
5
2
3
11
13
14
15
16
17
12
18
27
25
26
19
20
21
22
23
24
28 29
6
12
40
30
31
35
36
37
38
33
39
32
34
41
42
43 44
45
46
47
48
49
50

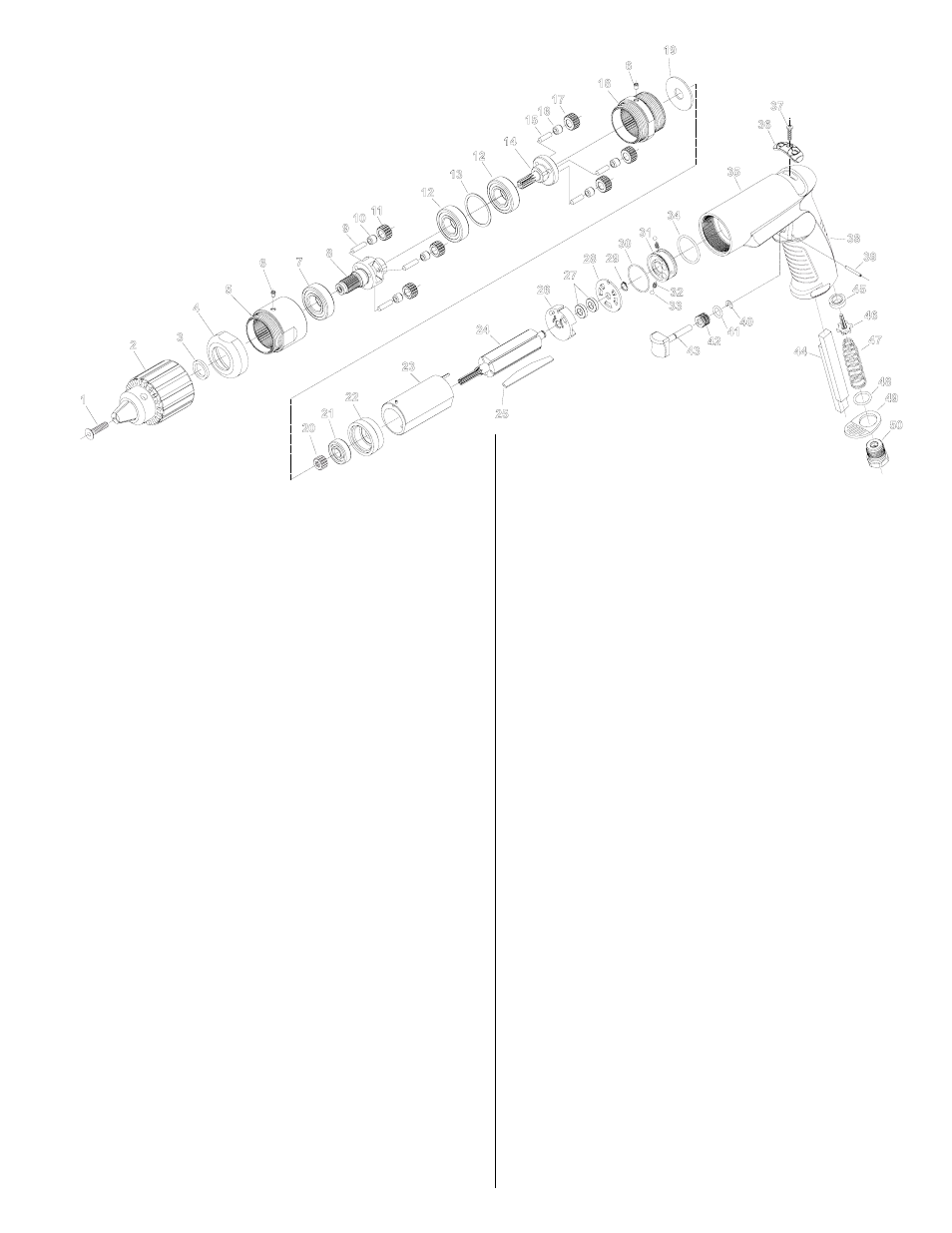

PARTS LIST FOR SDR10P STANDARD REVERSING
SERIES DRILLS
DOUBLE REDUCTION
SERIAL “C”
Fig. Part
No. No. Description
Fig. Part
No. No. Description
1. 57250R Chuck Screw
2. 21131 3/8" Chuck (for model numbers ending with 3)
74222 1/2" Chuck (for model numbers ending with 4)
PDR5000-2 1/2" Keyless Chuck
(for model numbers ending with RK4)
3. 35798 Washer
4. SDR-43 Gear Case Cap
5. SDR-42 Double Reduction Gear Case (Includes Figure 6)
6. 30375 Grease Fitting (2)*
7. 10265 Ball Bearing
8. SDR-65 Gear Carrier (1/2" thread)(300, 700 & 500 RPM)
SDR-68 Gear Carrier (1/2" thread)(1200 RPM)
9. SDR-24 Pin (3)*(300, 700 & 500 RPM)
30062 Pin (3)*(1200 RPM)
10. 10028FC Needle Bearing (3)*(300, 700 & 500 RPM)
10040 Needle Bearing (3)*(1200 RPM)
11. SDR-45 Planetary Gear (3)*(300, 700 & 500 RPM)
SDR-46 Planetary Gear (3)*(1200 RPM)
12. ME11A33A Ball Bearing (2)*
13. SDR-27 Spacer
14. SDR-36 Cantilevered Gear Carrier (700 RPM)
SDR-37 Cantilevered Gear Carrier (500 RPM)
SDR-38 Cantilevered Gear Carrier (300 RPM)
SDR-39 Cantilevered Gear Carrier (1200 RPM)
15. SDR-24 Pin (3)* (300 & 500 RPM)
30062 Pin (3)*(700 & 1200 RPM)
16. 10028B Needle Bearing (3)*(300 & 500 RPM)
10040 Needle Bearing (3)*(700 & 1200 RPM)
17. SDR-44 Planetary Gear (3)*(300 RPM)
SDR-45 Planetary Gear (3)*(500 RPM)
SDR-46 Planetary Gear (3)*(700 & 1200 RPM)
18. SDR-41 First Reduction Gear Case (Includes Figure 6)
19. SDR-29 Wear Plate
20. SDR-47 Sun Gear (700 & 1200 RPM)
21. 10220 Ball Bearing
22. SDR-80 Front End Plate
23. SP74130 Cylinder, Reversing
24. SDR-7 Rotor (7 tooth)(300, 700 & 1200 RPM)
SDR-8 Rotor (10 tooth)(500 RPM)
25. SP74048 Vane Set
26. SDR-11 Rear End Plate
27. SDR-26 Ball Bearing (2)*
28. SDR-10 Reversing Plate
29. 21491 Retaining Ring
30. 69017 O-Ring
31. SPSDR-9 Reversing Manifold (Includes Figures 30 thru 34)
32. ME1A189 Spring (2)*
33. ME9A14 Steel Ball (2)*
34. 04215 O-Ring
35. SPSDR-2 Pistol Reversing Housing
(Includes Figures 30 thru 34)
36. SDR-16 Reversing Shuttle
37. SDR-12 Reversing Mechanism Screw
38. SPSDR-28 Grip (Includes Grip Tape)
39. 30610 Roll Pin 5/64 x 3/4 in
40. 21542 Retaining Ring
41. 14311 O-Ring
42. SDR-23 Trigger Sleeve
43. SDR-200 Trigger
44. 04046 Silencer Pad (2)*
45. IM3100-22 Tipper Valve Seat
46. SDR-20 Tipper
47. SDR-13 Trigger Spring
48. 69007 O-Ring
49. SDR-35 Exhaust Cap
50. 66244R Inlet Adapter
Not Shown:
SPSDR-7AR 7 Tooth Rotor 1HP Motor Assembly
(300, 700 & 1200 RPM)(Includes Figures 21 thru 29)
SPSDR-8AR 10 Tooth Rotor Motor Assembly
(500 RPM)(Includes Figures 21 thru 29)
SPSDR-2A Reversing Housing Assembly
(Includes Figures 30 thru 50)
77067A Support Handle Assembly
SPSDR-65A Gear Carrier Assembly (1/2" thread)
(300, 700 & 500 RPM)(Includes Figures 7 thru 11)
SPSDR-68A Gear Carrier Assembly (1/2" thread)
(1200 RPM)(Includes Figures 7 thru 11)
SPSDR-36A Cantilevered Gear Carrier Assembly (700 RPM)
(Includes Figures 12 thru 17)
SPSDR-37A Cantilevered Gear Carrier Assembly
(500 RPM)(Includes Figures 12 thru 17)
SPSDR-38A Cantilevered Gear Carrier Assembly
(300 RPM)(Includes Figures 12 thru 17)
SPSDR-39A Cantilevered Gear Carrier Assembly
(1200 RPM)(Includes Figures 12 thru 17)
30002 Chuck Key 3/8"
30429 Chuck Key 1/2"
*Order Quantity As Required
FURNISH CATALOG, SERIAL, AND
MODEL NUMBER
WHEN ORDERING PARTS
