Sioux Tools SDR6P - Manual (Page 25)

Form ZCE772B 25 Date 2013November5/B
27
26
8
9
10
7
11
1
6
4
5
2
3
13
14
15
16
17
12
18
19
6
12
31
35
36
33
32
34
28
29
30
38
37
39
40
41 42
43
44
45
46
47
48
25
20
21
22
23
24

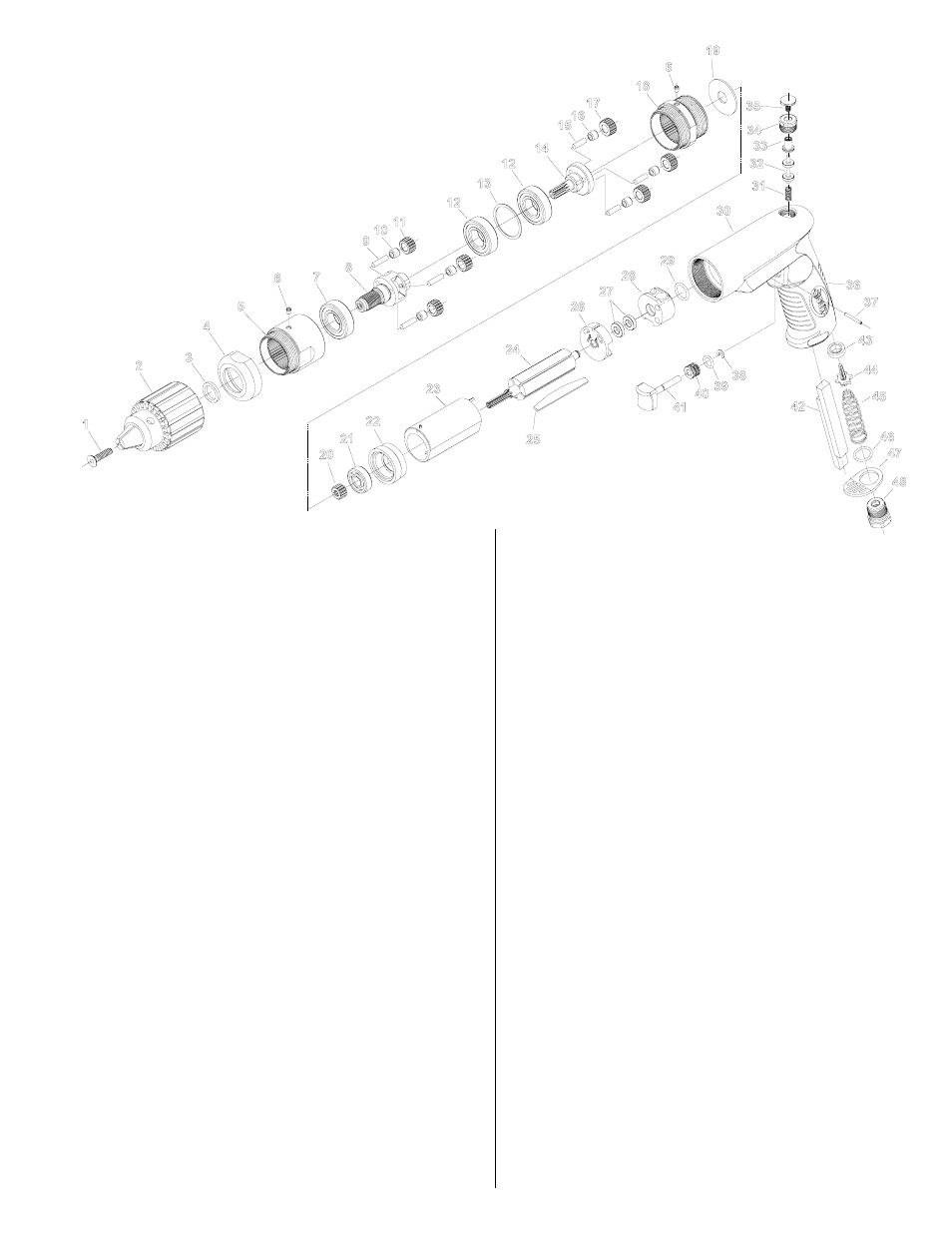

PARTS LIST FOR SDR6P & SDR10P RAPID REVERSING
SERIES DRILLS DOUBLE REDUCTION
SERIAL “C”
Fig. Part
No. No. Description Fig. Part
No. No. Description
1. 57250R Chuck Screw
2. PDR5000-2 1/2" Keyless Chuck
3. 35798 Washer
4. SDR-43 Gear Case Cap
5. SDR-42 Double Reduction Gear Case (Includes Figure 6)
6. 30375 Grease Fitting (2)*
7. 10265 Ball Bearing
8. SDR-65 Gear Carrier (1/2" thread)(700 RPM)
9. SDR-24 Pin (3)*(700 RPM)
10. 10028FC Needle Bearing (3)*(700 RPM)
11. SDR-45 Planetary Gear (3)*(700 RPM)
12. ME11A33A Ball Bearing (2)*
13. SDR-27 Spacer
14. SDR-36 Cantilevered Gear Carrier (700 RPM)
15. 30062 Pin (3)*(700 RPM)
16. 10040 Needle Bearing (3)*(700 RPM)
17. SDR-46 Planetary Gear (3)*(700 RPM)
18. SDR-41 First Reduction Gear Case (Includes Figure 6)
19. SDR-29 Wear Plate
20. SDR-47 Sun Gear (700 RPM)
21. 10220 Ball Bearing
22. SDR-80 Front End Plate
23. 74130 Cylinder, Reversing (SDR10P Models)
74134 Cylinder, Reversing (SDR6P Models)
24. SDR-7 Rotor (SDR10P Models)
SDR-77 Rotor (SDR6P Models)
25. SP74048 Vane Set (SDR10P Models)
SP74049 Vane Set (SDR6P Models)
26. SDR-11 Rear End Plate
27. SDR-26 Ball Bearing (2)*
28. SDR-82 Rapid Reverse Insert
29. 69007 O-Ring Parker 3-906
30. SDR-2B Pistol Reversing Housing (SDR10P Models)
SDR-33B Pistol Reversing Housing (SDR6P Models)
31. SDR-84 Reversing Spring
32. SDR-83 Reverse Valve Spool
33. SDR-88 Top Reverse Button
34. SDR-85 Top Reverse Nut
35. SDR-86 Top Reverse Cap
36. SPSDR-28 Grip (Includes Grip Tape)
37. 30610 Roll Pin 5/64 x 3/4 in
38. 21542 Retaining Ring
39. 14311 O-Ring
40. SDR-23 Trigger Sleeve
41. SDR-200 Trigger
42. 04046 Silencer Pad
43. IM3100-22 Tipper Valve Seat
44. SDR-20 Tipper
45. SDR-13 Trigger Spring
46. 69007 O-Ring
47. SDR-35 Exhaust Cap
48. 66244R Inlet Adapter
Not Shown:
SPSDR-7ARR Motor Assembly (SDR10P7XX Models)
(Includes Figures 21 thru 27)
SPSDR-77ARR Motor Assembly (SDR6P7XX Models)
(Includes Figures 21 thru 27)
SPSDR-2BA Rapid Reversing Housing Assembly
(SDR10P Models)(Includes Figures 28 thru 48)
SPSDR-33BA Rapid Reversing Housing Assembly
(SDR6P Models)(Includes Figures 28 thru 48)
SPSDR-65A Gear Carrier Assembly (1/2" Thread)
(Includes Figures 7 thru 11)
SPSDR-36A Cantilevered Gear Carrier Assembly
(Includes Figures 12 thru 17)
77067A Support Handle Assembly
*Order Quantity As Required
FURNISH CATALOG, SERIAL, AND
MODEL NUMBER
WHEN ORDERING PARTS
